Hộp Modular đặt dưới bàn UTBUS-2xl
Mô tả ngắn
Mounts Under the Table
Modular Design
Hotline: 0918 642 886

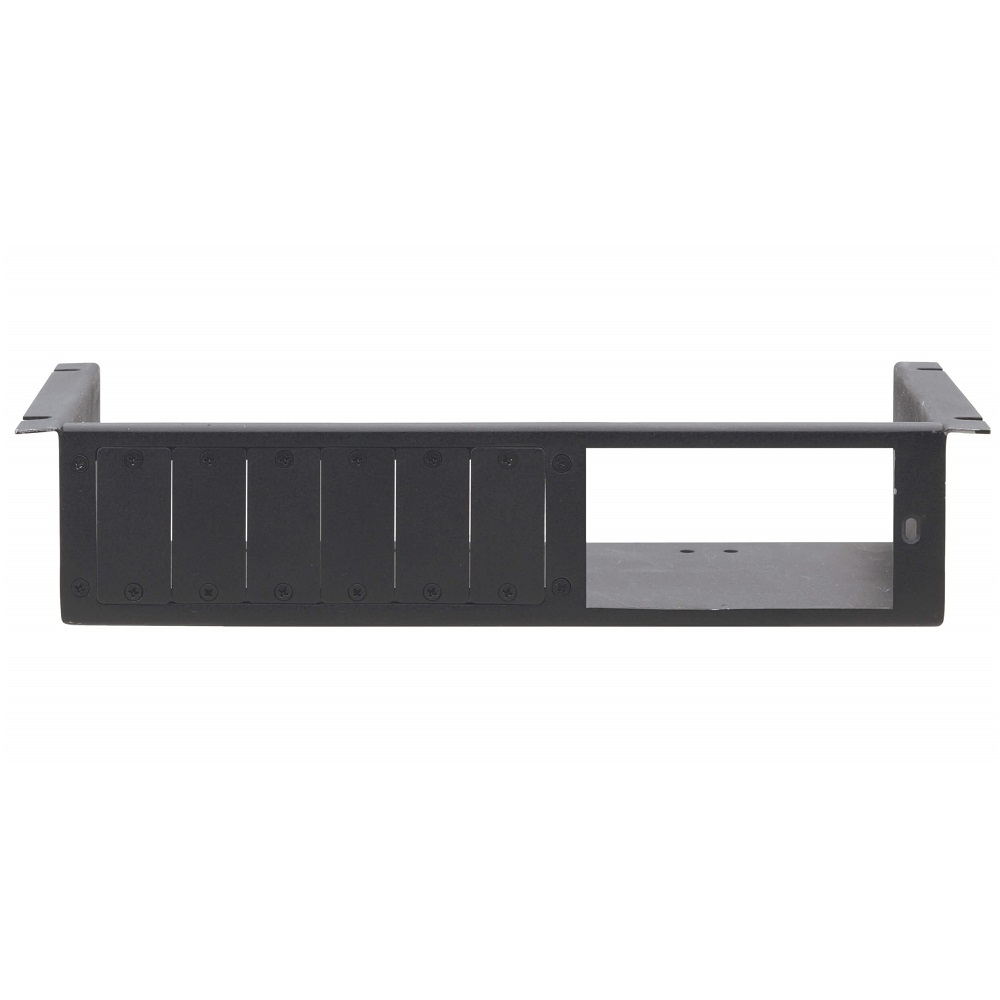

The UTBUS−2xl is a furniture−mounted modular connection bus that is easily installed underneath a wooden table or podium top. It has six slots for wall plate inserts and dual power socket openings.
NOTE: The UTBUS enclosure, power socket, power cord & inserts are purchased separately.
-
- Power Sockets — 10 different "TS" dual power socket options are available to accommodate the power requirements worldwide. (Purchased separately).
-
- Power Cord — 8 different "C–AC" single power cords for each power socket. (Purchased separately).
-
- Insert Slots — 6.
-
- Installation Requirement — Requires 25.0cm x 13.7cm (9.84" x 5.4") of free space beneath the table.
-
- Weight — 0.7kg (1.54lbs) approx.
POWER SOURCE (AC POWER LIMITS)
-
Universal: 100–240V AC, 50/60Hz, 5A
-
USA: 100–240V AC, 50/60Hz, 5A
-
UK: 100–240V AC, 50/60Hz, 5A
-
Germany and EU: 100–240V AC, 50/60Hz, 5A
-
Belgium and France: 100–240V AC, 50/60Hz, 5A
-
South Africa: 100–240V AC, 50/60Hz, 5A
-
Australia: 100–240V AC, 50/60Hz, 5A
FUSE RATING
-
T 6.3A 250V
INCLUDED ACCESSORIES
-
Self locking ties, wood screws
OPTIONS
-
Passive wall plates and interfaces, power socket kits, power cord
PRODUCT DIMENSION
-
32.50cm x 10.20cm x 6.50cm (12.80" x 4.02" x 2.56" ) W, D, H
PRODUCT WEIGHT
-
0.8kg (1.7lbs) approx.
