RTBUS-27xl Round Table Connection Bus for Power Socket and Cable Pass–Throughs
Elegant in–table solution
Easy to install
Pop–up Lid

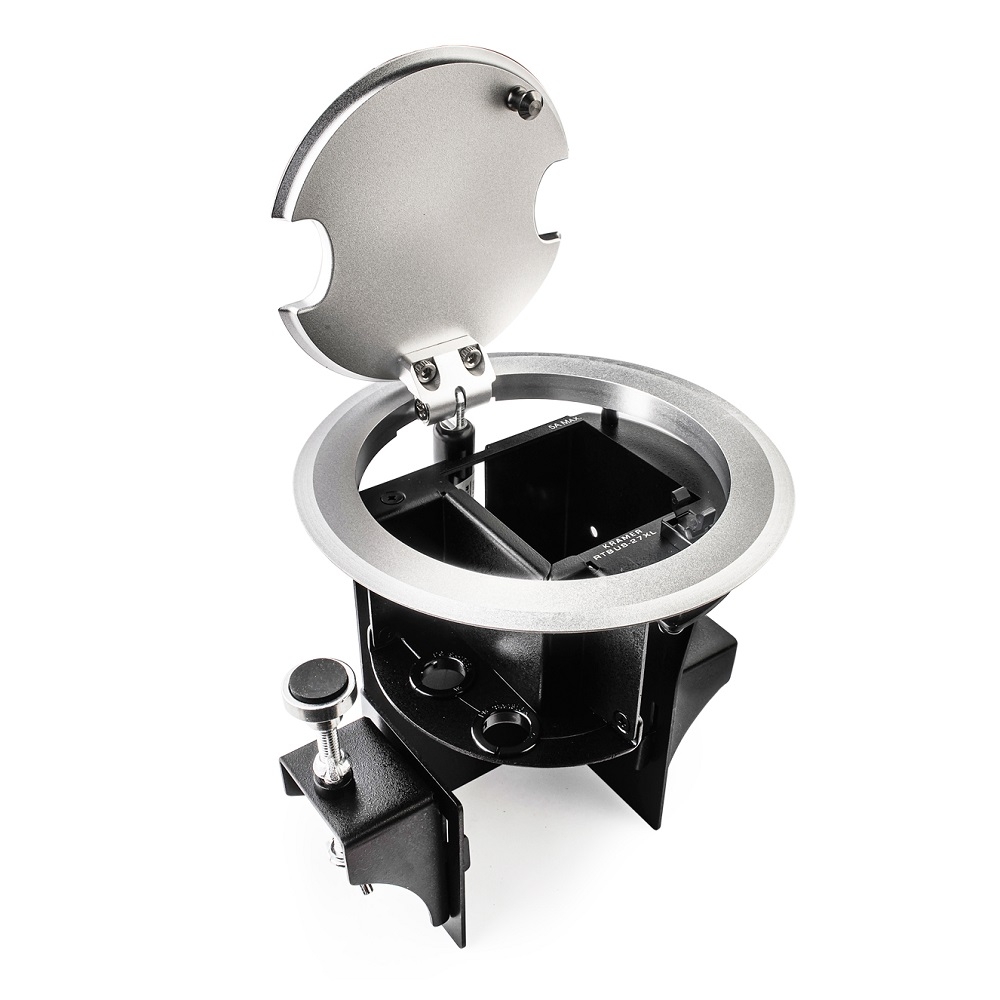

Kramer RTBUS 27xl is an elegant furniture−mounted, round connection bus that houses a power socket and two cable pass−throughs. RTBUS 27xl features a pneumatic lid mechanism for lifting and smooth closing and is easily installed into a table or podium top.
NOTE: The power socket, power cord and cables are purchased separately.
- Customizable — Houses any of the following power sockets: USA, UK, Germany (the Europlug), Belgium–France, Switzerland, Italy, Australia, Brazil, Israel, South Africa or “Universal” for use anywhere.
- Hidden Cable Pass–Throughs — Enable closing the lid while keeping two cables hidden and protected under the table surface.
- Cutout Size (Mount Dimension) — 111–114mm (4.37in to 4.49in) diameter.
MODEL |
DESCRIPTION |
RTBUS–27XL(B) |
Round Table Connection Bus — Sand–blasted Anodized Aluminum Top — Black |
RTBUS–27XL(BC) |
Round Table Connection Bus — Sand–blasted Anodized Aluminum Top — Silver |
EXTENDED USB
Cutout Size: 111–114mm (4.37in to 4.49in) diameter
POWER
Power rating varies according to the location and the power socket assembly (purchased separately) installed in the tbus, as follows:
Universal: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
USA: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Germany and EU: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Belgium and France: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Italy: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Australia: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
Israel: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
South Africa: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
Switzerland: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
England: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
Brazil: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
Fuse Rating: T 6.3A 250V
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE, UL
Environmental: RoHs, WEEE
COAX
Included: Clamp set
OPTIONAL
TBUS AC Power Cord, power socket kits
