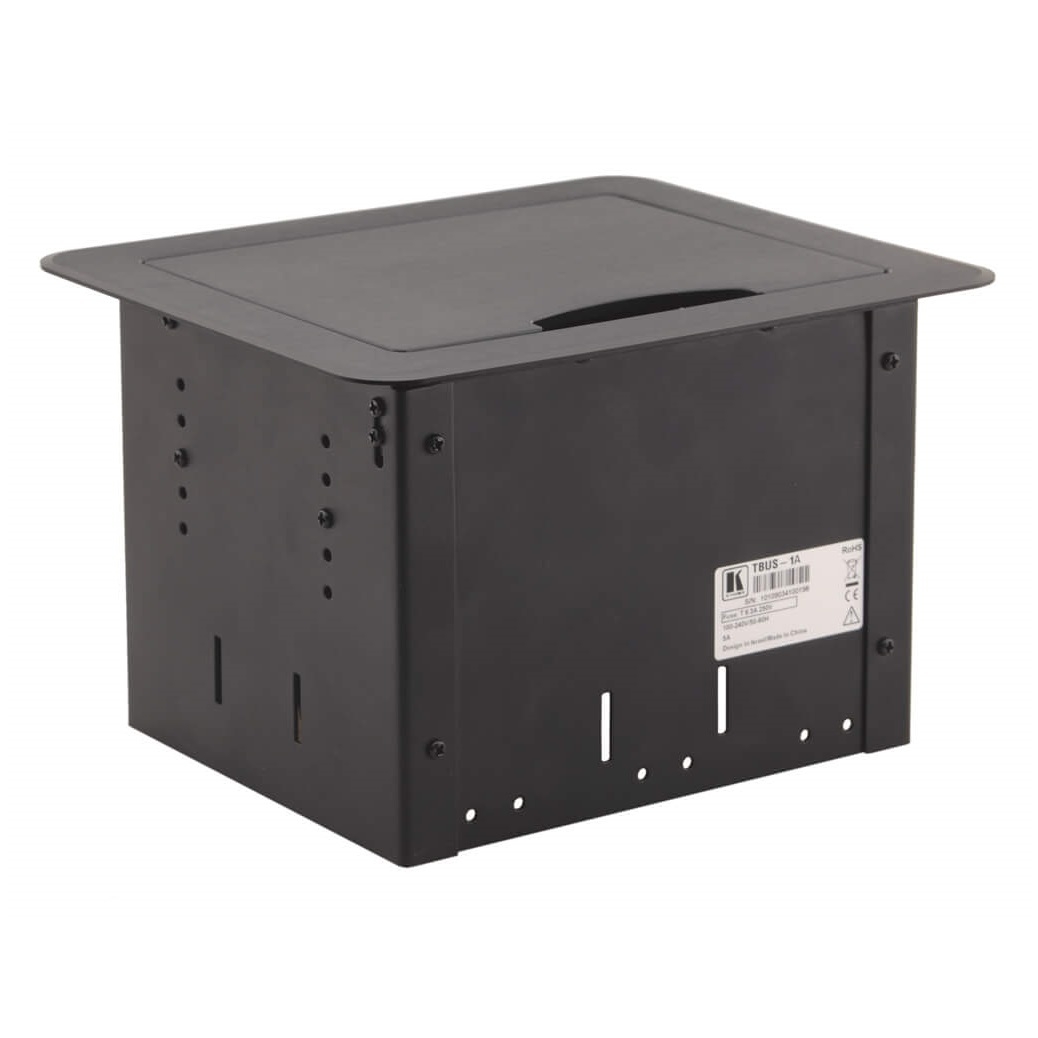

Hộp âm bàn Modular TBUS-1Axl
Mô tả ngắn
TBUS-1Axl Table Mount Modular
Rectangular
Tilt–Up Lid
Modular Design
Hotline: 0918 642 886
The TBUS−1Axl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.
NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
-
- Cover — Manually opens & closes.
-
- Inner Frame — 6 different "TIAF" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
-
- Power Sockets — 8 different "TS" single and 8 dual power socket options are available to accommodate the power requirements worldwide.
-
- Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.
-
- Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.
-
- UL and CE Qualified.
-
- Connector Depth — Adjustable.
-
- Installation Requirement — Table cutout of 19.1cm x 15.2cm (7.51in x 5.98in).
-
- Dimensions — 20.5cm x 17cm x 13.2cm (8.1" x 6.7" x 5.2") W, D, H.
-
- Weight — TBUS–1Axl: 1.5kg (3.3lbs) approx.; table clamps: 0.26kg (0.57lbs); metal template: 0.125kg (0.28lbs).
|
MODEL |
DESCRIPTION |
|
TBUS–1Axl(B) |
Enclosure — Black Sand Blasted Anodized Aluminum Top |
|
TBUS–1Axl(BC) |
Enclosure — Silver Sand Blasted Anodized Aluminum Top |
|
TBUS–1Axl(BA) |
Enclosure — Silver Brushed Anodized Aluminum Top |
OPERATING TEMPERATURE RANGE
-
+5° to +45°C
OPERATING HUMIDITY RANGE
-
10 to 90% RHL, non–condensing
STORAGE TEMPERATURE RANGE
-
–20° to +70°C
STORAGE HUMIDITY RANGE
-
5 to 95% RHL, non–condensing
DIMENSIONS
-
20.5cm x 17cm x 13.2cm (8.07" x 6.69" x 5.20") W, D, H
WEIGHT
-
TBUS–1A: 1.5kg (3.3lbs) approx., table clamps: 0.26kg (0.57lbs), metal template: 0.125kg (0.28lbs)
INCLUDED ACCESSORIES
-
Six self–locking ties
OPTIONS
-
Inner frames, power sockets
