Hộp âm bàn tròn RTBUS-21xl
Mô tả ngắn
Round Table Mount Multi–Connection Solution — Pneumatic Lid — 110mm Cut–Out
Elegant in–table solution
Easy to install
Pop–up Lid
* End-of-Life
Hotline: 0918 642 886

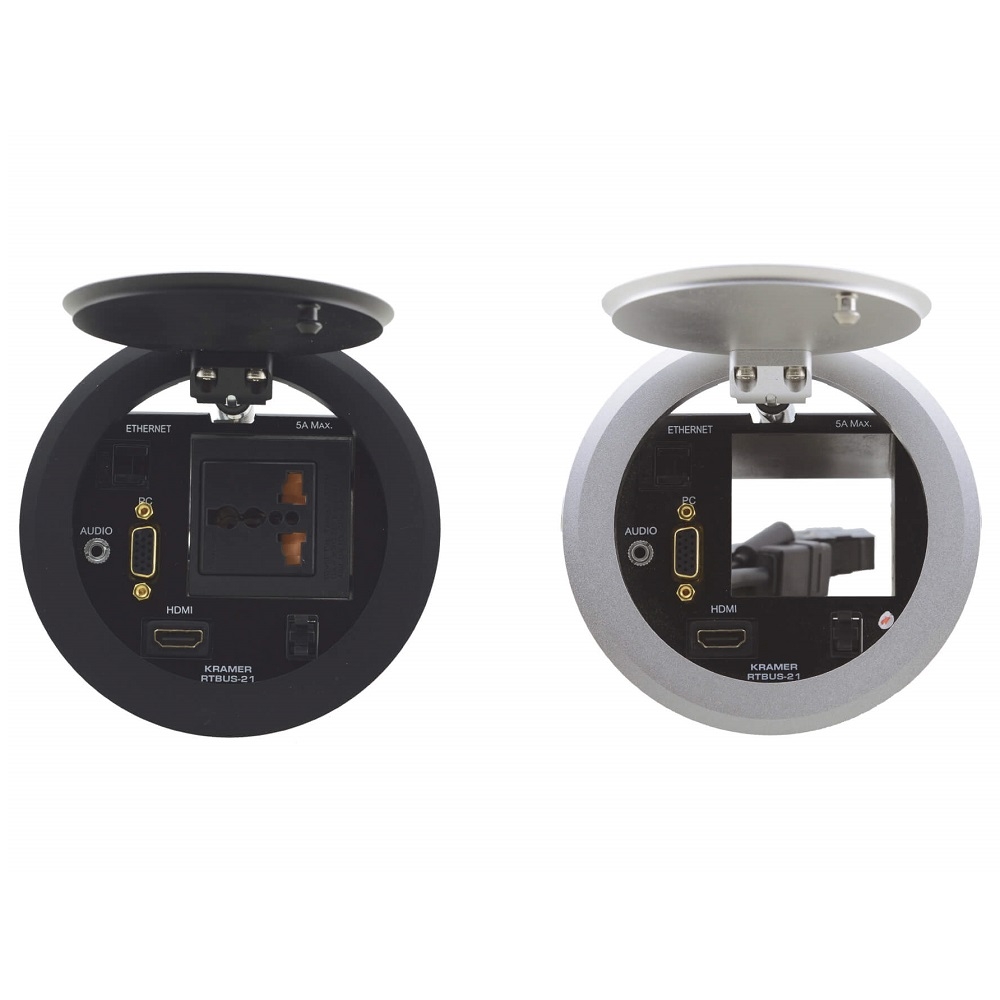

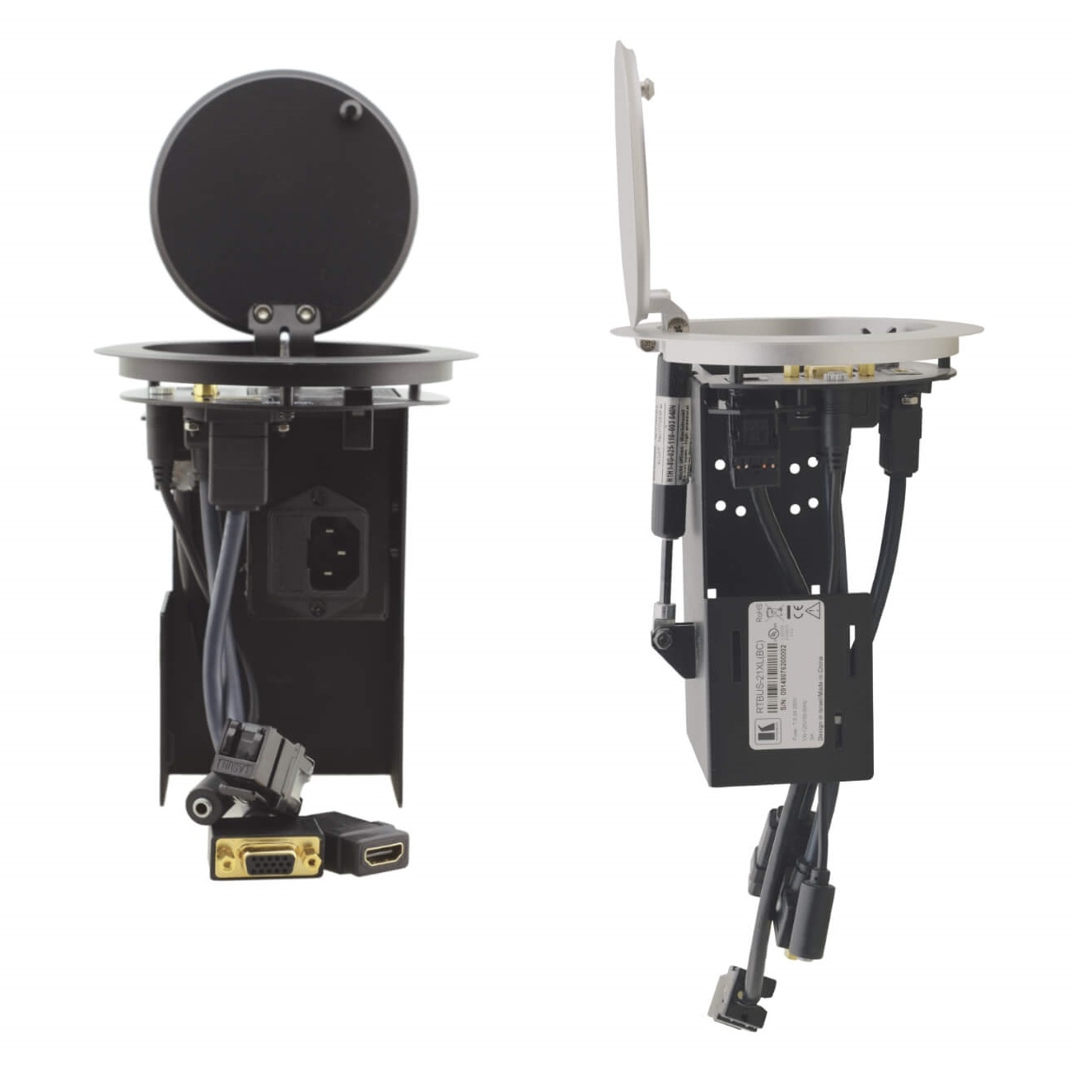

The RTBUS−21xl is an elegant furniture−mounted, modular, round connection bus featuring a pneumatic mechanism for pneumatic lifting and smooth closing of its lid. It is easily installed into a table or podium top and its interface enables you to connect any equipment to systems installed in a room via pass−through connectors for PC, stereo audio, HDMI, Ethernet and power.
NOTE: The power socket and power cord are purchased separately.
-
- Inputs — 15–pin HD, 3.5mm, HDMI, Ethernet.
-
- Cover — Pop–up pneumatic lid.
-
- Cutout Size (Mount Dimension) — 110mm diameter.
PORTS
-
1 HDMI: On a female HDMI connector
-
1 VGA: On a 15–pin d–sub connector
-
1 Audio: On a 3.5mm mini jack
-
1 Ethernet: On an RJ–45 connector
PHYSICAL
-
Cutout Size: 110mm diameter
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
POWER
-
Power ratings vary according to the location and the power socket assembly installed on the tbus, as follows:
-
Universal: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
USA: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Germany and EU: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Belgium and France: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Italy: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Australia: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Israel: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
South Africa: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Switzerland: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
England: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Brazil: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Fuse Rating: T 6.3A 250V
ACCESSORIES
-
Included: Mounting brackets
-
Optional: TBUS AC power cord, power socket kits
PRODUCT DIMENSION
-
15.70cm x 12.80cm x 15.35cm (6.18" x 5.04" x 6.04" ) W, D, H
