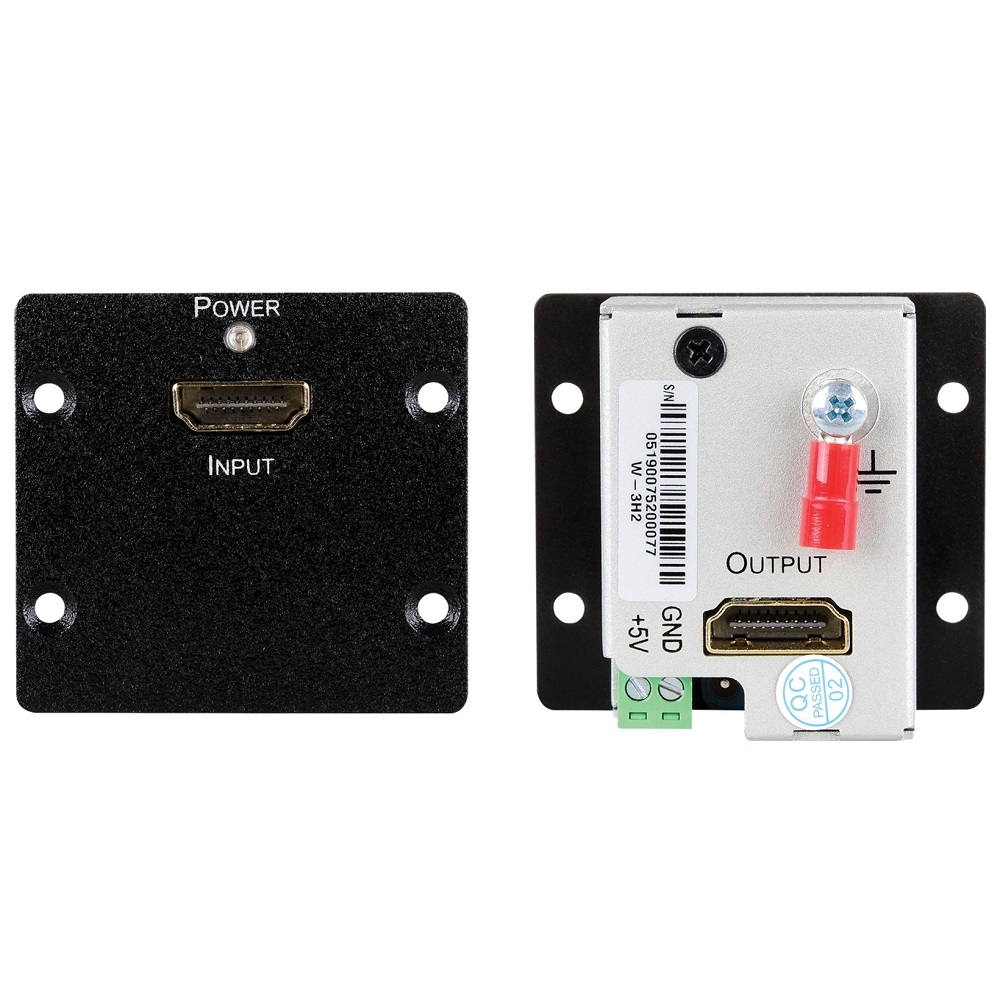

Module mở rộng tín hiệu HDMI W-3H2
Mô tả ngắn
Max Resolution — Up to 4K@60Hz (4:4:4)
Max Range — 45m (150ft) for 1080p60
20m (65ft) for 4K@60 (4:4:4)
Supports HDR (High Dynamic Range) and HDCP 2.2
Insert in TBUS or wall plate
New
Hotline: 0918 642 886
W−3H2 is a 4K HDR HDMI dual insert extender that extends the HDMI cable distance between the HDMI player and the HDMI display by reclocking and regenerating the HDMI signal. Placing W−3H2 in the transmission path, removes dropout and digital noise (sparkles) in your picture that may result from using long HDMI cables.
- Extends HDMI Transmission Distance — Extends 4K@60Hz (4:4:4) signals up to 20m from the source (10m from the source to the HDMI Extender, and 10m from the HDMI extender to the display).
- Supports the DDWG standard for HDMI compliant displays.
- HDMI Support — Supports HDR10, ARC, CEC, deep color, x. v. color™, 7.1 PCM, 4K and 3D as specified in HDMI 2.0. Supports the DDWG standard for HDMI compliant displays.
- Content Protection — HDCP 1.4 and HDCP 2.2 compliant.
INPUTS
1 HDMI: On a female HDMI connector
OUTPUTS
1 HDMI: On a female HDMI connector
VIDEO
Max Resolution: 4K@60Hz (4:4:4)
Max Range 4K@60 4:4:4 Resolution: 20m/65ft (10m/33ft from source to extender, 10m/33ft from extender to display)
Max Range 4K@60 4:2:0 / 4K@30: 40m/130ft (25m/82ft from source to extender, 15m/49ft from extender to display)
Max Range 1080p@60: 45m/150ft (30m/98ft from source to extender, 15m/49ft from extender to display)
Compliance: HDCP 2.2
HDMI Support: ARC, CEC, deep color, x. v. color™, 7.1 PCM, 4K and 3D as specified in HDMI 2.0
USER INTERFACE
Indicators: Power LED
POWER
Consumption: 5V DC, 150mA
