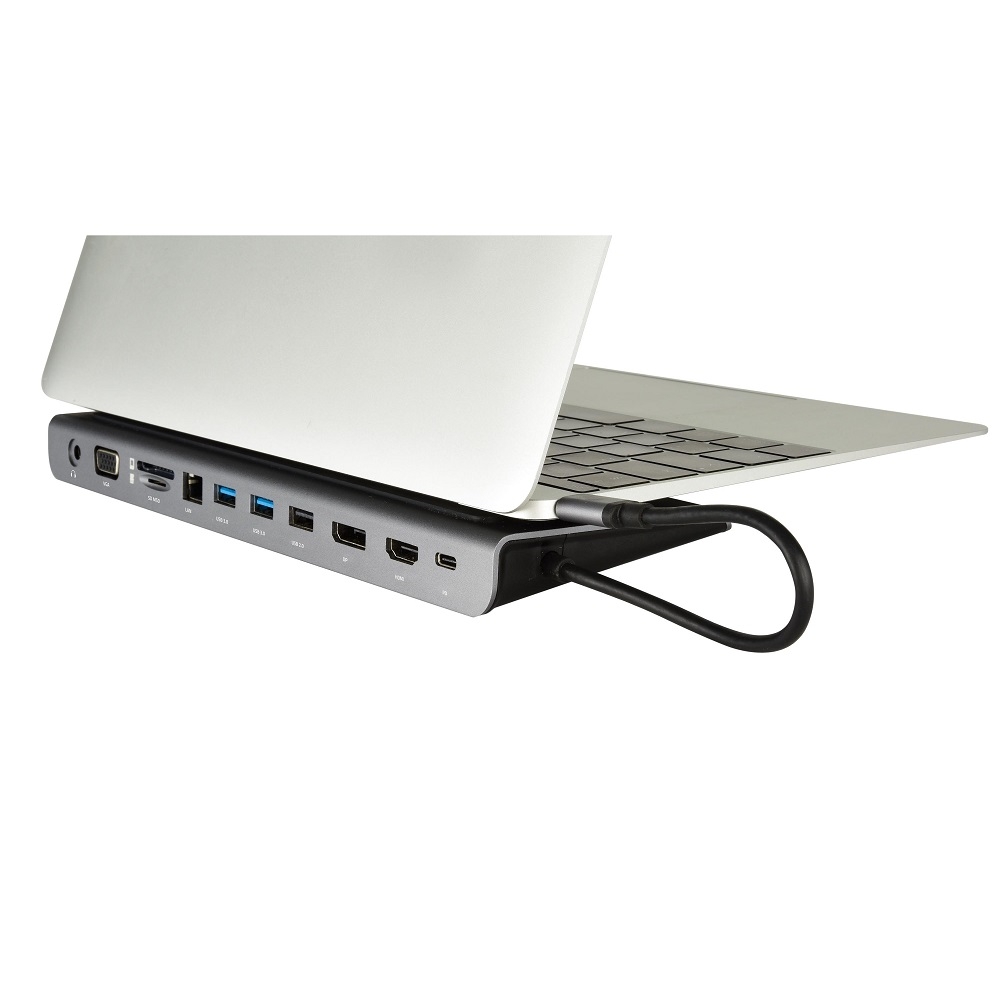

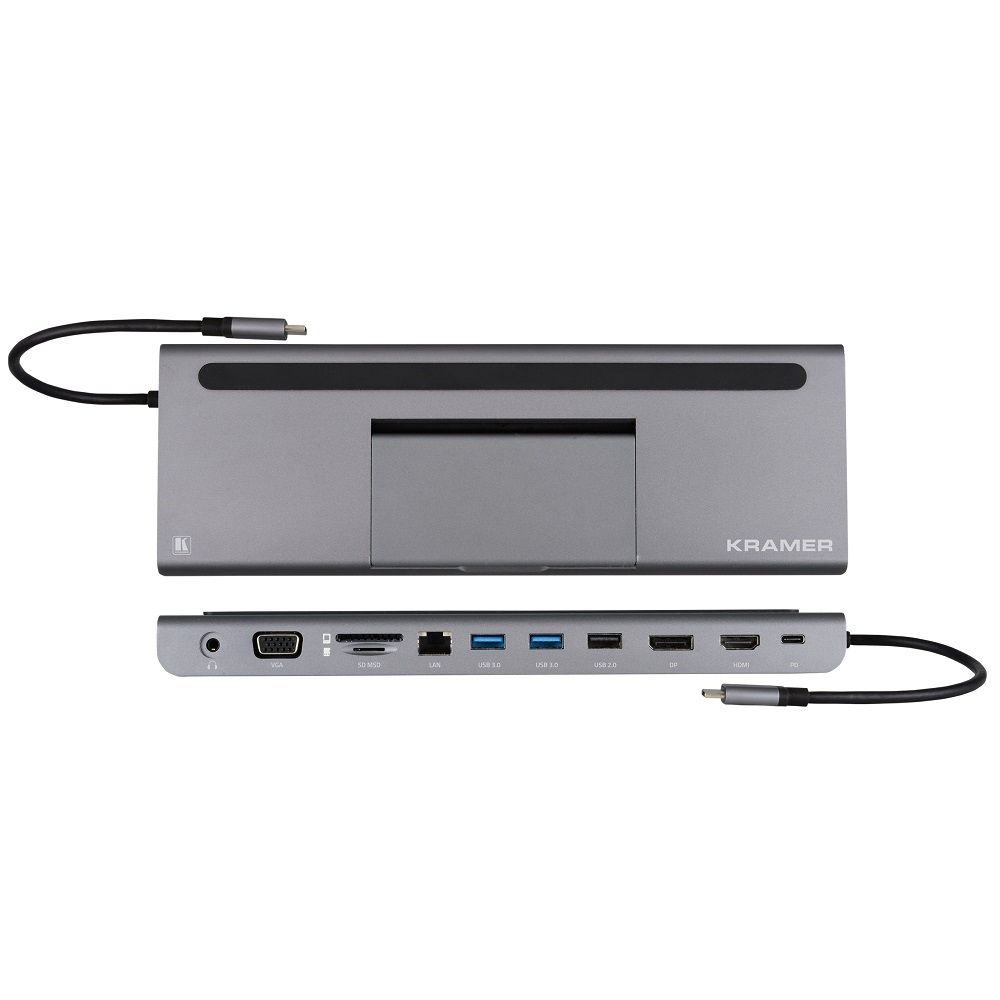

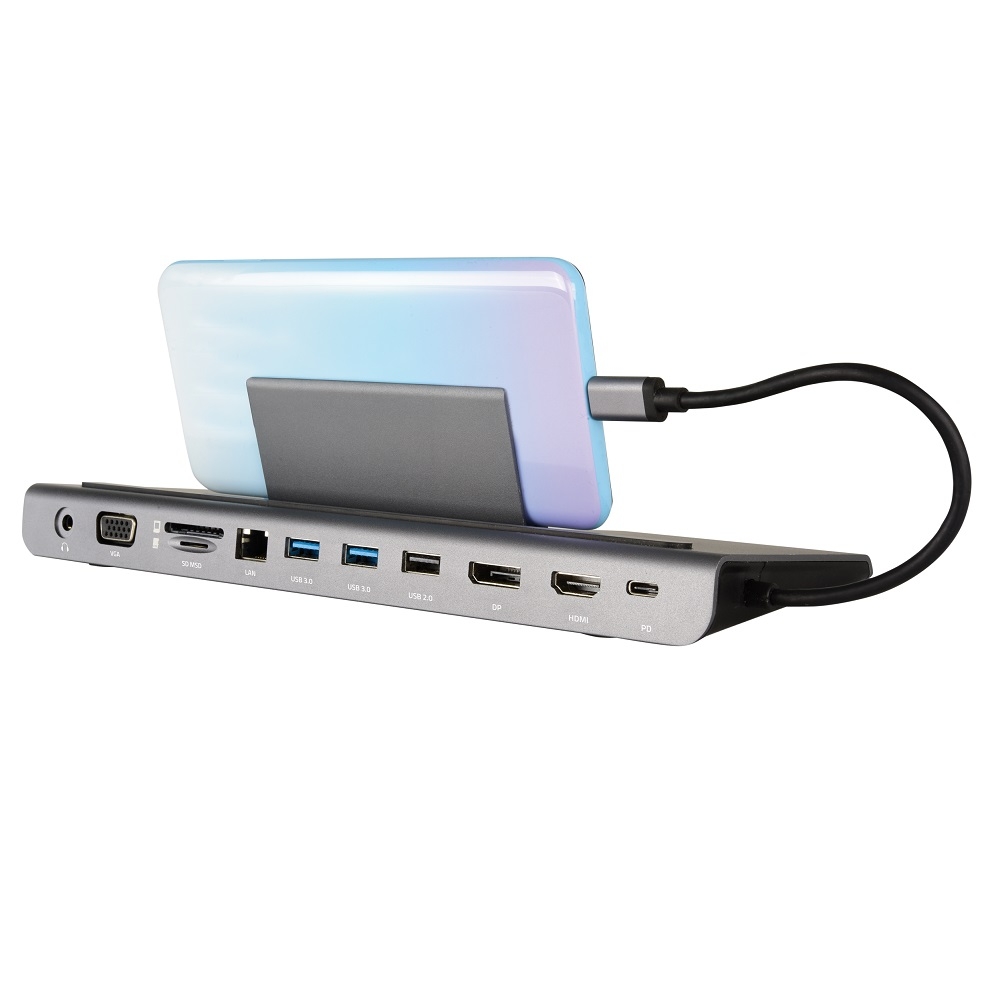

Kramer USB-C Hub Multiport Adapter KDock-4

INPUTS

• 1 USB: On a USB Type–C male connector

OUTPUTS

• 1 HDMI: On a female HDMI connector

• 1 DisplayPort: On a female DisplayPort connector

• 1 VGA: On a female 15–pin HD connector

PORTS

• 2 USB 3.0: On female USB type–A connectors

• 1 USB 2.0: On female USB type–A connectors

• 1 Ethernet: On an RJ–45 connector

• SD: On an SD card port

• 1 Unbalanced Stereo: On a 3.5mm mini jack

• SD: On a microSD port

• 1 USB: On a female USB type–C connector for charging

VIDEO

• Max Resolution (HDMI/DP): 3840x2160P@30Hz (with one display connected)

• Max Resolution (HDMI/DP): 1920x1080P@60Hz (with two displays connected)

• Max Resolution (HDMI/DP): 1920x1080P@60Hz (with three displays connected)

• Max Resolution (VGA): 1920x1080P@60Hz (with one or two displays connected)

• Max Resolution (VGA): 1280x720P@60Hz (with three displays connected)

• Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)

• Multiple Video Output Support: Via MST (Multi–Stream Transport) technology

• Content Protection (HDMI output): HDCP 1.4

EXTENDED ETHERNET

• Max Data Rate: 1000M (Gigabit)/100M/10M

• Includes: Wake–on–LAN (WoL), single Mac address, PXE boot

GENERAL

• USB 3.0 Data Transmission Speed: Up to 5.0Gbps

POWER

• Delivery: 100W

• USB Charging: BC1.2 (5V 1.5A)

• USB Limited Current when Connected to Power via female USB-C port: 1.9A

• USB Limited Current when Not Connected to Power via female USB-C port: 1A

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +70°C (32° to 158°F)

• Storage Temperature: –10° to +55°C (14° to 131°F)

• Humidity: 5% to 90%, RHL non–condensing

ENCLOSURE

• Type: Aluminum with built–in 20cm/7.87" flexible USB–C cable

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

• Safety: CE

• Environmental: RoHs, FCC

PRODUCT DIMENSIONS

• 26.00cm x 9.00cm x 2.50cm (10.24" x 3.54" x 0.98" ) W, D, H

PRODUCT WEIGHT

• 0.4kg (0.8lbs) approx.
