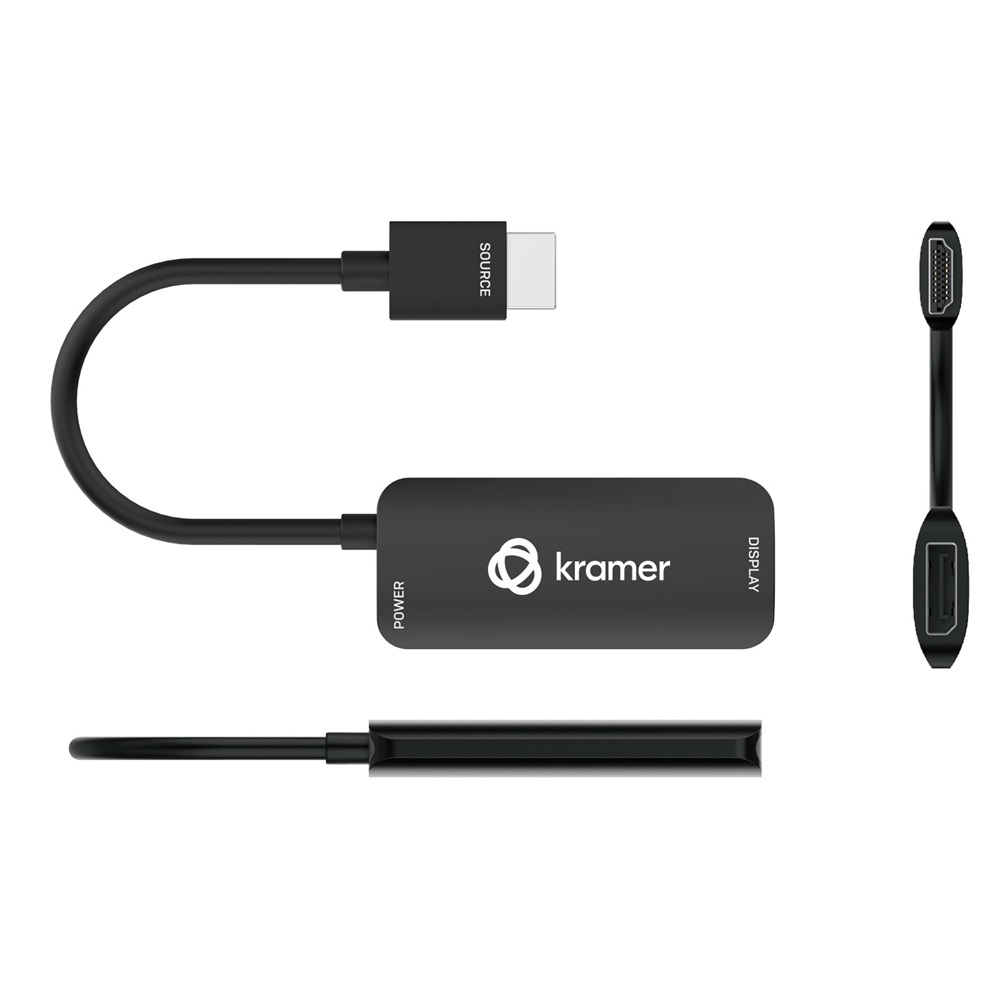

Kramer ADC-HM/DPF/UHD 4K HDMI to DisplayPort Adapter Cable
Mô tả ngắn
Kramer ADC-HM/DPF/UHD 4K HDMI (M) to DisplayPort(F) Adapter Cable
Auxiliary power through USB cable
Hotline: 0918 642 886
Kramer ADC-HM/DPF/UHD is a perfect solution for connecting devices with HDMI outputs to a DisplayPort monitor or projector. The adapter cable supports resolutions up to 4K@60Hz 4:4:4, is HDCP 2.2 compliant and provides quick and easy, plug−and−play installation with no software or drivers to install. The auxiliary USB cable enables power supply through a USB-A to Micro port.
Key Features:
- Enables connecting your HDMI output sources to DisplayPort displays for video and audio mirror and extension.
- Max. Resolution — 4K@60Hz 4:4:4
- HDCP Compliance — HDCP 2.2
- Auxiliary Cable Power Supply — through USB–A to Micro.
- Quick and Easy installation — No software or drivers required.
- Regulatory Standards Compliance — CE, FCC UKCA, ROSH, REACH
Inputs
HDMI 2.0 On a male HDMI connector.
Max Resolution 3840x2160@60Hz 4:4:4 8Bit
Outputs
DisplayPort 1.2 On a female DisplayPort connector.
Max. Resolution 3840x2160@60Hz 4:4:4 8Bit
Audio
Supported Audio 96kHz/24bit
PHYSICAL
Input HDMI On a male HDMI type A.
Output DisplayPort On a female DisplayPort connector.
Power On a USB type A to Micro B cable (0.5m (1.64ft)), must be connected.
SCREENING
Type Triple shielding
JACKET
Material PVC
Color Black
Diameter 4.8mm (0.19in)
MECHANICAL
Housing ABS
Temperature
Operating Temperature: 0°C — 40°C
Storage Temperature: -20°C — 45°C
STANDARDS COMPLIANCE
CE, FCC ,UKCA, ROSH, REACH
