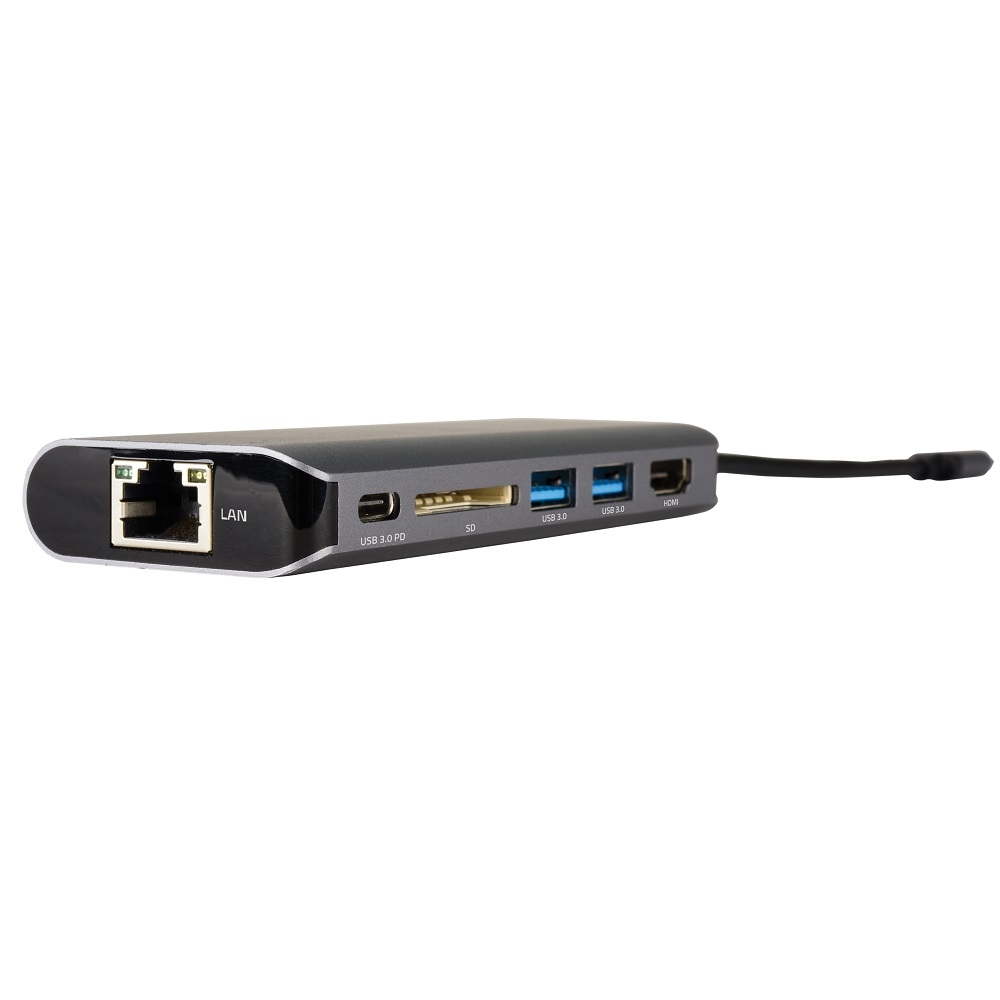

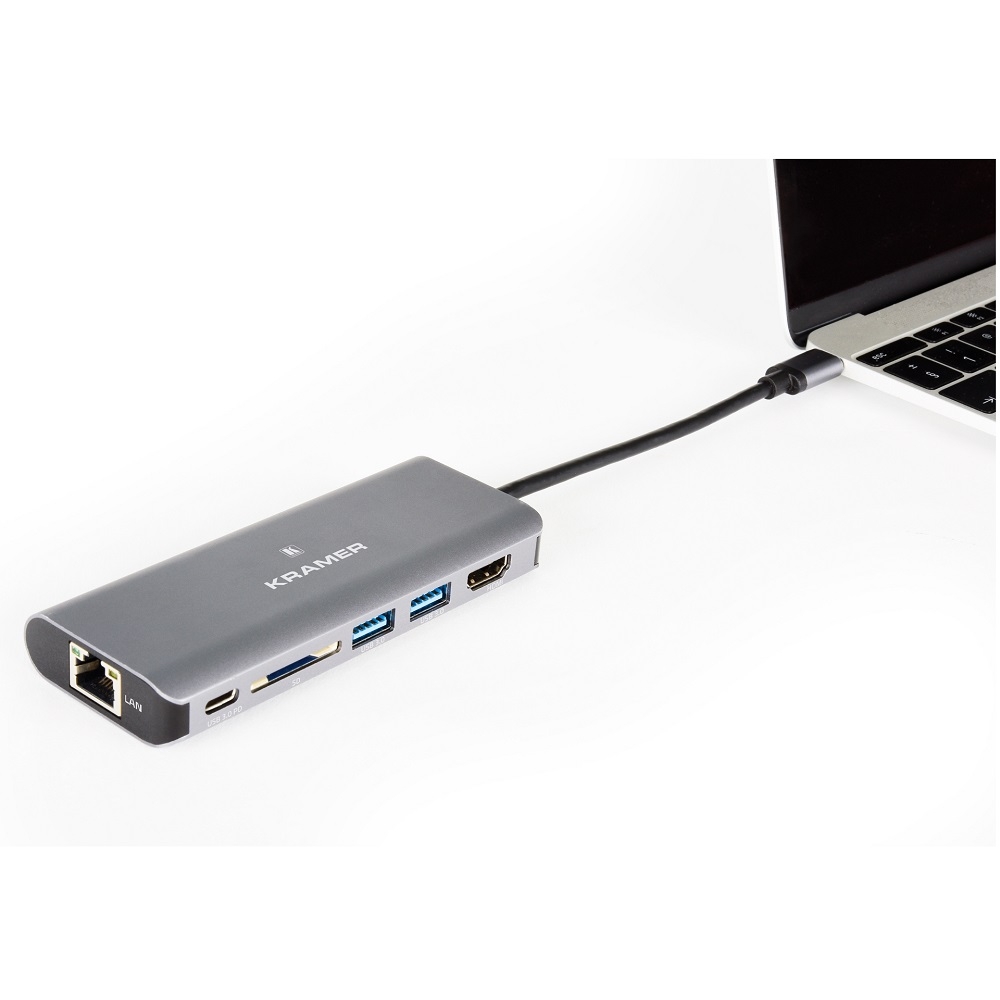

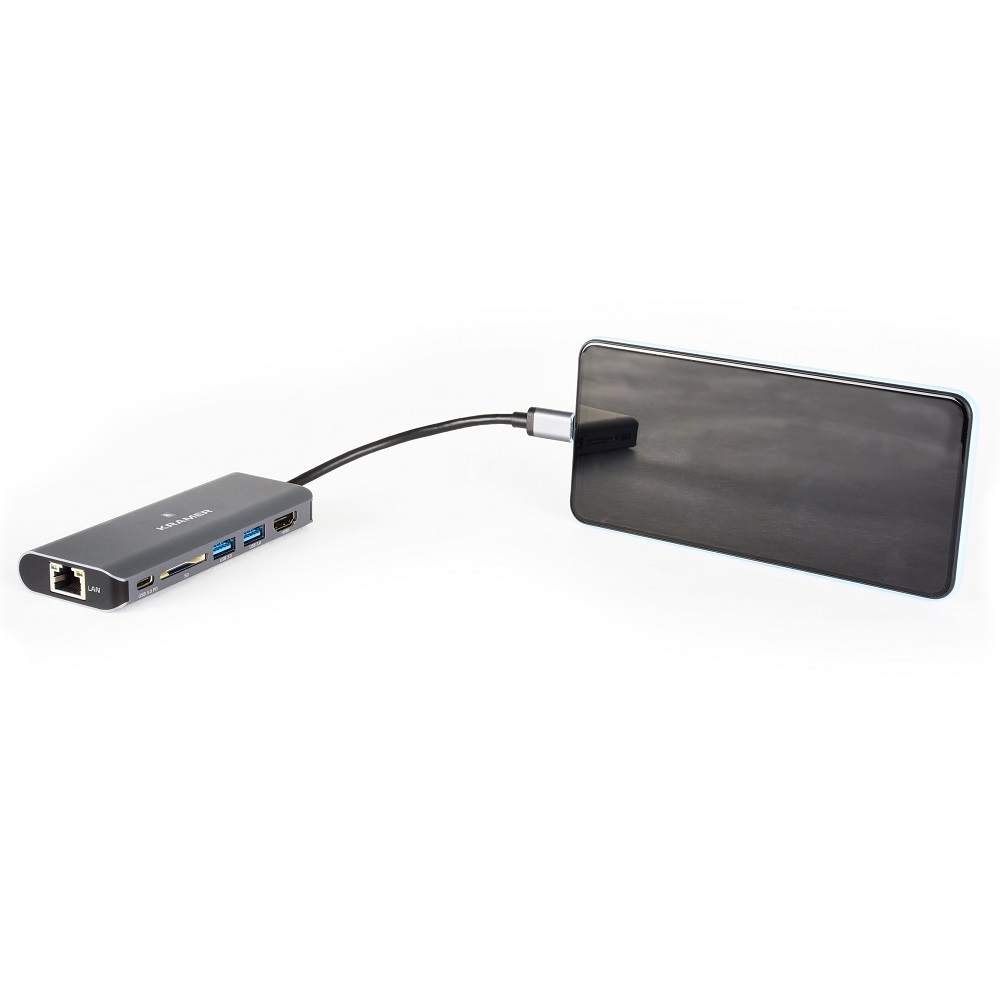

Kramer USB-C Hub Multiport Adapter KDock-2

INPUTS

• 1 USB: On a USB Type–C male connector

PORTS

• 2 USB 3.0: On female USB type-A connectors

• 1 Ethernet: On an RJ–45 connector

• SD: On an SD card port

• 1 USB: On a female USB type–C connector for data and charging

VIDEO

• Max Resolution (HDMI output): 3840x2160P@30Hz

• Max Data Rate: (HDMI output): 10.2Gbps (3.4Gbps per graphic channel)

• Content Protection (HDMI output): HDCP 1.4

EXTENDED ETHERNET

• Max Data Rate: 1000M (Gigabit)/100M/10M

• Includes: Wake–on–LAN (WoL), single Mac address, PXE boot

GENERAL

• USB Data Transmission Speed (USB 3.0 & USB-C): Up to 5.0Gbps

POWER

• Delivery: 100W

• USB Charging: BC1.2 (5V 1.5A)

• USB Limited Current when Connected to Power via female USB-C port: 1.9A

• USB Limited Current when Not Connected to Power via female USB-C port: 1A

ENVIRONMENTAL CONDITIONS

• Operating Temperature: 0° to +70°C (32° to 158°F)

• Storage Temperature: –10° to +55°C (14° to 131°F)

• Humidity: 5% to 90%, RHL non–condensing

ENCLOSURE

• Type: Aluminum with built-in 16cm/6.3" flexible USB–C cable

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

• Safety: CE

• Environmental: RoHs, FCC

PRODUCT DIMENSIONS

• 11.65cm x 6.68cm x 1.60cm (4.59" x 2.63" x 0.63" ) W, D, H

PRODUCT WEIGHT

• 0.1kg (0.2lbs) approx.
