Kramer USB-C Hub Multiport Adapter KDock-1
Mô tả ngắn
USB–C Hub Multiport Adapter
4K@30 HDMI output
USB 3.0
USB–C charging pass–through
Hotline: 0918 642 886

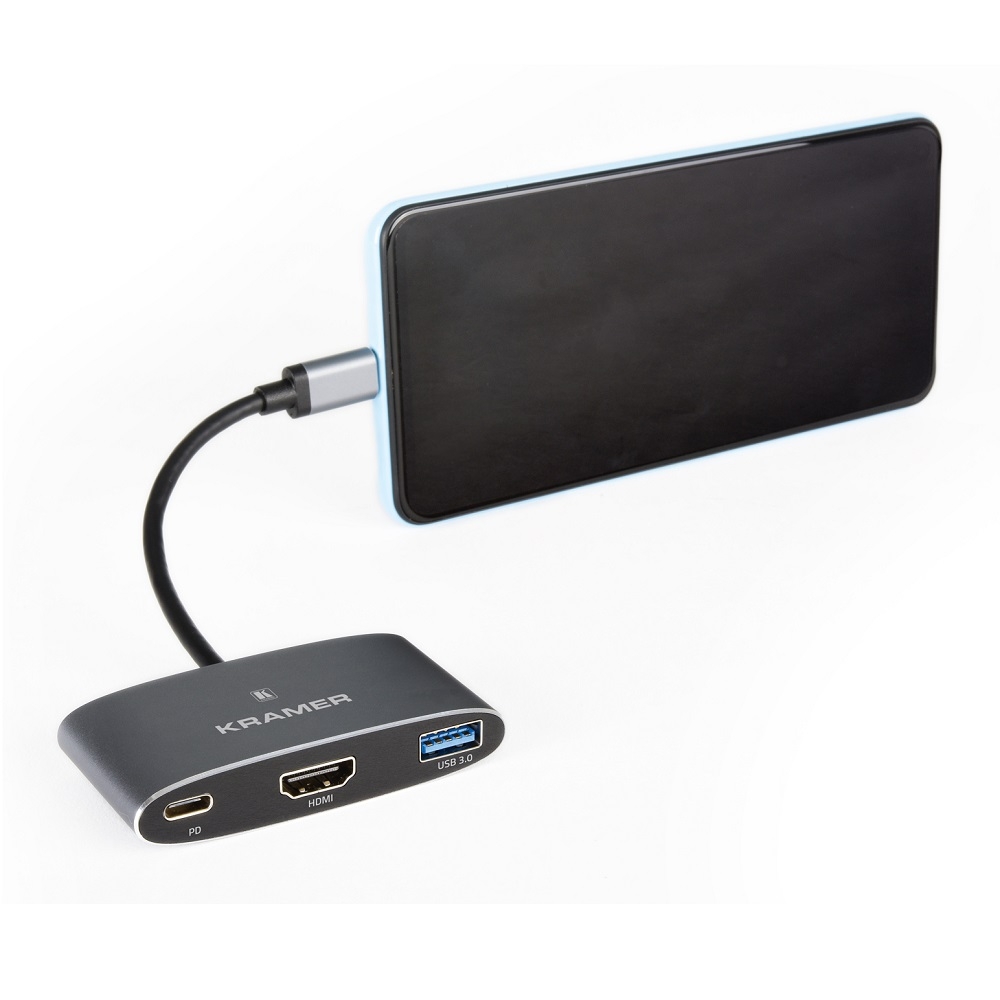

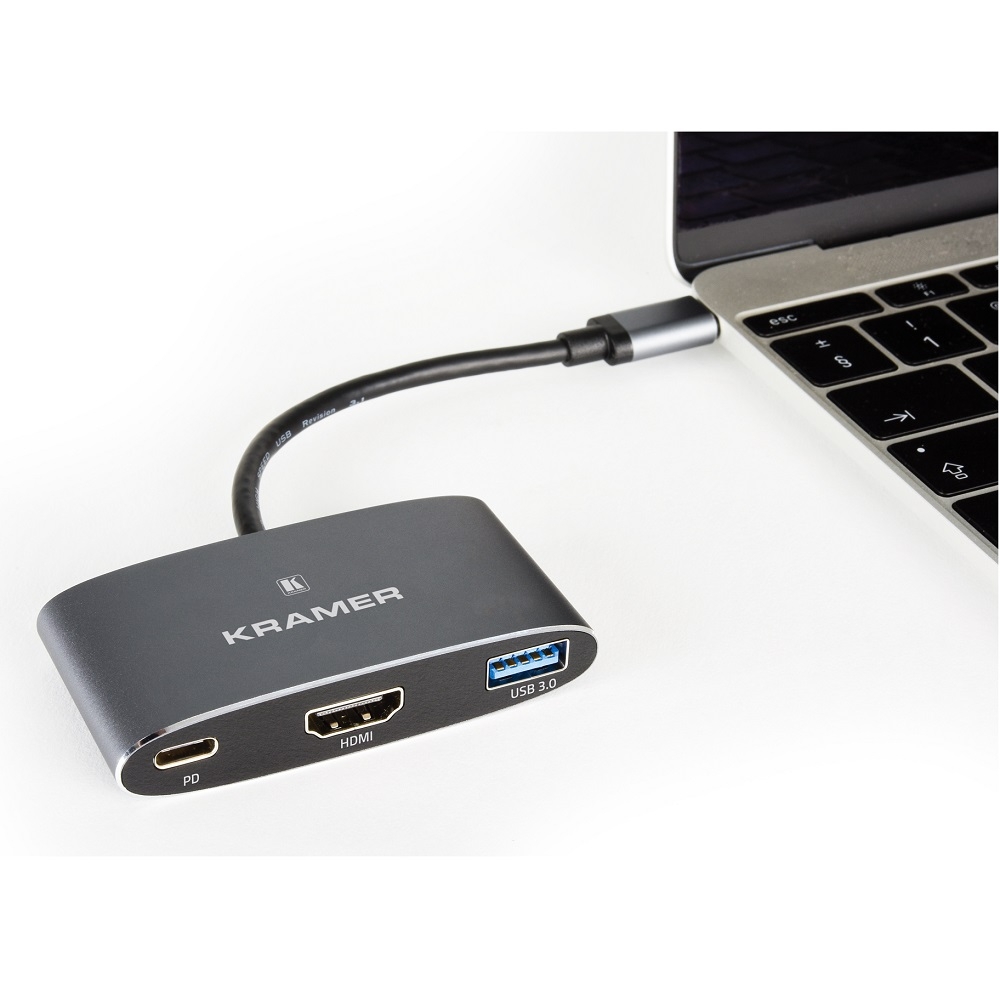

KDock−1 is a USB−C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB type−C, smartphones, and tablets. KDock−1 enables you to connect your USB−C device to an HDMI™ video output, USB 3.0 port, and USB−C charging pass−through.
Note: Video output for smartphones is supported only for smartphones that support DisplayPort Alt mode through USB−C.
INPUTS
-
1 USB: On a USB Type–C male connector
OUTPUTS
-
1 HDMI: On a female HDMI connector
PORTS
-
1 USB 2.0/3.0: On a female USB type–A connector
-
1 USB: On a female USB type–C connector for charging
VIDEO
-
Max Resolution (HDMI output): 3840x2160P@30Hz
-
Max Bandwidth (HDMI output): 10.2Gbps (3.4Gbps per graphic channel)
-
Content Protection (HDMI output): HDCP 1.4
GENERAL
-
USB 2.0 Data Transmission Speed: Up to 480Mbps(60MB/s)
-
USB 3.0 Data Transmission Speed: Up to 5.0Gbps (640MB/s)
POWER
-
Delivery: 60W
-
USB Charging: BC1.2 (5V 1.5A)
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +70°C (32° to 158°F)
-
Storage Temperature: –10° to +55°C (14° to 131°F)
-
Humidity: 5% to 90%, RHL non–condensing
ENCLOSURE
-
Type: Aluminum with built–in 16cm/6.3" flexible USB–C cable
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
-
Safety: CE
-
Environmental: RoHs, FCC
