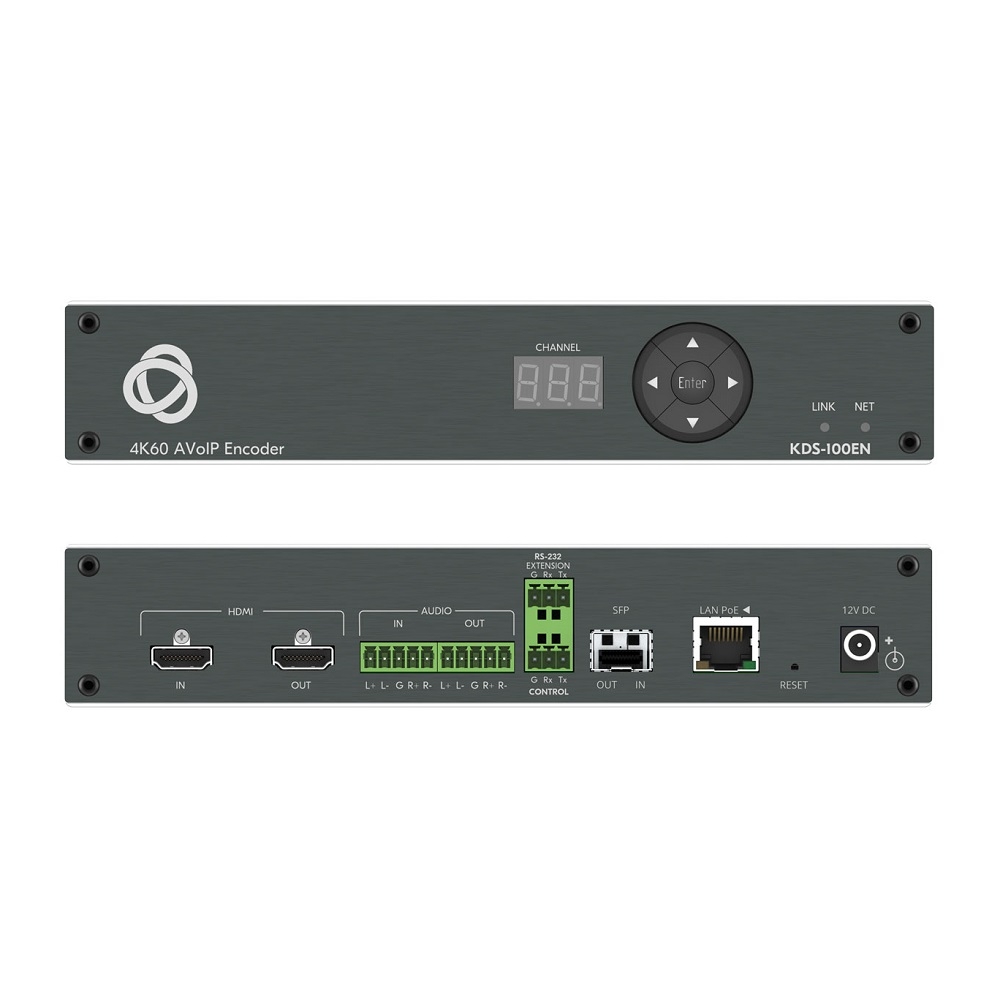

Thiết bị mã hóa tín hiệu hình ảnh KDS-100EN

Thiết bị mã hóa tín hiệu hình ảnh KDS-100EN

Mô tả ngắn

KDS-100EN Open–standard H.264/H.265 AVoIP 4K@60Hz streaming encoder with AES67 audio
Outstanding end-user experience
Ideal for large–scale deployments
Low latency
Open standard streaming to connect 3rd party
Simple planning and rollout

liên hệ mua hàng
Hotline: 0918 642 886

KDS−100EN−U/KDS−100EN encoder is an advanced transmitter for streaming 4K@60Hz video signals via Ethernet over copper or fiber cables. It encodes and streams over an IP network from HDMI input, and transmits the IR, RS−232, or CEC signals over IP network. The KDS−100EN−U encoder has a host USB to connect remote USB devices from the KDS−100DEC−U decoders.



- Robust Solution for Large–Scale Installations — Provides an optimized solution for large Education and Enterprise campuses, as well as Defense and Homeland Security Facilities, with support for numerous simultaneous video flows and built–in advanced management capabilities.

- Highly Scalable — The KDS–100 line supports up to 1000 video sources, suited for large–scale installations.

- Built–in Resilient Security Features — Preserves the integrity, availability and confidentiality of the IT network via a highly secured and resilient AVoIP solution.
KDS–100 devices comply with IT security requirements, including 802.1x and HTTPS/TLS.

- Simple Planning and Rollout — Leveraging the H.264/265 standard, KDS–100 is highly bandwidth–efficient, thus enabling cost–efficient hybrid use of the existing 1GE IT network. There is no need to deal with complex IP packets prioritization or switching settings. Offering easy management, high reliability, and adjustable bandwidth control, KDS–100 is extremely cost–effective to maintain over the long term.

- Alternative Sources/Destinations — An HDMI loop–through port on the encoder side and an HDMI input port on the decoder, as well as embedding and de–embedding analog and digital AES67 to the IP stream.



INPUTS

  • 1 HDMI: On a female HDMI connector

  • 1 Balanced Audio: On a 5–pin terminal block connector



OUTPUTS

  • 1 HDMI: On a female HDMI connector

  • 1 Balanced Audio: On a 5–pin terminal block connector



PORTS

  • 1 Ethernet: On an RJ–45 connector

  • 1 Fiber on an LC Connector: Standard: 1000BASE–SX, 1000BASE–LX

  • 1 RS-232: On a 3–pin terminal block connector for control

  • 1 RS-232: On a 3–pin terminal block connector for data

  • 1 USB Host (KDS-100EN-U Only): On a USB Type B connector



NETWORK

  • 1 GE

  • IPv4

  • RTP/RTCP over UDP

  • Multicast IGMPv2



VIDEO

  • Max In/Out Resolution: 4K@60Hz 4:4:4

  • HDCP (In/Out): 1.4 and 2.2



VIDEO STREAMING

  • Compression: H.264 / H.265

  • Streaming Resolution: 4K@60Hz 4:2:2

  • Bit Rate Range: 15–60Mbps

  • Latency: Normal and low



RESOLUTION

  • 1024X768P/60, 1280X768P/60, 1280X720P/60, 1280X720P/50, 1280X720P/24, 1280X720P/25, 1280X720P/30, 1280X1024P/60, 1600X1200P/60, 1920X1080P/60, 1920X1080P/50, 1920X1080P/24, 1920X1080P/25, 1920X1080P/30, 1920X1200P/60, 3840X2160P/24, 3840X2160P/25, 3840X2160P/30, 3840X2160P/50, 3840X2160P/60



AUDIO STREAMING

  • 1 AES67 stereo in / 1 AES67 stereo out



SECURITY

  • HTTPS, 802.1x



USER INTERFACE

  • Indicators: Link and power LEDs, digital display for channel ID

  • Front Panel: Channel–ID selection button for video streaming

  • Rear Panel: Restart and factory reset buttons

  • Controls via Serial USB: API commands (KDS–100EN–U Only)

  • Controls via Ethernet: API, embedded web pages and RTSP



POWER

  • PoE+: IEEE 802.3at on LAN (PoE) port

  • Source (Optional): 12V DC/5A

  • Consumption: 13.6W



ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing

  • Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing

  • Humidity: 10% to 90%, non–condensing



GENERAL

  • Product Dimensions: 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

  • Product Weight: 0.9kg (2lbs) approx
