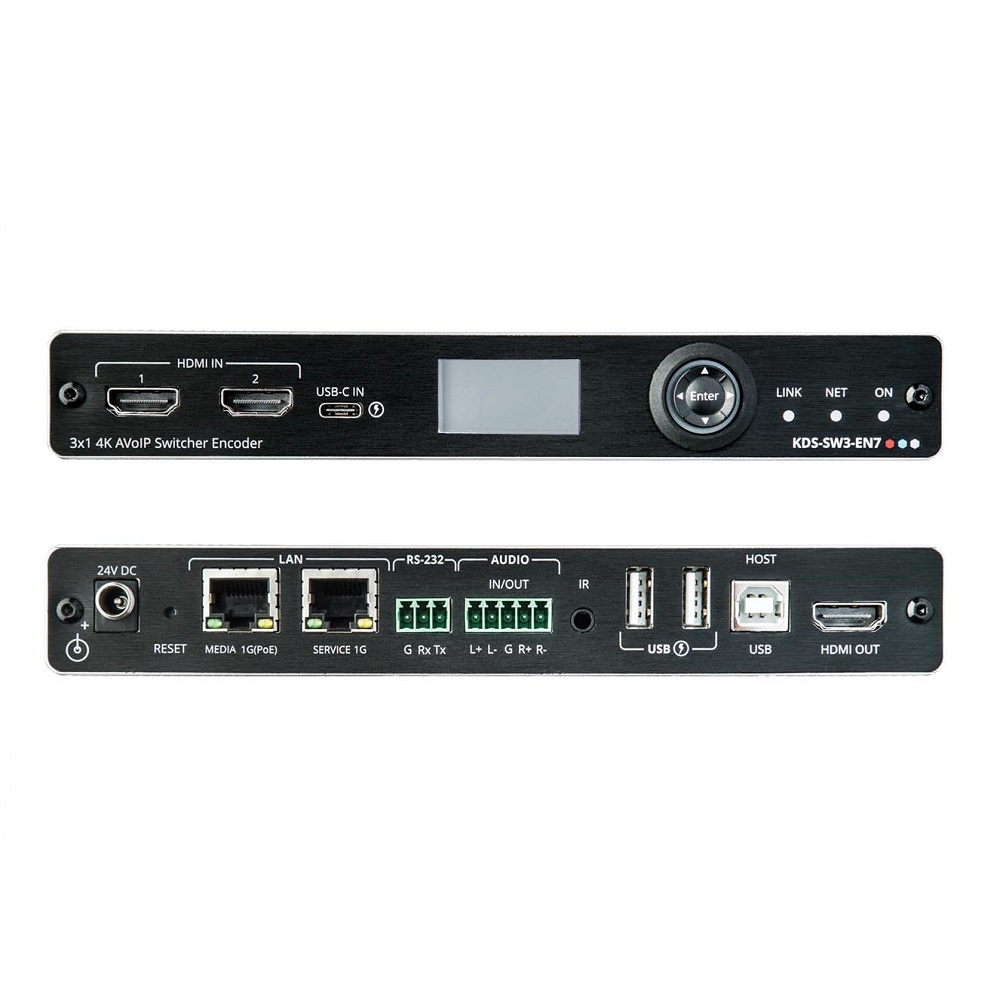

Thiết bị mã hóa tín hiệu hình ảnh hỗ trợ Dante KDS-SW3-EN7
Mô tả ngắn
KDS-SW3-EN7 4K AVoIP Encoder Switcher with Dante over 1GbE
Outstanding end-user experience
Ideal for large–scale deployments
Robust security
Simple planning and rollout
Hotline: 0918 642 886
KDS−SW3−EN7 is an auto switcher and advanced encoder for streaming a selected video signal at 4K via Ethernet over copper cable in unicast (one−to−one) or multicast (one−to−many) configurations. It can add digital audio Dante, USB, IR, RS−232, or CEC signals.
- KDS–SW3–EN7 provides exceptional quality, advanced user–friendly operation, and flexible control.
- Instantaneous Switching Time — 1 second switching time between selectable video inputs.
- Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface. While KDS–DEC7 decodes the stream to 4K@30Hz (4:4:4) resolution.
- Streaming delay 33msec — for video 4K@30Hz 4:4:4 signal.
- Streaming Support — Provides unicast and multicast streaming.
- Flexible Analog Audio Embedding and De–embedding — Select balanced analog audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
- Flexible Digital Audio Embedding and De–embedding Dante — Select digital audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
- Easy To Use KM/KVM Support — Searchable, OSD menu for KM and fully configurable KVM roaming.
- Power consumption without USB–C Power Delivery is 13W — power consumption with USB–C Power Delivery is 77W (requiring the optional power supply).
- Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
- PoE Support — Powered with PoE connection from PoE LAN switch.
- Control Gateway — Through P3K or special TCP connection, users can control/communicate with IR, RS–232, or CEC to the connected devices.
- Separate Service LAN Port — can be used for physical separation between AV and command streams to separate LAN for security and reliability purposes.
- Selectable Inputs — 2 HDMI and 1 USB–C input.
- Analog/Digital audio inputs and outputs.
- Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, and KDS–USB2.
INPUTS
-
2 HDMI: On female HDMI connectors
-
1 USB: On a USB–C connector
OUTPUTS
-
1 HDMI: On a female HDMI connector
PORTS
-
2 Ethernet: On R–J45 female connectors
-
1 Balanced Audio: On a 5–pin terminal block connector
-
1 RS-232: On a 3–pin terminal block connector
-
1 IR: On a 3.5mm TRS connector
-
1 USB-B Host: On a USB–B connector
-
2 USB-A Devices: On USB–A connectors
NETWORK
-
Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
-
Unicast: Through RTSP (Real Time Streaming Protocol)
-
Bit Rate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
VIDEO STREAMING
-
Compression Standard: JPEG2K based, proprietary stream
-
Max Input Resolution: 4K@60hz (4:2:0)
-
Max Output Resolution: 4K@30hz (4:4:4)
-
Max End-to-End Resolution: 4K@30hz (4:4:4)
-
Scaler: Yes
-
End-to-End Latency: 33msec
-
Switching Time: 1sec
RESOLUTION
-
4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
-
3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz,
-
1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz,
-
1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
-
1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz,
-
1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz,
-
1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz
DIGITAL AUDIO
-
2−channel Dante Out: On an Ethernet connector
AUDIO
-
Supported Formats: LPCM, Dolby and DTS
-
LPCM: LPCM upto 7.1/24–bit/192kHz
-
Dolby: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
-
DTS: DTS–HD Master Audio, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1
SECURITY
-
HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key
USER INTERFACE
-
Indicators: LINK, NET and ON LEDs, front panel LCD Display
-
Rear Panel: Restart and factory reset button
-
Controls: Embedded web pages, P3K API commands via Ethernet, front panel navigation buttons
POWER
-
PoE (Power over Ethernet): 37V to 57V, maximum power consumption 19W (when USB at full load)
-
Optional power supply: 24V DC, 5A
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
-
Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
-
Humidity: 10% to 90%, non–condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
-
Safety: CE, FCC
-
Environmental: RoHs, WEEE
ENCLOSURE
-
Size: Mega Tool Deep
-
Type: Aluminium
-
Cooling: Convection Ventilation
PRODUCT DIMENSIONS
-
18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H
PRODUCT WEIGHT
-
0.7kg (1.5lbs) approx.
