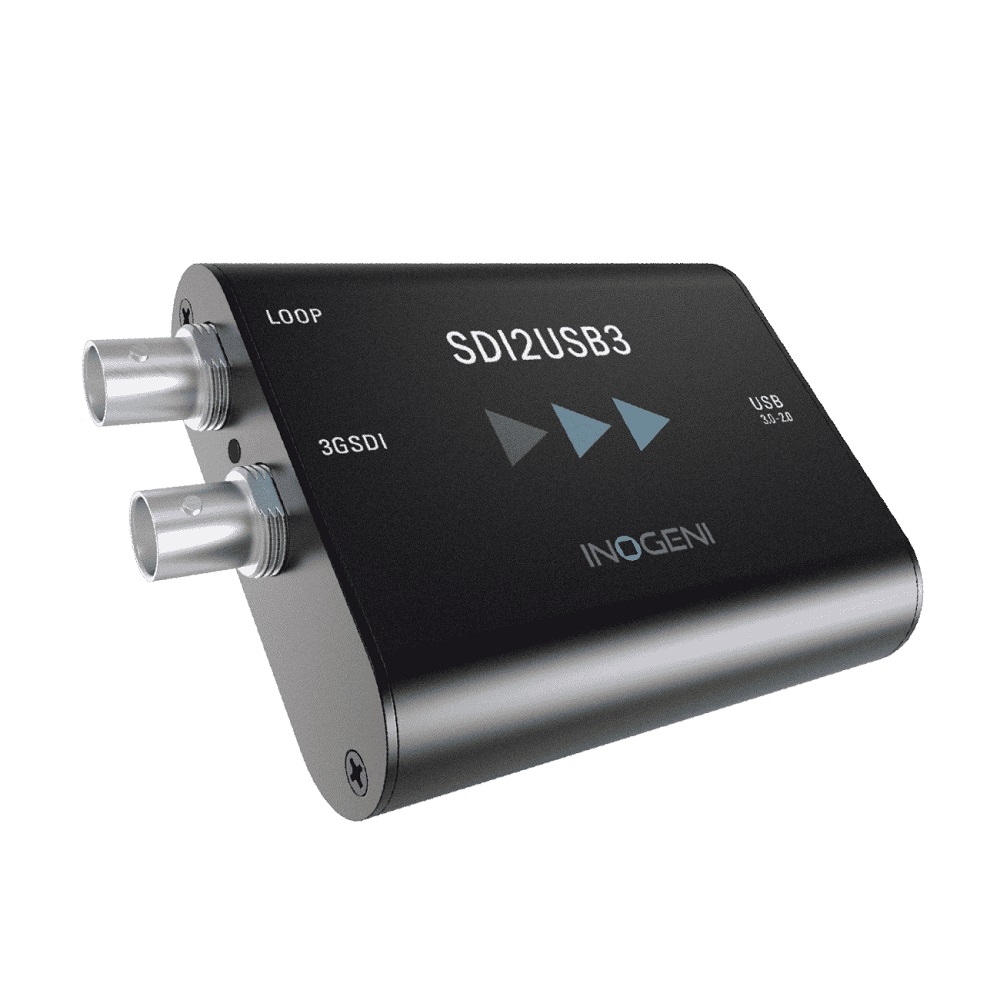

Inogeni SDI2USB3 3G-SDI to USB 3.0 video converter
Mô tả ngắn
Inogeni SDI2USB3 3G-SDI to USB 3.0 video converter
3GSDI video capture to USB 3.0
Active loop output connector
Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps
Embedded audio extraction and output as two-channel LPCM
Hotline: 0918 642 886
INOGENI’s SDI2USB3 video converter enables 3GSDI cameras to connect with computers, laptops or CODECs without glitches or complicated setups.
- 3GSDI professional video capture to USB 3.0
- Highly stable signal
- Active loop output connector
- Cost-effective professional camera converter solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant
Main feature
Description
Converts SDI (video and audio) to USB 3.0 without compression. Active loop output connector.
Video input

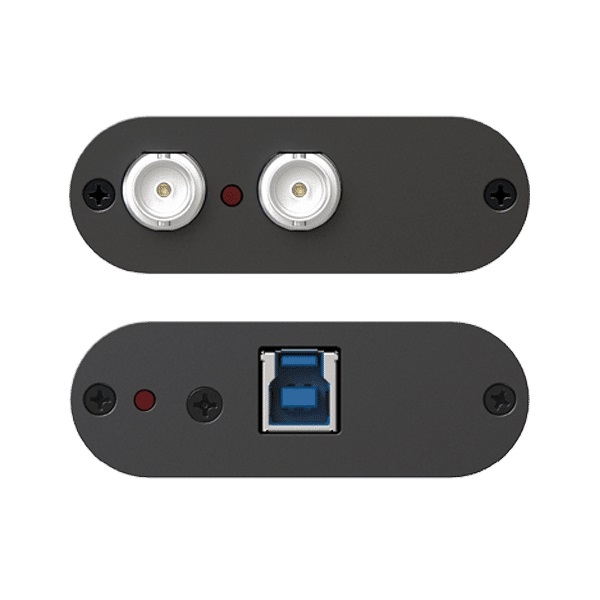

Connector & video resolutions
1x BNC (3GSDI input)
1x BNC (3GSDI active loop out)
3G: 1080p60/59.94/50 (Level A, B-Dual Link)
HD: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98 and 720p60/59.94/50/30/29.97/25/24/23.98
SD: NTSC/PAL
Jitter (alignment)
HD/SD: <0.2 UI 3 Gb/s: <0.4 UI
Cable length
150m (492 ft.) at 1.485 Gb/s
120m (393 ft.) at 2.970 Gb/s
Frame rates
60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
Color space
YCbCr, 4:2:2
Sampling rate
148.5/148.35 MHz
Embedded audio
Ch 1&2 48kHz LPCM
Video output
Connector & video resolutions
1x BNC (3GSDI active loop out)
Color space
YCbCr 4:2:2
USB - Connector & video resolutions
1x USB 3.0 Type-B
USB - CODECs
YUY2 4:2:2 8-bit for USB 3.0
MJPEG for USB 2.0*
Notes for MJPEG for USB 2.0
* Devices having serial numbers >= SD2036XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.
USB - Video scaler
Automatic hardware based
USB - Color space conversion
Automatic hardware based
USB - Sampling conversion
Automatic hardware based
USB - Frame rate conversion
Automatic hardware based
Audio
Analog audio I/O
2-channel LPCM audio from SDI
Audio input connector
Ch 1&2 48kHz LPCM from SDI
Compatibility
Operating system
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2638)
Minimum host requirements
USB 2.0 port – We recommend USB3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Motherboard
Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic
Supported cameras
Cameras and camcorders with a SDI output
Software compatibility
UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
8.1cm x 7.4cm x 1.9cm
3.2” x 2.9” x 0.75”
Power supply
Powered by USB (5V / 580mA)
Weight
139 g (0,30 lb)
Package content
1x 3ft USB 3.0 cable (Type-A to Type-B)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
