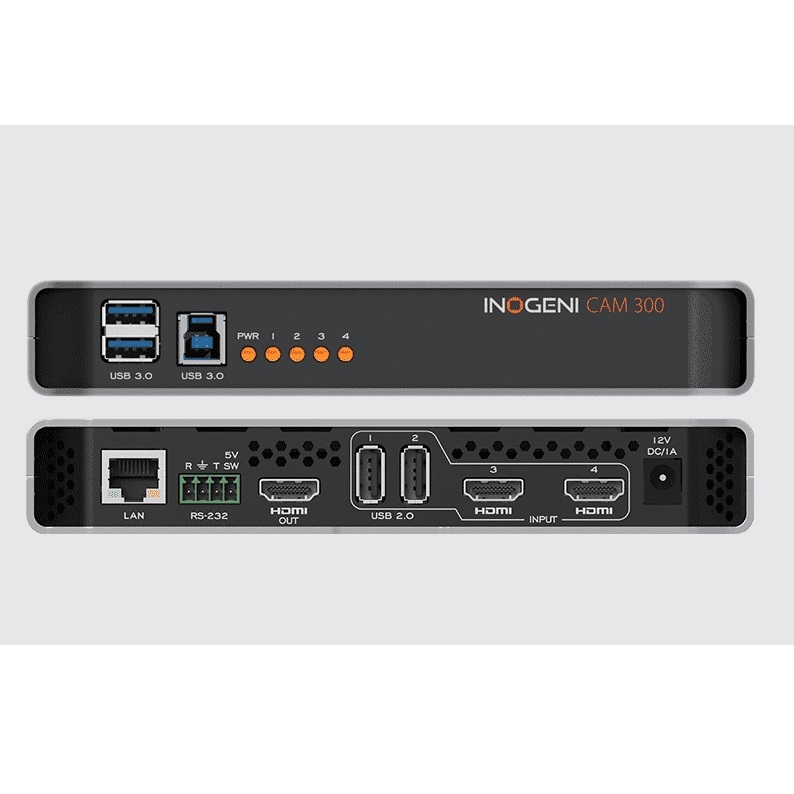

Inogeni CAM300 Switch 1 of 4 USB/HDMI cameras to USB 3.0
Mô tả ngắn
Inogeni CAM300 Switch 1 of 4 USB/HDMI cameras to USB 3.0
Switch between 2 USB and 2 HDMI sources: 2x USB camera, MJPEG or H264, 2x HDMI 1080p60
Outputs to an uncompressed 1080p60 USB 3.0 and HDMI connection
Control interface: LAN, RS-232, USB
Embedded audio in USB and HDMI and line level stereo audio support
Hotline: 0918 642 886
Inogeni CAM300 Switch 1 of 4 USB/HDMI cameras to USB 3.0 - Ideal for classrooms, with this 4 video sources selector (switcher), benefit from instant seamless switching and automatic connection to any app—without drivers.
- 4 video cameras sources (2 USB and 2 HDMI) clean switcher into a single USB 3.0 interface
- Engage a dynamic presentation and switch easily the camera with a push button
- Change camera and video configuration without cutting the flow of your presentation
- Ideal for remote education, collaborative meetings, webinars or live streaming
- Compatible with the Q-SYS Core processors
- Output: Uncompressed video on USB 3.0, MJPEG on USB 2.0 and HDMI 1080p60
- Audio I/O and mixer via the INOGENI Control App
- Controllable by LAN & RS-232
- Cost-effective solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant
Specs:
|
Feature summary |
|
4:1 2x HDMI & 2x USB 2.0 Camera selector Smooth video switch HDMI 1080P60 + USB3.0 output |
|
Video Inputs |
|
#1- 1 x USB 2.0 camera MJPEG or H264 (*) Depends on the camera specifications Supported USB 2.0 cameras #2- 1 x USB 2.0 camera MJPEG or H264 (*) Depends on the camera specifications Supported USB 2.0 cameras #3-HDMI 1080p30 #4-HDMI 1080p30 |
|
Video Outputs |
|
USB 3.0 uncompressed 1080p60 HDMI 1080p60 |
|
Audio Inputs |
|
HDMI embedded PCM USB camera audio |
|
Audio Outputs |
|
USB 3.0 PCM stereo, audio follow input. |
|
Control Options |
|
Front buttons RS-232 LAN USB |
|
IP Interface |
|
DHCP not supported. Static IP address configuration through our Control App. |
|
Video Selection Response Time |
|
Less than 0.2 second for switching between USB inputs. Less than 0.2 second for switching between HDMI inputs with same video resolution. Less than 0.2 second for switching between USB input and “active” HDMI input and vice-versa. Up to 2 seconds switching between HDMI inputs if video resolutions are different. *Active HDMI input is the last selected HDMI input. |
|
Motherboard & Laptop |
|
Compatible with all processors and chipsets. Intel, Renesas, ASMedia and Fresco Logic |
|
Camera Supported |
|
Cameras and camcorders with an HDMI, DVI or USB 2.0 output |
|
Software Compatibility |
|
UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2. Compatible to: Teams, Zoom, Skype, Webex, Hangout, etc. |
|
Adapter / Cables Included |
|
Power supply, USB 3.0 cable, RS-232 terminal block adapter. |
|
Weight / Dimensions |
|
1 lb (469 g) 7 1/4'' x 4 1/2'' x 1 1/4'' (L x W x H) |
|
Operating Temperature |
|
0° to 45° C 32° to 113° F |
|
Storage Temperature |
|
-40° to 105° C -40° to 221° F |
|
Relative Humidity |
|
0% to 90% non-condensing |
|
Power |
|
12V, 500mA (adapter included) |
