Inogeni SHARE2U Mix 2 USB or HDMI cameras to USB 3.0
Mô tả ngắn
Inogeni SHARE2U Mix 2 USB or HDMI cameras to USB 3.0
Mix 2 cameras from 3 sources (2 USB 2.0 and 1 HDMI)
Engage a dynamic presentation and easily switch up to 14 mix setup videos
Change camera and video configuration without cutting the flow of your presentation
Hotline: 0918 642 886
This easy Plug-And-Go mixer capturing 2 Picture-In-Picture or side-by-side video sources in one video flow is equally perfect to enhance the experience of your HyFlex classes and collaborative meetings.
- Mix 2 cameras from 3 sources (2 USB 2.0 and 1 HDMI)
- Engage a dynamic presentation and easily switch up to 14 mix setup videos
- Change camera and video configuration without cutting the flow of your presentation
- Ideal for remote education, collaborative meetings, webinars or live streaming
- Compatible with the Q-SYS Core processors
- Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
- Audio I/O and mixer via the INOGENI Control App
- Controllable by LAN & RS-232
- Cost-effective solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- TAA-compliant

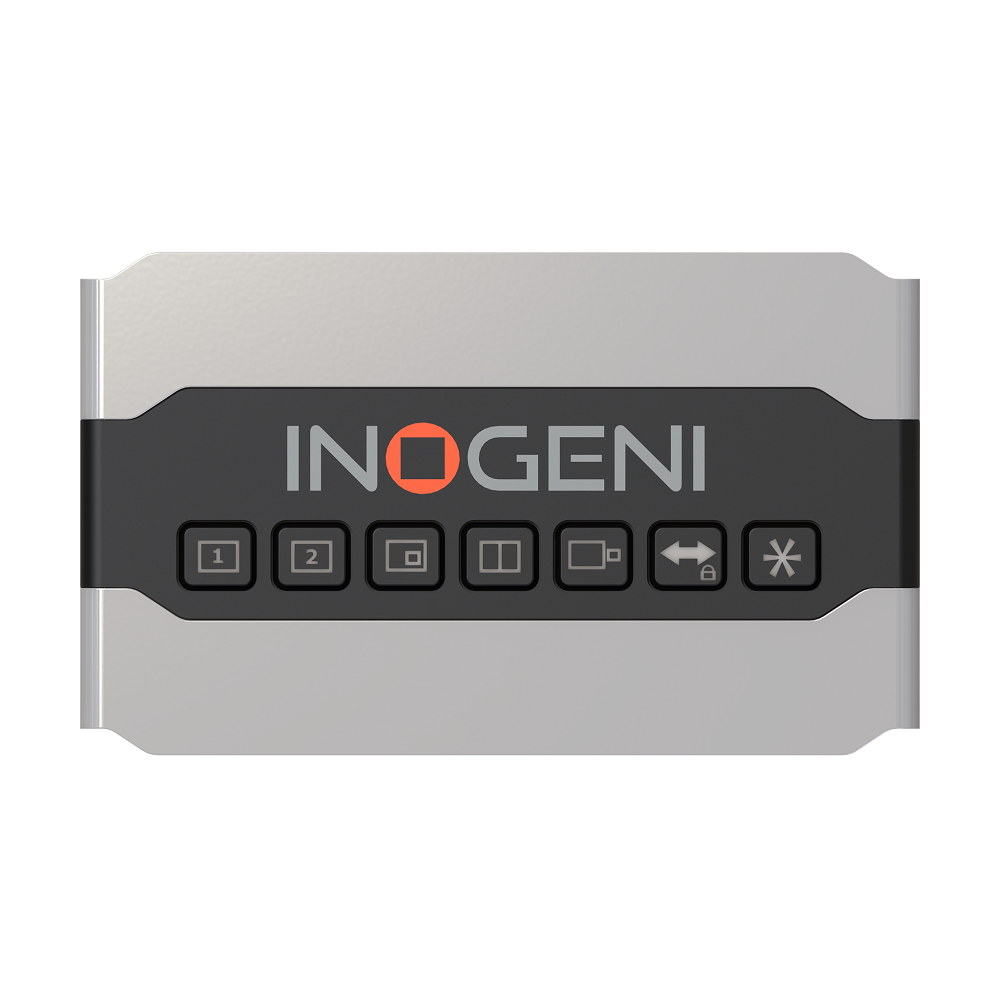

The SHARE2U Dual USB Camera to USB 3.0 Pro AV camera mixer can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on the top of the device to control it manually.
You can use the camera mixer feature of the SHARE2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.
With the push of a button, you can easily switch up to 14 mix setup videos.
SPECIFICATIONS:
|
Video Input 1 |
|
|
Connector |
1x USB 2.0 camera (MJPEG or H264). |
|
Video Resolutions |
Depends on the camera specifications. |
|
Video Input 2 |
|
|
Connector |
1x USB 2.0 camera (MJPEG or H264). |
|
Video Resolutions |
Depends on the camera specifications. |
|
Connector |
1x HDMI |
|
Video Resolutions |
1080p, 720p and 640x480 |
|
Frame Rates |
Up to 30 Hz, all formats. |
|
Analog input |
Analog stereo, line level, 3.5mm jack. |
|
Analog output |
Analog stereo, line level, 3.5mm jack. |
|
HDCP Copy protection |
The device will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. |
|
Mixer Control |
The Mixer feature can be controlled by the following interfaces: HID RS-232 Keypad INOGENI REMOTE LAN *** Click 2 times on “2” button of the keypad in order to switch between USB and HDMI inputs. Same behavior with all the other control interfaces. |
|
IP Interface |
DHCP not supported Static IP address configuration through our Control App |
|
Output |
|
|
Connectors |
1x USB 3.0 to host. 1x HDMI output. Same video content over USB 3.0 and HDMI outputs. |
|
Color Space |
YCbCr (YUY2) 4:2:2 8-bit. |
|
Video Scaler |
Automatic hardware based. |
|
Color Space Conversion |
Automatic hardware based. |
|
Sampling Conversion |
Automatic hardware based. |
|
Frame Rate Conversion |
Automatic hardware based. |
|
USB expansion |
2x USB 3.0 ports for expansion purposes. The devices connected will appear to the host. |
|
Audio |
|
|
Audio input |
2-channel LPCM 48kHz audio from Line input or embedded in HDMI |
|
Audio output |
2-channel LPCM 48kHz audio Line level |
|
Compatibility |
|
|
Operating System |
NO driver installation necessary. Windows 7 and above (32/64-bit) macOS 10.10 and above Linux (kernel v2.6.38 and above) Android |
|
Host Requirements |
USB 3.0 port Minimum 4GB RAM Intel Core i5 Graphic card with its own memory for on-screen rendering applications. |
|
Motherboard |
Compatible with all motherboards: Intel, Renesas, ASMedia, and Fresco Logic. |
|
Cameras Supported |
UVC-compliant cameras for USB inputs. HDMI sources up to 1080p30. |
|
Software Compatibility |
UVC-compliant. Runs with all software compatible to DirectShow, V4L2, QuickTime and AVFoundation. |
