Planar Luminate Ultra W Series Outdoor MicroLED Video Walls
Mô tả ngắn
Planar Luminate Ultra W Series Outdoor MicroLED Video Wall

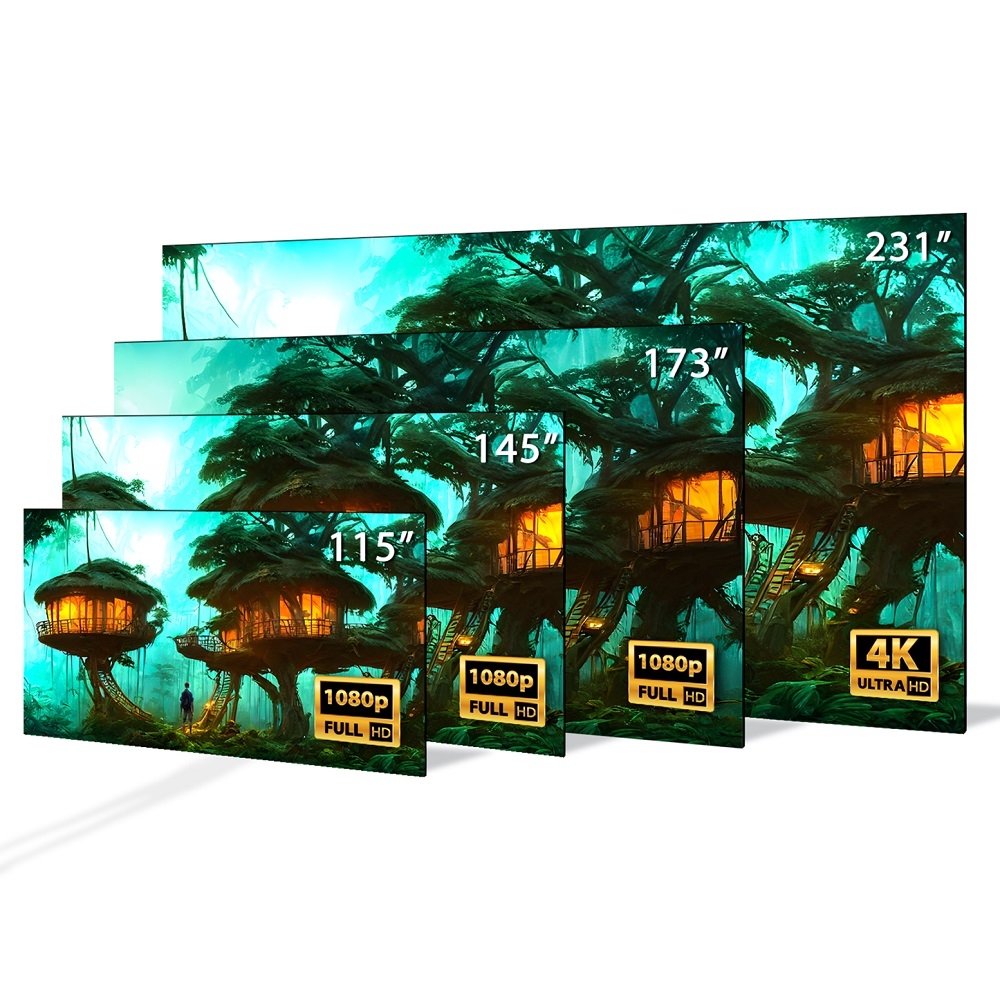

Preconfigured 115”, 145”, 173” & 231” sizes
Configurable with 1.3, 1.6 & 2mm pixel pitches
3,000-nit brightness
GOB protective coating
Outdoor, MicroLED
Hotline: 0918 642 886
Planar® Luminate™ Ultra W Series MicroLED video wall displays are designed to bring high-detail imagery and video to outdoor environments with close viewing distances. Their 16:9 aspect ratio is ideal for Full HD and 4K cinema and sports media, while fine pixel pitch supports comfortable viewing from as close as 8 feet. High brightness ensures visibility even in direct sunlight, and waterproof Glue-On-Board (GOB) technology withstands harsh outdoor environments.
High Bright, Fine Details
Planar Luminate Ultra W Series is suitable for every sunny-day application with its 3,000-nit brightness and fine pixel pitch. They are excellent for outdoor cinema, sports stadium concourse signage, quick-serve restaurant kiosks and more. They thrive in high ambient light indoor spaces as well.
MicroLED Might
Planar Luminate Ultra W Series features advanced MicroLED technology that delivers more brightness, excellent color uniformity, better overall contrast and deeper blacks. MicroLEDs also use less power and produce less heat.
Weatherproof
Planar Luminate Ultra W Series features an IP65 Ingress Protection Rating which means displays are dust tight and protected against even powerful water jets, making them an exciting and viable option in any weather.
More Protection
The displays have a proprietary protective coating that fills the tiny gaps between LEDs adding ruggedness and weather resistance. The coating also increases visual contrast for darker black levels.
Easy Access
Front-side installation and service shrink the overall video wall footprint and virtually eliminates servicing space needed behind the wall.
Specifications:
|
Preconfigured Model |
HD 115 |
HD 145 |
HD 173 |
UHD 231 |
|
Controller |
Colorlight Z5 |
|||
|
Display Technology |
MicroLED |
|||
|
Dislpay Diagonal |
115” |
145” |
173” |
231” |
|
Display Size, with Mounts (W x H x D) |
8.4’ x 4.7’ x 3.76” |
10.5’ x 5.9’ x 3.76” |
12.6’ x 7.1’ x 3.76” |
16.8’ x 9.4’ x 3.76” |
|
Display Resolution |
1920x1080 |
3840x2160 |
||
|
Display Weight, with Mounts (lbs) |
349 |
521 |
751 |
1,131 |
|
Power Consumption Max |
3,360 |
5,250 |
7,560 |
13,440 |
|
Brightness Max, Calibration On (cd/sq) |
3,000 |
|||
|
Supported Frame Rate |
50 & 60Hz |
|||
|
Color Temperature (k) |
3,000-10,000 adjustable |
|||
|
Luminance Variation (Uniformity-White) |
97% |
|||
|
Contrast |
10,000:1 |
|||
|
Viewing Angle (50% brightness) |
>170° horizontal; >170° vertical |
|||
|
Front Access Installation/Service |
Yes |
|||
|
Refresh Rate |
3,840Hz |
|||
|
Operating Temperature/Humidity |
-4° to 122° F | -20° to 50° C (10-80% RH, non-condensing) |
|||
|
Storage Temperature/Humidity |
-31° to 140° F | -35° to 60° C (10-85% RH, non-condensing) |
|||
|
Ingress Protection Rating |
IP65 Front/Back |
|||
|
Video Input Resolution |
4096 x 2160 |
|||
|
Runtime Duty Cycle (Hours/Days) |
24x7 |
|||
|
Package Includes |
Display wall, Video Controller, Wall mounts, Signal cables, Power cables, Trim, Spare module (May vary by region) |
|||
|
Model |
LUW 1.3 |
LUW 1.6 |
LUW 2.0 |
|
Pixel Pitch (mm) |
1.3 |
1.6 |
2.0 |
|
LED Package |
MicroLED |
||
|

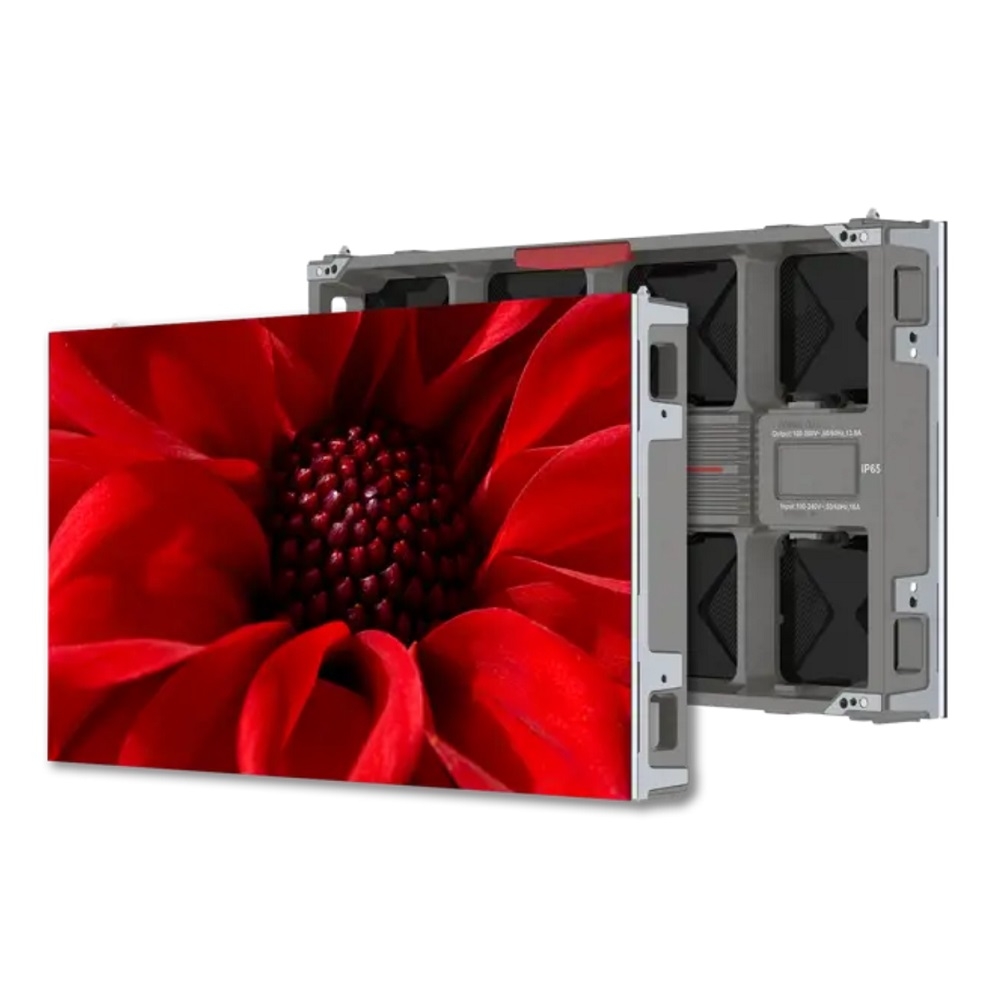

Cabinet Size (W x H x D) |
25.19” x 14.17” x 2.76” (640 x 360 x 70 mm) |
||
|
Cabinet Diagonal |
28.9” (734.06mm) |
||
|
Cabinet Area (m2) |
0.2 |
||
|
Cabinet Resolution |
480x270 |
384x216 |
320x180 |
|
LEDs per Cabinet |
129,600 |
82,944 |
57,600 |
|
Modules/Cabinet (W x H) |
4 x 1 |
||
|
Module Resolution |
120x270 |
96x216 |
80x180 |
|
Module Size (W x H) |
160x 360mm |
||
|
Power Consumption, Max (watts) |
210W/cabinet; 840W/m2 |
||
|
Line Voltage |
100~240v AC, 50/60Hz |
||
|
Cabinet Weight (per display) |
≤17.64lbs |
||
|
Cabinet Weight (per m2) |
≤ 70.55lbs |
||
|
Mounting Orientation |
Wall, Faceted |
||
|
Installation/Service Access |
Front & Rear |
||
|
LED Lifetime (50% brightness) |
100,000 hrs |
||
