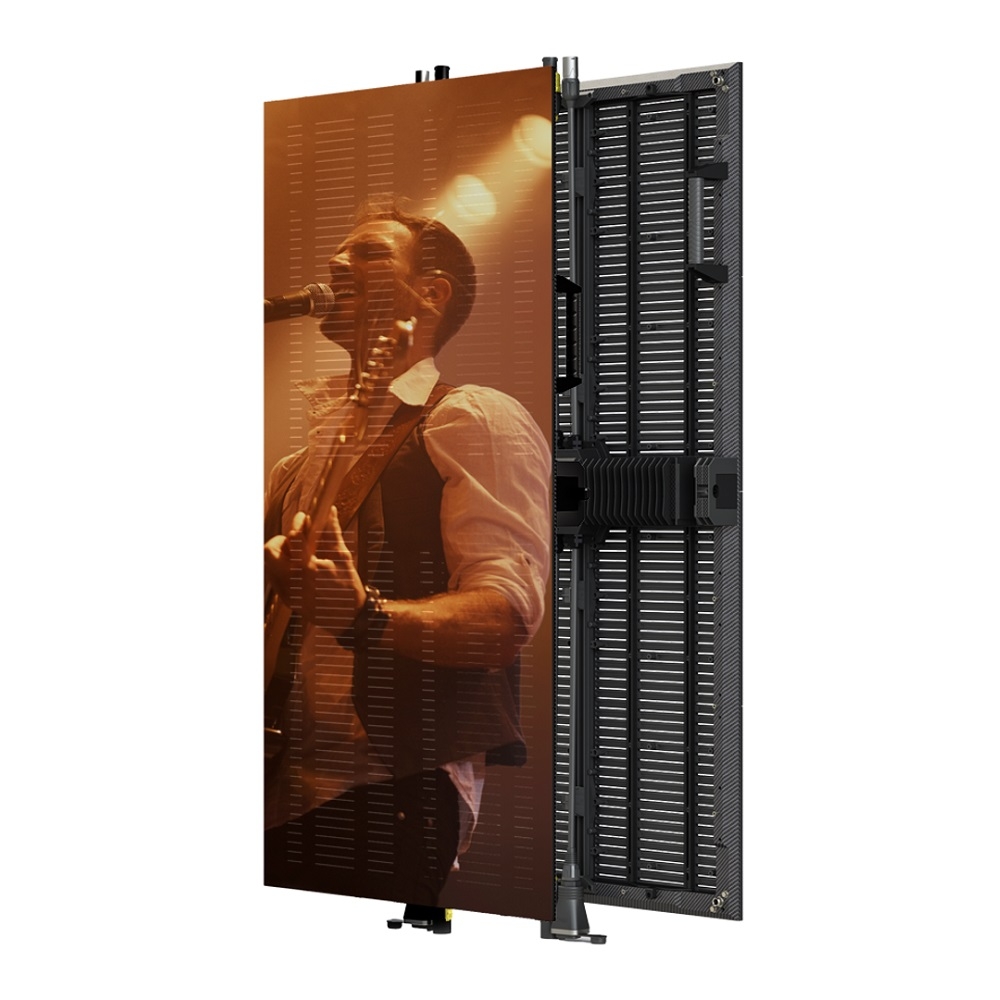

Planar CarbonLight CLM Series Mesh LED Displays
Mô tả ngắn
Planar CarbonLight CLM Series Mesh LED Displays
5.9, 6.9 & 10.4mm pixel pitches
See-through and solid mesh designs
Carbon fiber construction
IP65 outdoor protection rating
Indoor, outdoor
Hotline: 0918 642 886
Planar® CarbonLight™ CLM Series thin and lightweight mesh LED displays are designed for indoor or outdoor environments and feature transparent and non-transparent carbon fiber for low wind resistance and sound transmissions for unique viewing experiences. Its modular design paired with high-strength carbon fiber casing fits a wide range of simple or complex hanging or free-standing applications.
Carbon Fiber Strength
Planar® CarbonLight™ LED Displays share a patented carbon fiber construction that makes them uniquely lightweight, thin and strong. Their refined mechanical construction and innovative features enable fast and versatile installations that support creativity and catch the eye.
Weatherproof
The lightweight displays feature an IP65 Ingress Protection Rating which means they are dust tight and protected against even powerful water jets. The mesh design lets wind pass through, making it an exciting option for outdoor events.
Quick-Service Bracketry
Planar CarbonLight bracketry accommodates fast servicing and enables displays to be removed and installed at any location in the video wall without disrupting the overall layout.
Specifications:
|
Model |
CLM5.9 |
CLM5.9 S |
CLM6.9 |
CLM10.4 |
|
Pixel Pitch (mm) |
5.9 |
5.9 |
6.9 |
10.4 |
|
Transparent |
Yes |
No |
Yes |
Yes |
|
Resolution |
84 x 168 |
72 x 144 |
96 x 96 |
|
|
Cabinet Size (WxHxD) |
500 x 1000 x 71mm | 19.69 x 39.37 x 2.8in |
500 x 1,000 x 45mm | 19.69 x 39.37 x 1.77in |
||
|
Cabinet Weight |
6.9kg | 15.21lbs |
6.5kg | 14.33lbs |
4.8kg | 10.6lbs |
|
|
Weight Bearing Capacity (per cabinet) |
1,000kg** | 2,204lb** |
1,000kg** | 2,204lb** |
||
|
Power Supply |
Dual |
Dual |
||
|
Power Consumption, Max (watts) |
300/Cabinet | 600/m2 | 56/ft2 |
300/Cabinet | 600/m2 | 56/ft2 |
||
|
Power Consumption, Typical (watts) |
100/Cabinet | 200/m2 | 19/ft2 |
150/Cabinet | 300/m2 | 28/ft2 |
||
|
Line Voltage |
100-240V AC, 50/60Hz |
100-240V AC, 50/60Hz |
||
|
Brightness Max |
5,000 cd/m2 |
5,000 cd/m2 |
||
|
Contrast Ratio |
2,000:1 |
2,000:1 |
||
|
LED Refresh Rate |
3,840Hz |
3,000Hz |
4,000Hz |
|
|
Color Temperature, Calibrated |
6,500k |
6,500k |
||
|
Viewing Angle Horizontal, Vertical |
140°, 140° |
140°, 140° |
||
|
Frame Rate |
50-60Hz |
30-70Hz |
||
|
Grey Scale |
16 bit |
14 bit |
||
|
Service Access |
Front, Rear |
Rear |
||
|
Installation |
Hanging, Standing |
Hanging, Standing |
||
|
Lifetime, Typical |
100,000 hrs |
75,000 hrs |
||
|
Environment |
Indoor or Oudoor |
Indoor or Oudoor |
||
|
Protection Rating |
IP65 |
IP65 |
||
|
Operating Temp. |
-20° to 40° C | -4° to 104° F |
-20° to 40° C | -4° to 104° F |
||
|
Storage Temp. |
-35° to 60° C | -31° to 140° F |
-20° to 50° C | -4° to 122° F |
||
