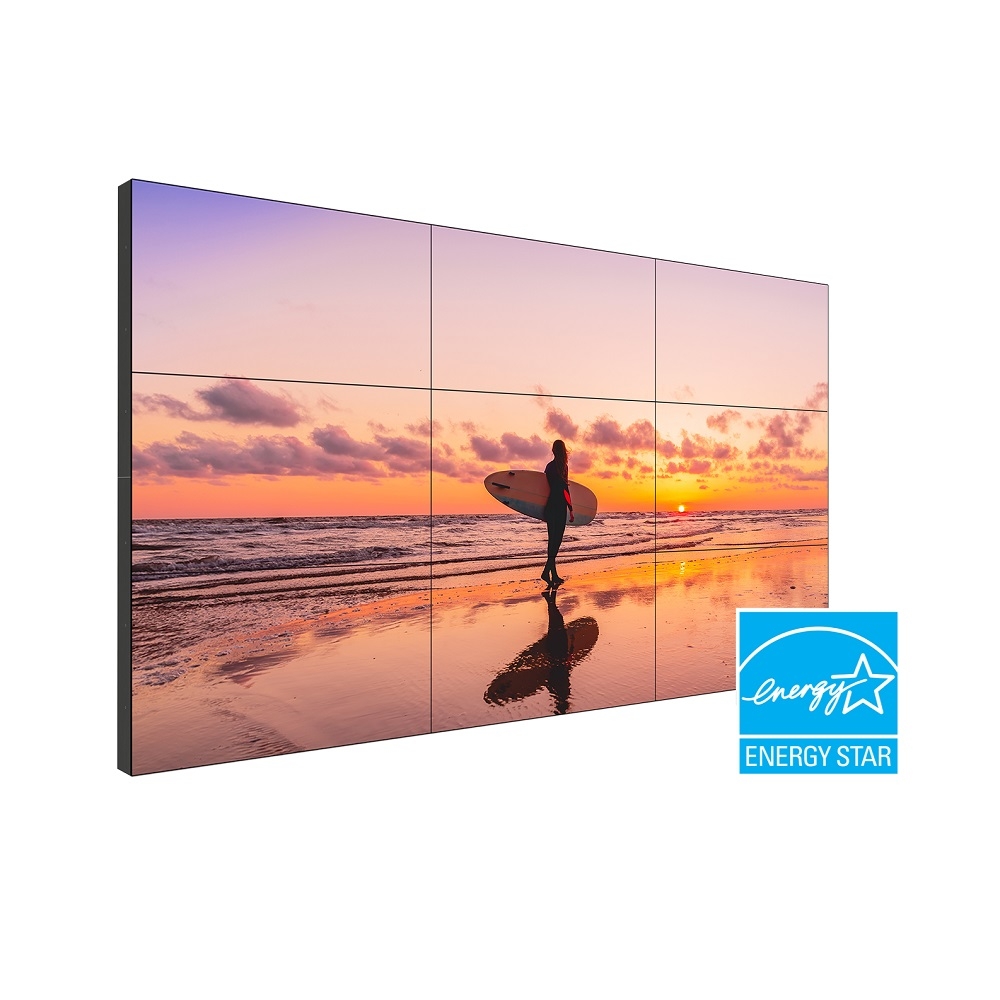

Planar VM Series LCD Video Wall
55” Full HD LCD displays
Tiled bezel widths of 0.88, 2.6 or 3.5mm
500 & 700 nit brightness
24x7 reliability
Planar® VM Series LCD video wall displays deliver a feature-rich, ENERGY STAR® Certified solution for always-on and high ambient light applications. It offers multiple tiled bezel widths and brightness options in addition to high reliability, to meet the video wall digital signage demands of applications such as retail, hospitality, corporate lobbies, casinos and museums.
Always-On Reliability
Planar VM Series is designed for mission-critical environments where displays need to withstand extended or continuous operation and deliver exceptional performance day and night.
Orientation Versatility
The displays enable greater creativity in content development as they can be mounted in landscape orientation for common Full HD or 4K content resolutions, or in portrait orientation for a wider array of deployment environments and applications.
Off-the-Shelf Video Walls
Planar® VM Complete™ is a pre-packaged solution that combines everything necessary to more-quickly select and deploy an ENERGY STAR® Certified, 24x7 LCD video wall. It removes the challenge of separately collecting everything; simply pick the 4K 2x2, or 6K 3x3 array and tiled bezel width that works best in the application. Available in 0.88mm or 3.5mm tiled bezel widths.
Specifications:
|
Model |
VM55MX-M2 |
VM55LX-M2 |
VM55LX-X2 |
VM55LX-U2 |
|
Screen Diagonal |
55” |
|||
|
Native Resolution |
1920 x 1080 |
|||
|
Bezel Width |
0.44mm even |
1.7mm (left/top) 0.9mm (right/bottom) |
2.25mm (left/top) 1.25mm (right/bottom) |
|
|
Tiled Bezel Width |
0.88mm |
2.6mm |
3.5mm |
|
|
Dimensions without handles (W x H x D) |
47.7” x 26.8” x 3.8” 1,210.5 × 681.2 x 97.1mm |
47.8” x 26.9” x 3.8” 1,212.2 × 683.3 x 96.5mm |
47.8” x 26.9” x 3.9” 1,213.4 × 684.2 x 98.0mm |
|
|
Display Technology |
IPS |
|||
|
Backlight |
D-LED with Local Dimming |
|||
|
Contrast Ratio Dynamic |
140,000:1 |
100,000:1 |
100,100:1 |
20,000:1 |
|
Full Viewing Angle |
178° |
|||
|
ENERGY STAR® Certified |
Yes |
— |
Yes |
|
|
Brightness (cd/m² or nits) |
700 |
500 |
500 |
500 |
|
Inputs |
DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 in x 2 (HDCP 2.2), HDMI out, OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 x 1 |
|||
|
OPS Slot |
Yes |
|||
|
Control |
IR, RS232, LAN, Keypad |
|||
|
Image Scaling |
4K at 60Hz upscaling and downscaling |
|||
|
Speakers |
10W x 2 built-in |
|||
|
Mounting |
VESA 400 x 400, Back |
|||
|
Orientation |
Landscape or Portrait |
|||
|
Regulations |
FCC Class A, cTUVus, CE |
|||
