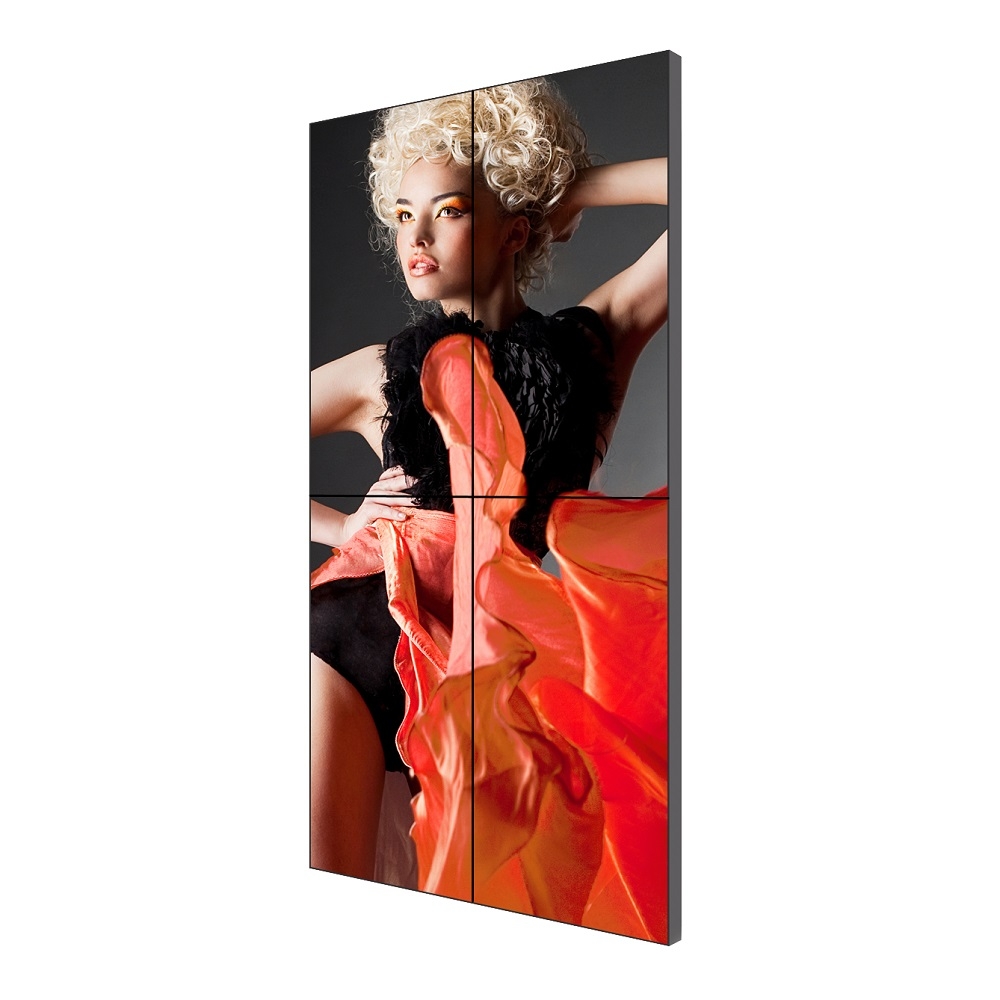

Clarity Matrix G3 LCD Video Wall System
Mô tả ngắn
Clarity Matrix G3 LCD Video Wall System
55” Full HD LCD displays
Tiled bezel widths as narrow as 0.88mm
500 - 700 nit brightness
24x7 operation
Hotline: 0918 642 886
Clarity® Matrix® G3 LCD Video Wall System is the gold standard, marrying superior visual performance and mission-critical reliability with the industry’s narrowest bezels between adjacent displays, for a nearly seamless solution. It has industry’s thinnest ADA-Compliant profile, proven off-board electronics, strong video processing and convenient service access.
Clarity Matrix G3 addresses the challenges faced by all LCD video wall installations including mounting and alignment, reliability and extended operation, service and maintenance access and simple, effective image processing and management.
Always-On Reliability
Clarity Matrix G3 is designed for mission-critical environments where displays need to withstand extended or continuous operation day and night. Control rooms, hospitals and other applications that can’t afford downtime benefit from exceptional performance 24x7.
Powerful Video Control

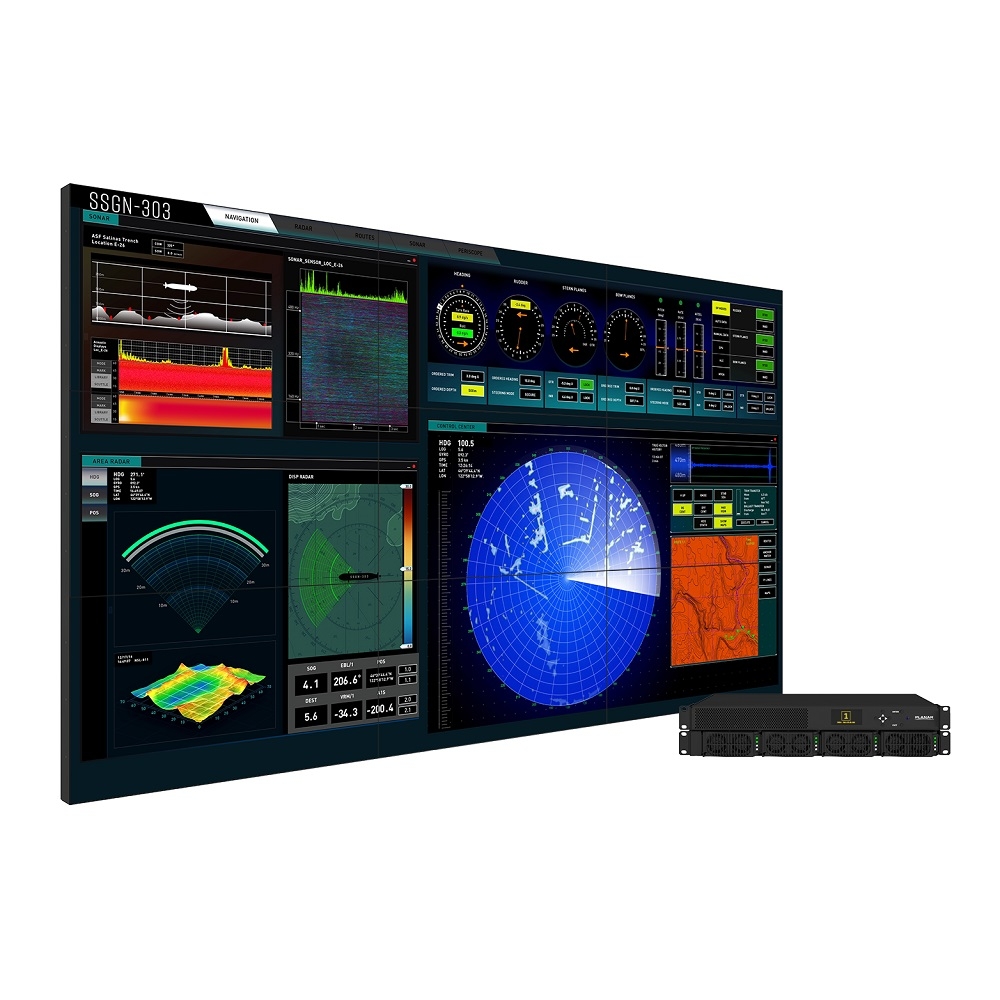

The compact and scalable Planar® WallDirector™ Video Controller drives the video wall at native resolution while its corresponding web-based management software simplifies set-up, configuration, operation and monitoring.
The 1U rack mount video controller captures multiple 4K inputs and can be stacked with additional controllers.
Reliable Off-Board Power
The Planar® Remote Power Supply (RPS) takes heat, depth, noise, weight, service points and electrical outlets away from the video wall and into a rack room. Featuring n+1 redundant, hot swap power modules, the Planar RPS is available with 110V and 220V power and features a low power standby mode when not operating 24x7.
Advanced Processing
Planar® Big Picture Plus™ Video Wall Processing enables users to simultaneously view ultra-high resolution content from several independent sources, scaling content across the entire video wall or any section. It also facilitates Picture-in-Picture.
Source Synchronization
Planar® WallSync™ uses Smart Genlock to automatically ensure perfectly synchronized video playback without manual configuration.
Convenient Mounting
Planar® EasyAxis™ Mounting System features six-axis adjustments for perfect alignment in any array, for precise tiled images. For simplified service, it incorporates a service mode for front and rear in-wall display repair, without removing other displays.
Specifications:
|
Model |
LX55M/MX55M |
LX55X3/MX55X3 |
|
Diagonal |
55in / 1,397mm |
55in / 1,396mm |
|
Tiled Bezel Width |
0.88mm | 0.04in |
2.6mm | 0.10in |
|
Brightness (cd/m² or nits) |
LX: 500 / MX: 700 |
LX: 500 / MX: 700 |
|
Contrast Ratio |
10,000:1 (local dimming on) | 1,100:1 (local dimming off) |
100,000:1 (local dimming on) | 1,000:1 (local dimming off) |
|
Display Dimensions (w/ mount, WxHxD) |
47.6 x 26.8 x 3.6in (1,210.5 x 681.2 x 91.3mm) |
47.7 x 26.9 x 3.6in (1,212.2 x 683.0 x 90.9mm) |
|
Display Weight L | P (w/ mount) |
47lbs / 21.1kg | 49lbs / 22.4kg |
50.6lbs / 23.2kg | 53.5lbs / 24.1kg |
|
Power Consumption (Max/display) |
LX: 235W / MX: 235W |
LX: 150W / MX: 182W |
|
Heat Load (Max/display) |
LX: 802 BTU/hr / MX: 802 BTU/hr |
LX: 512 BTU/hr / MX: 768 BTU/hr |
|
Mounted Depth (wall to display face) |
3.6 in / 91.3 mm |
3.6 in / 90.9 mm |
|
Display Resolution |
1920 x 1080 |
|
|
Cat6A STP Cables/Connectors |
Required (Fiber installations excluded) |
|
|
Full Viewing Angle |
178° |
|
|
Backlight Sensing and Reporting |
At Display Level |
|
|
Display Module Position Sensing |
Yes |
|
|
Acoustic Noise at Display |
Fanless/Noiseless |
|
|
Operating Temperature/Humidity |
5° to 40° C | 41° to 104° F (20-90% relative humidity, non-condensing) |
|
|
Protective / Touch Glass Option |
Planar ERO-LCD technology (Optional) |
|
Mounting
|
Mounting Solutions |
Planar EasyAxis Mounting System (1 per display included) | VESA hole pattern available (Optional) |
|
ADA Compliance |
Yes, clearance from wall <4in |
|
Orientation |
Landscape or Portrait |
|
FloorStanding Mount Bases |
Optional |
|
In-Wall Service |
Front and Rear |
|
Display Module Position Adjustment |
6-axis integrated adjustments |
Planar Remote Power Supply
|
Type |
RPS110 |
RPS220 |
|
Type |
1RU rack mount; 19in (482.6mm) rack |
1.5RU rack mount; 19in (482.6mm) rack |
|
Line Voltage |
100-240 Volts AC autoranging |
200-240 Volts AC autoranging |
|
Power Output |
1200W per output |
|
|
Power Supply Configurations |
1, 2 or 3 outputs |
2, 4 or 6 outputs |
|
Redundancy |
n + 1 redundant option |
|
|
Hot Swap |
Supported for each power supply module |
|
|
Low Power Standby Mode |
<3W in standby mode |
|
|
Power Status |
Diagnostic LEDs per power supply module |
|
|
Maximum Distance from Video Wall |
200ft (60m) standard, 500ft (152.4m) maximum |
|
Planar WallDirector Video Controller
|
Type |
1U rack mount controller drives up to 9 Full HD (1920x1080) panels |
|
Video Inputs |
4x HDMI 2.0 (w/ HDCP 2.2); 1x DisplayPort 1.2 (VC9 only) |
|
Video Outputs |
9-Output Controller: 9x RJ45 8P8C, 1x DisplayPort 1.2 4-Output Controller: 4x RJ45 8P8C, 1x High Speed QSFP+ |
|
Image Scaling |
Planar Big Picture Plus Processing, Planar WallSync, PiP, 4K at 60Hz upscaling and downscaling |
|
Mullion Compensation |
Integrated with pixel by pixel adjustments |
|
Control |
IR Remote Control, RS-232, USB, Network, Planar WallDirector Software |
|
Controller Status |
Diagnostic LEDs, health monitoring and alerts |
|
Maximum Distance from Wall |
200ft (60m) |
