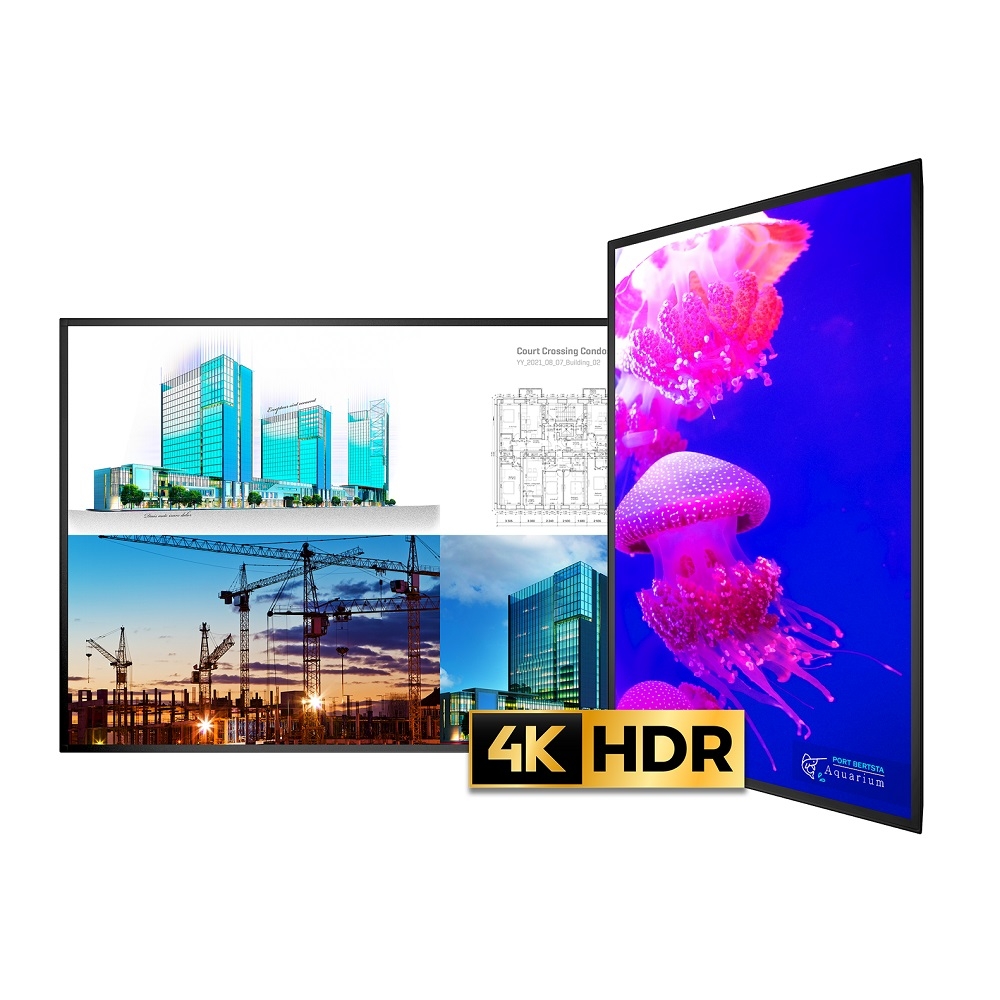

Planar UltraRes X Series 4K LCD Displays
Mô tả ngắn
Planar UltraRes X Series Superior Image Color and Clarity
Hotline: 0918 642 886
Planar UltraRes X Series Superior Image Color and Clarity
Planar® UltraRes™ X Series commercial LCD displays are ideal for collaborative meeting spaces, control rooms, high-impact digital signage and media rooms with their 4K resolution, High Dynamic Range (HDR), high 700-nit brightness and wide color gamut. The displays offer 24x7 reliability, portrait or landscape orientation, multi-source viewing and advanced processing. Multi-point touch models are available, as well as models ruggedized with Planar® ERO-LCD™ (Extended Ruggedness and Optics™) protective glass. Displays are TAA Compliant.
Planar® UltraRes™ X Series displays offer superior visual performance and advanced processing, ideal for 24x7 applications ranging from collaborative meeting spaces to high-impact digital signage.
75”, 85” & 100” sizes
Bright 700 nits
High Dynamic Range (HDR) compatible
Multi-source viewing with Planar® MediaPlex™ Plus processing
Optional Planar® Profile™ Mounting System
Expansion slot for OPS
Secure for government applications
Optional multi-point touch
Optional Planar® ERO-LCD™ protective glass
Specifications:
|
Planar UltraRes X Series |
|||
|
Model |
URX75 URX75-ERO URX75-ERO-T |
URX85 URX85-ERO URX85-ERO-T |
URX100 URX100-ERO URX100-ERO-T |
|
Screen Diagonal |
75" |
85" |
100” |
|
Brightness (typ) |
700 cd/m2 / 630 cd/m2 / 630 cd/m2 |
||
|
Bezel Width |
0.7" (17mm) / 0.1" (3mm) / 0.7” (18.6mm) |
0.9" (23mm) / 0.1" (3mm) / 0.7” (18.6mm) |
1.1” (27.1mm) / 0.1” (3mm) / 0.7” (18.6mm) |
|
Color Gamut |
90% NTSC |
88% NTSC |
98% NTSC |
|
HDR (High Dynamic Range) |
Yes |
||
|
Recommended Usage |
24 x 7 |
||
|
Orientation |
Landscape, Portrait |
||
|
Display Depth |
3.7" (94.2mm) / 3.7" (94.2mm) / 4.1” (103.9mm) |
3.7" (94.3mm) / 3.7" (94.3mm) / 4.1” (103.8mm) |
3.7” (92.9mm) / 3.7” (92.8mm) / 4.1” (103.8mm) |
|
Inputs |
DisplayPort 1.2 x 1, HDMI® 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, OPS x 1 |
||
|
Display Control |
IR, RS-232, LAN, HDMI-CEC, Keypad, Planar UltraRes Web UI |
||
|
Touch Technology |
20 pt IR (Touch models only) |
||
|
Mounting |
Planar® Profile™ Mounting System, VESA |
||
