Planar UltraRes P Series The 24x7 Essentials
Planar UltraRes P Series The 24x7 Essentials

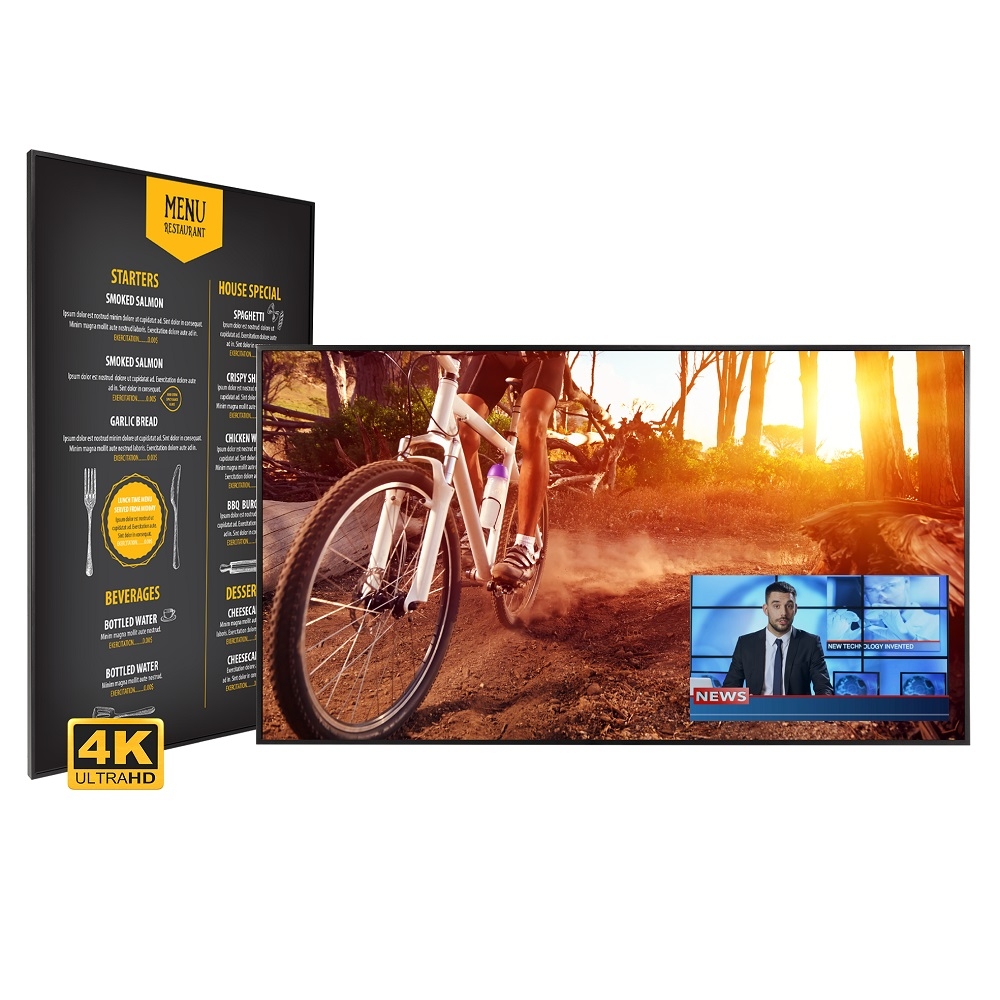

Planar® UltraRes™ P Series large format LCD displays are ideal for applications ranging from dynamic digital signage to collaborative meeting spaces with 4K resolution and commercial-grade construction to suit 24x7 use. View up to four sources simultaneously and receive remote monitoring email alerts if an unexpected event occurs. Multi-point projected capacitive touch models are available, as well as Planar® ERO-LCD™ (Extended Ruggedness and Optics™) protective glass. Displays are TAA Compliant.
Planar® UltraRes™ P Series displays excel in applications from dynamic digital signage to collaborative meeting spaces.
49”, 55”, 65”, 75”, 85" & 98” sizes
Exceptional color accuracy
500-nit brightness
4K @ 60Hz support with DisplayPort 1.2 & HDMI
4K with HDCP 2.2
Designed for 24x7 operation
Secure for government applications
Optional multi-point touch with protective surface
Specifications:
|
Planar UltraRes P Series |
||||||
|
Model |
URP49 URP49-T |
URP55 URP55-T |
URP65 URP65-T |
URP75 URP75-ERO-T |
URP85 URP85-ERO-T |
URP98 URP98-T |
|
Screen Diagonal |
49” |
55” |
65” |
75" |
85" |
98" |
|
Brightness (typ) |
500 cd/m2 / 450 cd/m2 |
|||||
|
Backlight Type |
E-LED |
D-LED |
||||
|
Bezel Width |
0.4” (10.9mm) Top, Right, Left; 0.5” (13.6mm) Bottom / 0.1” (1.5mm) |
0.6" (14.9mm) / 0.6" (15.1mm) |
0.5" (13mm) / 0.6" (15.1mm) |
0.6" (16.5mm) Right, 0.6” (16.2mm) Left / 1.2" (31.3mm) Right, 1.2” (31mm) Left |
||
|
Recommended Usage |
24 x 7 |
|||||
|
Orientation |
Landscape, Portrait |
|||||
|
Display Depth |
2.6” (65.8mm) / 2.7” (68.8mm) |
3.6" (91.2mm) / 4.1" (103.7mm) |
3.5" (89.4mm) / 4.1" (104.5mm) |
3.5" (90mm) / 3.9" (99mm) |
||
|
Inputs |
HDMI 2.0 x 2 (HDPC 2.2), HDMI 1.4 x 2, DisplayPort 1.2 x 2, VGA x 1 |
HDMI 2.0 x 2 (HDPC 2.2), HDMI 1.4 x 2; DisplayPort 1.2 x 1 |
||||
|
Display Control |
HDMI-CEC, IR, LAN, RS-232, Keypad |
HDMI-CEC, IR, LAN, RS-232, Keypad, Mobile App |
IR, RS-232, LAN, Keypad |
|||
|
Touch Technology |
Projected Capacitive: 50-point (Touch models only) |
IR: 20-point (Touch models only) |
||||
|
Mount Dimensions |
VESA: 300x300mm |
VESA: 400x400mm |
VESA: 600x400mm |
|||
|
ENERGY STAR Certified |
Yes |
- |
||||
