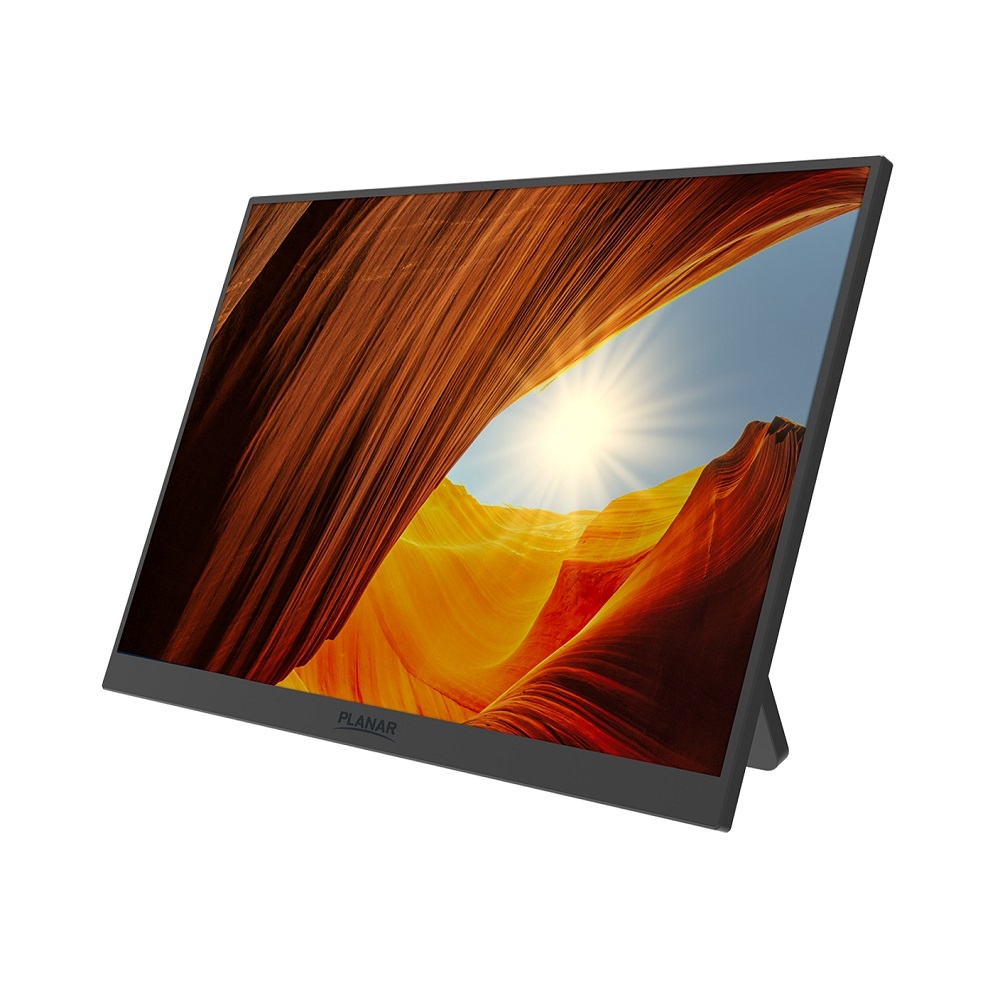

Planar PM16-S Portable Desktop Monitor
Mô tả ngắn
Planar PM16-S 16" Portable Desktop Monitor
16” IPS monitor with Full HD+ resolution
Extended and accurate color range of 100% DCI-P3
High brightness of 400 nits
Built-in stand and protective case
ENERGY STAR® certified
Hotline: 0918 642 886
The Planar® PM16-S is a 16” portable monitor featuring Full HD+ resolution of 1920x1200. The IPS display boasts high brightness and a 100% DCI-P3 color gamut, delivering vivid and accurate visuals. With 120 additional vertical lines when compared to 1080p resolution, it enhances productivity on the go. The built-in desk stand offers a tilt range from 15° to 53°, while the included carrying case protects the display in transit while ensuring easy set-up. The Planar PM16-S is equipped with two USB-C ports, a Mini-HDMI input, built-in speakers and a headphone jack for versatile connectivity.
16” IPS monitor with Full HD+ resolution
Extended and accurate color range of 100% DCI-P3
High brightness of 400 nits
Built-in stand and protective case
ENERGY STAR® certified
|
Specification: |
Detail: |
|
Product Name |
PM16-S |
|
Planar Part Number |
998-4077-00 |
|
Viewable Size |
16" diagonal (13.57 horizontal x 8.48" vertical) |
|
Aspect Ratio |
16:10 |
|
Contrast Ratio (typ) |
1500:1 |
|
Viewing Angle (typ) |
178° Horizontal and 178° Vertical (Specified at CR>10:1) |
|
Response Time (typ) |
3 ms (GTG) |
|
Brightness (Typical) |
400 cd/m² |
|
Display Type |
IPS LCD Active Matrix Flat Panel Display (TFT) |
|
Display Resolution |
1920 x 1200, WUXGA or FHD+ |
|
Tilt Range |
15° to 53° |
|
Palette |
16.7 million colors |
|
Color Gamut |
100% DCI-P3 |
|
Pixel Pitch |
0.1795 mm |
|
Refresh Rate |
48-60 Hz (60 Hz recommended) |
|
Dimensions (W x H x D) |
14" x 9.3" x 0.7" (354.4 mm x 235.7 mm x 17.3 mm) |
|
Dimensions without Stand |
14" x 9.3" x 0.7" (354.4 mm x 235.7 mm x 17.3 mm) |
|
Panel Depth |
0.7" (17.3 mm) |
|
Display Weight |
1.8 lb (0.8 kg) |
|
Shipping weight |
4.2 lb (1.9 kg) |
|
Video Inputs |
USB Type C x 2, Mini-HDMI |
|
HDCP |
Yes |
|
Audio Output |
0.3W x 2, headphone out |
|
External Connections |
USB Type C 24-pin x 2, HDMI 19-pin, 3.5mm headphone out. |
|
Compatibility |
PC and Mac® (adapter may be required for Mac) |
|
Power Supply |
Internal |
|
Power Consumption (max) |
6 Watt Typical (<0.5 Watt standby) |
|
Power Requirements |
AC 100/240 VAC |
|
Operating Temperature |
0° to +40°C (32° to 104°F) |
|
Humidity |
10 - 90% RH (non-condensing) |
|
Mount |
Built-in 75 mm VESA, back |
|
Product Approvals |
FCC-B, CE, cTUVus, RoHS |
|
Recommended Usage |
Up to 16 hours per day |
|
Options / Features |
IPS Wide color consistent viewing angle, Nearly Borderless bezel, Discreet branding, Anti-glare coating, Multi-language display, On screen display (OSD), Built-in Stand |
|
Blue Light Reduction |
Yes |
|
In the Box |
PM16-S 16" Portable Monitor, USB-C Cable, Mini HDMI-HDMI Cable, Adapter, Carrying Case, User's Guide |
|
UPC |
8 10069 81174 1 |
|
HDMI® |
Planar utilizes HDMI® standards in this product. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. |
