Planar Helium PCT2235 Touch Screen Desktop Monitor
Mô tả ngắn
Planar Helium PCT2235
22”, Full HD (1920x1080) touchscreen monitor
10-point multi-touch interactivity
DisplayPort, HDMI® and VGA inputs
Unique, easy-to-use Helium Desk Stand
Hotline: 0918 642 886

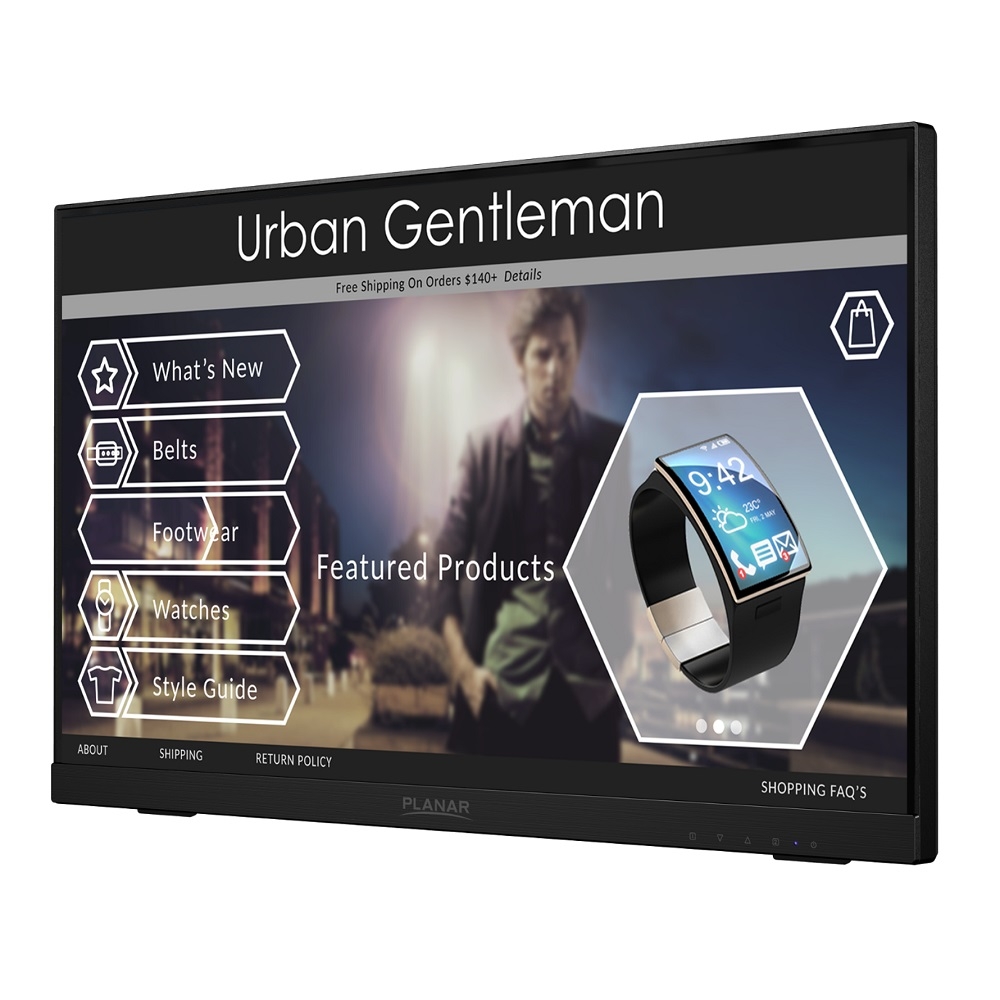

The Planar® Helium™ PCT2235 is a 22" Full HD resolution LCD touch screen monitor with 10-point simultaneous multi-touch capability and integrated speakers. It includes the sleek, easily adjustable, and ergonomically-friendly Helium™ Desk Stand that easily adjusts from completely flat to up to a 70° tilt, creating the ultimate touch experience on the desktop. The monitor is VESA-compatible for mounting in either landscape or portrait orientation.
22”, Full HD (1920x1080) touchscreen monitor
10-point multi-touch interactivity
DisplayPort, HDMI® and VGA inputs
Unique, easy-to-use Helium Desk Stand
|
Specification: |
Detail: |
|
Product Name |
PCT2235 |
|
Planar Part Number |
997-8286-00 |
|
Viewable Size |
21.5" diagonal (18.77" horizontal x 10.56" vertical) |
|
Touchscreen Type |
Multi-Touch Projected Capacitive (up to 10 touch points) |
|
Number of Touch Points |
10 |
|
Touchscreen Interface |
USB |
|
Contrast Ratio (typ) |
1000:1 |
|
Viewing Angle (typ) |
178° H,V |
|
Response Time (typ) |
14 ms |
|
Brightness (w/touchscreen) |
212 cd/m² |
|
Brightness (w/o touchscreen) |
250 cd/m² |
|
Display Type |
IPS Edge-Lit LED LCD |
|
Display Resolution |
1920 x 1080, full HD |
|
Aspect Ratio |
16:9 |
|
Tilt Range |
+15° to +70° and flat |
|
Palette |
16.7 million colors |
|
Pixel Pitch |
0.24825 mm |
|
Refresh Rate |
55 to 75 Hz (60 Hz recommended) |
|
Panel Depth |
1.9" (47.8 mm) |
|
Dimensions (W x H x D) |
19.3" x 11.8" x 1.9" (490.3 mm x 299.4 mm x 47.8 mm) |
|
Dimensions without Stand |
Not applicable. Integrated stand folds into the monitor. |
|
Display Weight |
7.9 lb (3.6 kg) |
|
Display Weight (w/o stand) |
Not applicable. Integrated stand folds into the monitor. |
|
Shipping weight |
10.1 lb (4.6 kg) |
|
Video Inputs |
Analog, HDMI®, DisplayPort |
|
HDCP |
Yes |
|
Audio Output |
2 speakers, 2W/ch |
|
Compatibility |
Windows® 7, 8, 10, 11 - HID Compliant - no drivers needed for basic touchscreen operation |
|
External Connections |
VGA 15-pin, HDMI 19-pin, DisplayPort 20-pin, 3.5 mm audio in, USB (A to B), AC power-in |
|
Power Supply |
Internal Power Supply (AC power) |
|
Power Requirements |
100-240 VAC, 50/60 Hz |
|
Power Consumption (typ) |
27W (<0.5W standby, off) |
|
Operating Temperature |
0 to 40°C |
|
Humidity |
10 - 90% RH (non-condensing) |
|
Mount |
Built-in 100 mm VESA, back |
|
Recommended Usage |
Up to 16 hours per day |
|
Options / Features |
Helium™ stand, Kensington® Security Slot |
|
Blue Light Reduction |
Yes |
|
Product Approvals |
UL/c-UL, CE, FCC-Class B, RoHS |
|
CI-Black-PN |
997-8286-00 |
|
In the Box |
PCT2235 22" Wide Multi-Touch Monitor, Power Cord, VGA Cable, DisplayPort Cable, USB Cable (A to B), Audio-in Cable, User's Guide |
|
UPC |
8 10689 00312 0 |
