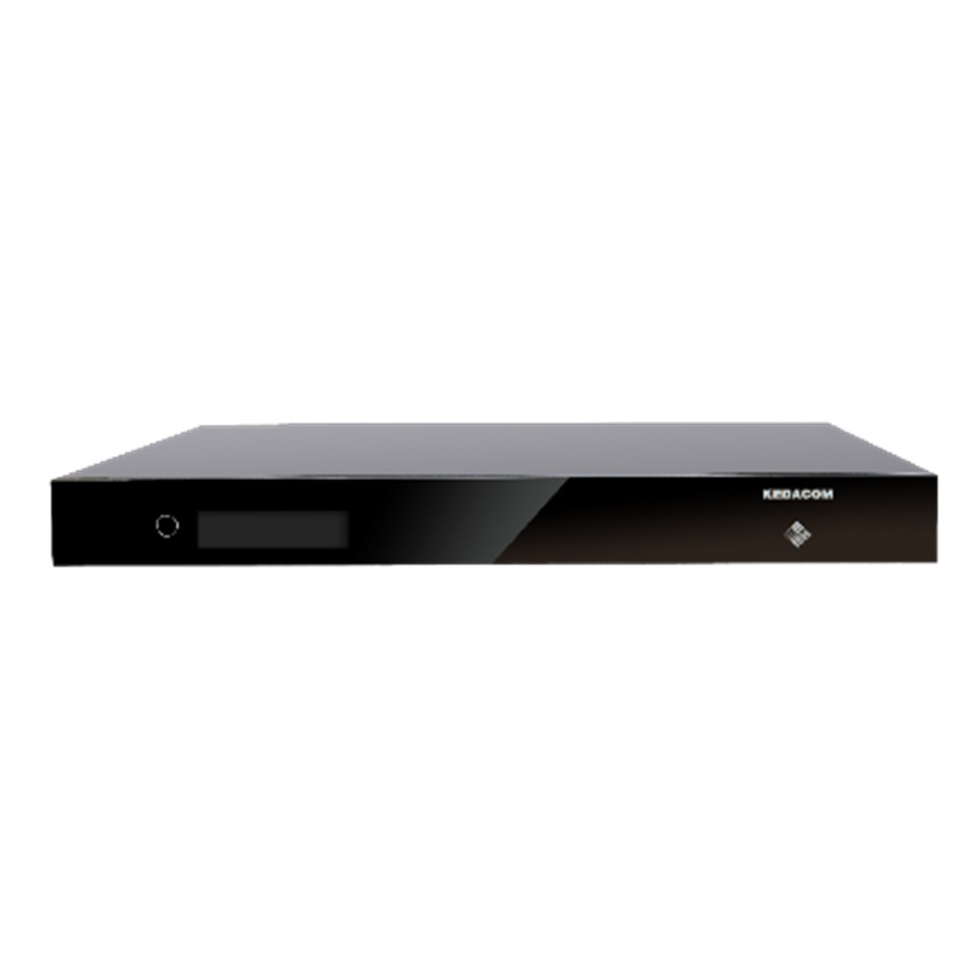

KEDACOM SKY X310 V2 Rack Mount Video Conferencing Endpoint

SKY X310 V2

Sub Models

4K-W

4K

1080P60-W

1080P60

1080P30-W

1080P30

System Standards

H.323, SIP, RTC
H.221, H.225, H.235, H.239, H.245, H.281, H.460

Video Standards

H.261, H.263, H.263+, MPEG-4, H.264, H.264 High Profile, H.264 SVC, H.265

Audio Standards

G.711, G.719, G.722, G.722.1 Annex C / Polycom ®Siren14TM, G.728, G.729, MP3, MPEG4-AAC (LC / LD), Opus

Network Protocols

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, 802.11a/b/g/n/ac

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, 802.11a/b/g/n/ac

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP, 802.11a/b/g/n/ac

TCP / IP, Telnet, HTTPS, HTTP, FTP, DHCP, RTP / RTCP, NTP

IP Protocols

IPv4 and IPv6 dual stack

Conference Bitrate

64Kbps ~ 8Mbps

Video Resolution

Video:
4K (3840 x 2160, -4K model), 1080i/p (1920 x 1080), 720p (1280 x 720), W4CIF (1024 x 576), 4CIF (704 x 576), WCIF (512 x 288), CIF (352 x 288)
Content:
4K (3840 x 2160, -4K model), 1080i/p (1920 x 1080), 720p (1280 x 720), UXGA  (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1366 x 768 / 1280 x 800), XGA (1024 x 768)

Encode Capacity

4K30 + 4K30

1080p60 + 1080p60

1080p30 + 1080p30

Decode Capacity

4K30 + 4K30

1080p60 + 1080p60

Conference Functions

Peer-to-peer / multi-point conferences
Join-in conference / administrator / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses
Support Virtual Conference Room and Cloud conference features, such as cloud conference and search, cloud contact book, recording on cloud, unified upgrading from cloud, etc.
Initiating conference by organization chart

Multi-view Continuous Presence(CP)

Support 2 channel multi-view function, local 2x video input images can be combined into 1 multi-view CP for local video display or send to the remote, multi-view CP layout can be set.

Video Features

Single screen with dual / triple-display or Dual screen with dual-display
Adjustable video parameter
Video input and output local matrix
VGA  loopback when power off
Supports camera preset snapshot and preview

Audio Features

Dual stereo sound
Sampling frequency: 48 kHz
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb

Dual-stream

H.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software or NexPresence transmitter

Network Features

Embedded proxy for NAT / firewall transversal
Intelligent Packet Loss Recovery (IPLR)
Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection
Dynamic rate adjustment

OSD Caption / Logo / Banner

Configurable OSD caption / logo / banner background color, font sizes and fonts
Local images and custom text can be set as OSD logo / banner
OSD caption can be sent as short messages to endpoints or multipoint control units
Support OSD banner scheme
Configurable OSD caption / banner display layout, logo display position

Security Features

Embedded OS
H.235 conference encryption
256-bit AES encryption
TLS and SRTP protocol
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gatekeeper password-protected
HTTPS
IP address blacklist

Management Methods

Remote control
Web interface
NMS manageable
OLED display screen on the device

Maintenance Functions

Event logs can be managed
Factory settings restoration
Loop / image / audio tests
Real-time video / audio bitrate display
Address book and configuration file importing / exporting

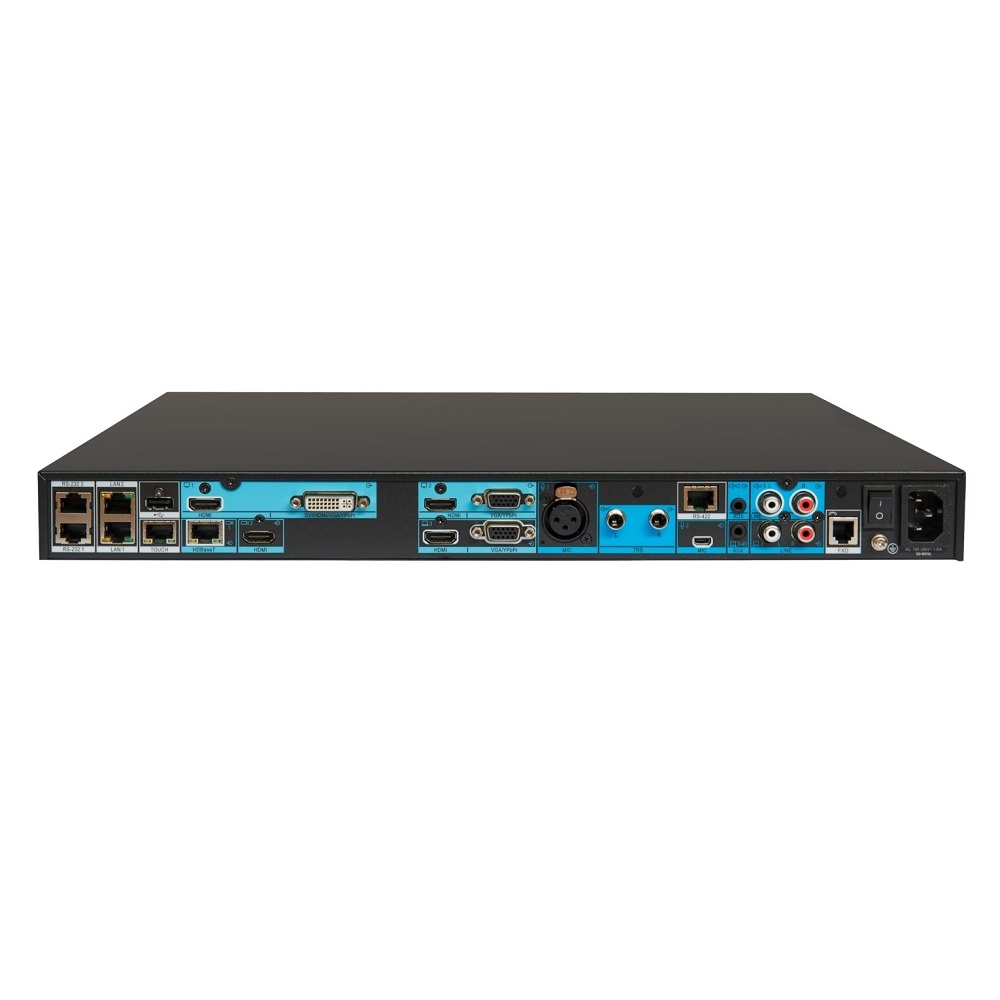

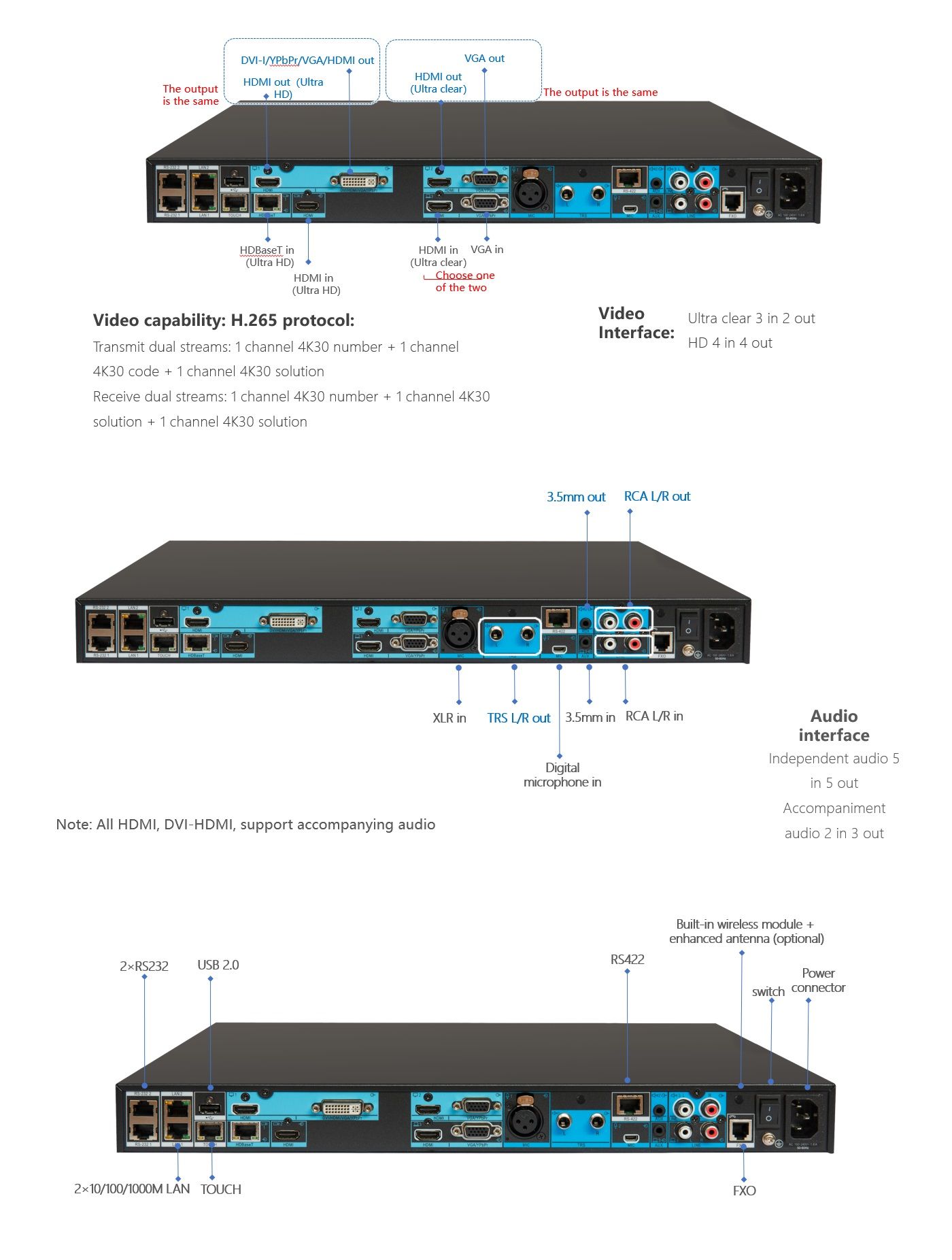

Video Interfaces

Input:
1 x HDBaseT (Camera)
1 x DVI-I/YPbPr/VGA/HDMI (Camera)
1 x HDMI, 1 x VGA (Dual stream, choose 1 from 2 interfaces)
Output:
1 x HDMI, 1 x DVI-I/YPbPr/VGA/HDMI (Same output,1st Display)
1 x HDMI, 1 x VGA(Same output, 2nd Display )

Audio Interfaces

Input:
1 x XLR, 1 x Digital mic, 1 x 3.5mm, 1 x RCA L/R
1 x DVI-I, 1 x HDMI support concomitant audio
Output:
1 x 3.5mm, 1 x RCA L/R, 1 x TRS L/R
1 x DVI-I, 2 x HDMI support concomitant audio

Control Interfaces

1 x Touch interface
2 x RS232
1 x RS422
IR / ZigBee remote control

Conference Pad

Touch X conference touch pad supported
Support control operations via pad including conference initiating and control,  participants management,  volume adjustment, content sharing, camera control, preset operation, exit/end conference, etc

Network Interfaces

2 x 10 / 100 / 1000M Ethernet, RJ45 interface;
1 x Built-in WIFI module

2 x 10 / 100 / 1000M Ethernet, RJ45 interface

2 x 10 / 100 / 1000M Ethernet, RJ45 interface;
1 x Built-in WIFI module

2 x 10 / 100 / 1000M Ethernet, RJ45 interface

2 x 10 / 100 / 1000M Ethernet, RJ45 interface;
1 x Built-in WIFI module

2 x 10 / 100 / 1000M Ethernet, RJ45 interface

Other Interfaces

1 x USB 2.0 (USB configuration, USB recording)

Environmental

Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 53 ~ 106 kPa

Electrical

Power: 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 180W

Mechanical

Net weight: 5.1kg / 11.25lb
Package weight: 7.9kg / 17.42lb
Product dimensions: 44 x 443 x 426mm / 1.73" x 17.44" x 16.77"  (H x W x D)
Package dimensions: 220 x 545 x 605mm / 8.66" x 21.46" x 23.82"  (H x W x D)
