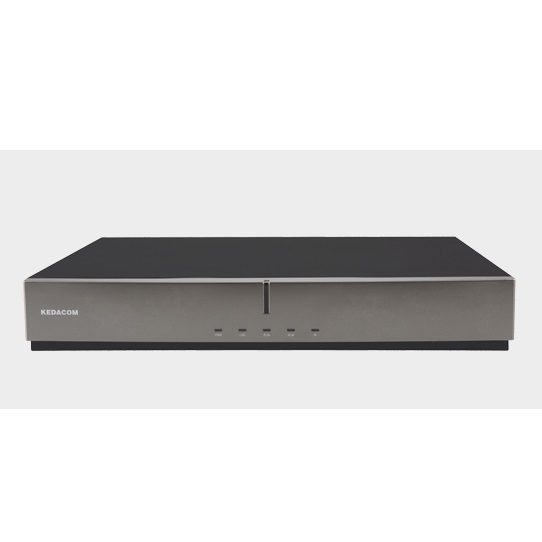

KEDACOM H700 Rack Mount Video Conferencing Terminal

H700

Sub Models

-A

-C

System Standards

H.323, SIP
H.225, H.235, H239, H.245, H.281, H.460

Video Standards

H.261, H.263, H.263+, H.264, H.264 High-Profile, MPEG-4

Audio Standards

G.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14^TM, G.728, G.729, MP3, MPEG4-AAC (LC / LD)

Network Protocols

TCP / IP, Telnet, HTTP, FTP, SNMP, DHCP, RTP / RTCP, NTP, PPPoE

Conference Bitrate

64 Kbps to 8 Mbps

Video Resolution

Video:
1080p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288)
Content:
1080p (1920 x 1080), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)

Video:
1080p (1920 x 1080, decode only), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288)
Content:
1080p (1920 x 1080, decode only), 720p (1280 x 720), UXGA (1600 x 1200), WSXGA+ (1680 x 1050), WSXGA (1440 x 900), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)

Encode Capacity

1080p @ 60 fps + 1080p @ 60 fps / UXGA  @ 60 fps

720p @ 60 fps + 720p @ 60 fps / UXGA  @ 30 fps

Decode Capacity

1080p @ 60 fps + 1080p @ 60 fps / UXGA  @ 60 fps

Video Features

Single screen dual / triple display
Dual screen dual display
Picture in Picture, Picture out Picture

Audio Features

Sampling frequency: 8 kHz to 48 kHz
Acoustic Echo Cancellation (AEC)
Acoustic Noise Suppression (ANS)
Automatic Gain Control (AGC)
Automatic lip synchronization
Mute and dumb

Dual-stream

H.239 / BFCP
Adjustable bandwidth ratio
Wireless content sharing by SkyShare software

Network Features

Embedded proxy for NAT / firewall transversal
Intelligent Packet Loss Recovery (IPLR)
Forward Error Correction (FEC)
DiffServ, IP Precedence (Quality of service [QOS])
IP conflict detection
Automatic PPPoE redial
IP backup

OSD Caption / Logo / Banner

Configurable OSD caption / logo / banner
Local images and custom text can be set as OSD logo / banner
OSD caption can be sent as short messages to terminals or multipoint control units
OSD caption can be scrolled
Configurable OSD banner background color, font sizes and fonts

Security Features

Embedded OS
H.235 conference encryption
AES encryption
Conference password authentication
User authentication and role-based authorization
Advanced setting authentication
Gateway password-protected

Management

Remote control
Configuration can be performed by web GUI
Event logs can be managed
Loop / image / audio tests
Operational state detection
Real-time video / audio bitrate display
Address book importing / exporting

Conference Functions

Point-to-point / multiple conferences
Join-in meeting / chairman / speaker / chime-in request
Calling by E.164 ID, alias and IP addresses

Video Interfaces

1 x DVI-I in / out, 1 x VGA in / out, 1 x CVBS in / out
Main stream:
In: DVI or CVBS
Out: DVI and C simultaneous out
Dual stream:
In: VGA
Out: VGA

Audio Interfaces

1 x RJ11 digital audio in, 1 x XLR 48V phantom power in
2 x RCA audio in / out, 2 x TRS (6.35mm) out
DVI-I adapter to HDMI support audio
Dual channel stereo

Control Interfaces

1 x RS232, 1 x RS422
IR remote control

Network Interfaces

2 x Gigabit network port, RJ45 interface

Other Interfaces

2 x USB (Hardware ready)

Environmental

Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106 kPa

Electrical

Power: 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 80W

Mechanical

Weight: < 8kg / 17.64lb
Dimensions: 1U, 44 x 443 x 360mm / 1.73" x 17.44" x 14.17"
