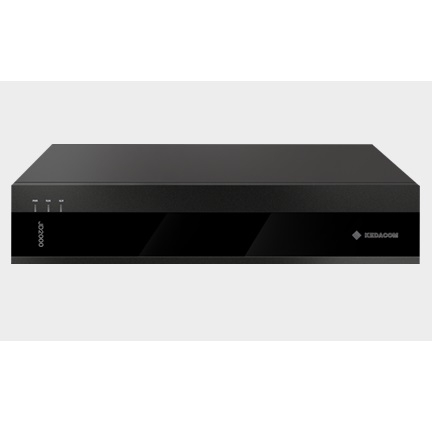

KEDACOM VRS2100-G Multimedia Server

VRS2100-G

System Standards

H.323, SIP
H.225, H.245, H.239

Video Standards

H.261, H.263, H.263+, H.264, H.264 High-Profile, MPEG-4

Audio Standards

G.711, G.719, G.722, G.722.1 Annex C / Polycom Siren14^TM, G.728, G.729, MP3, MPEG4-AAC (LC / LD)

Network Protocols

TCP/IP, FTP, RTP/RTSP, HTTP, SNMP

Conference Bitrate

64 Kbps to 8 Mbps

System Capacity

2 x 2TB HDD storage
Up to 2000 hours video recording @ 2Mbps
15 groups of video recording / playback, 5 groups of live broadcast, 200 users playback / live broadcast

Video Resolution

Video:
1080i/p (1920 x 1080), 720p (1280 x 720), 4CIF (704 x 576), CIF (352 x 288), QCIF (176 x 144)
Content:
UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)

Content Recording

Supports the recording of broadcast figures and terminal-applied conference sites in multipoint conferences and the recording of local figures and multiple streams

VOD and Playback

Conferences can be played back in multiple ways, such as by a web page browser, the Windows Media Player, and a Meeting Conferencing Terminal.

Content Management

Contents can be classified and published and are only available to authorized users

Security Features

AES encryption
User authentication and role-based authorization
NAT and firewall traversal

Management

Logs, remote upgrade / configuration, operating status monitoring
SNMP

Network Interfaces

3 x 10/100/1000M network ports

Environmental

Ground resistance: ≤5Ω
Operating temperature: 0°C ~ 45°C / 32℉ ~ 113℉
Operating humidity: 10% ~ 90%
Atmospheric pressure: 70 ~ 106kPa

Electrical

Power: Dual redundant power supply, 100 ~ 240V AC, 50 ~ 60Hz
Power consumption: Max. 250W

Mechanical

Weight: <10kg / 22lb
Dimensions: 93 x 443 x 566mm / 3.66" x 17.44" x 22.28"
