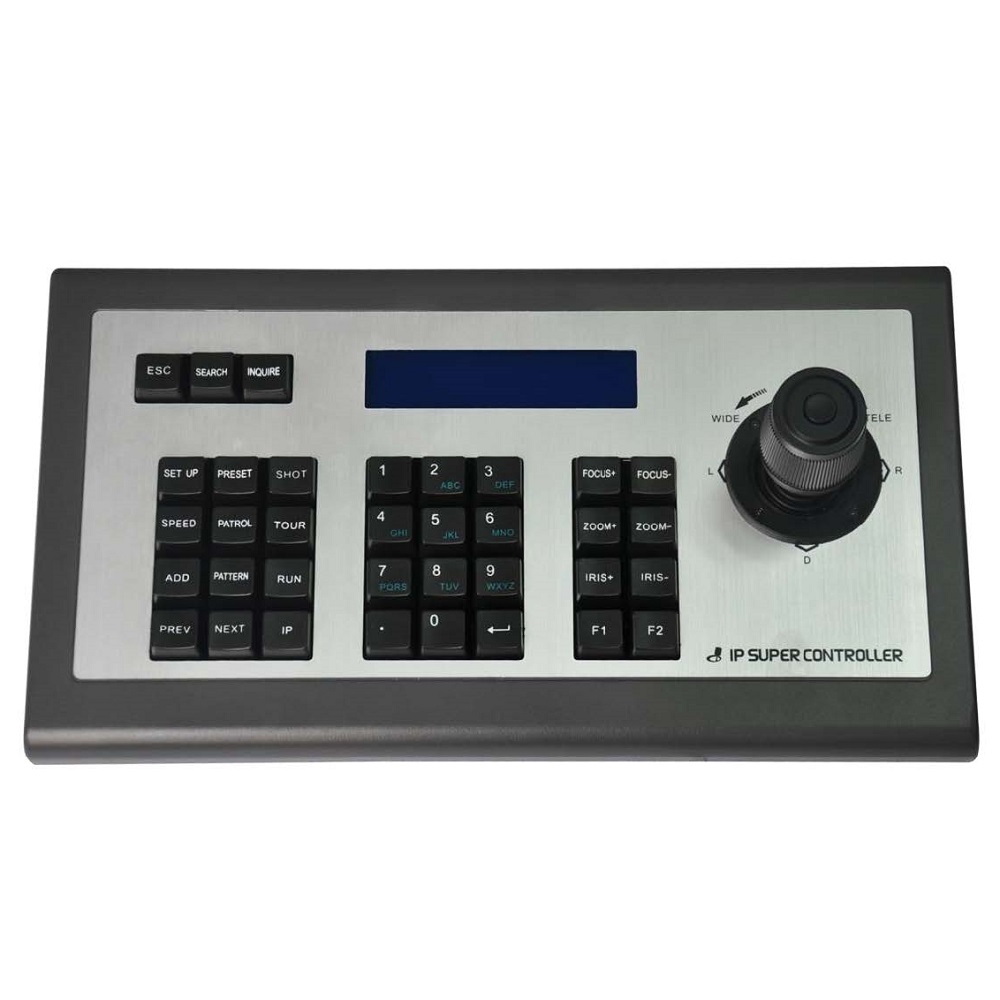

Network Joystick Control Keyboard TLC-35TC
Mô tả ngắn
TLC-35TC network keyboard support standard ONVIF protocol, good compatibility, perfect control of the Telycam IP video camera and other network cameras.
Hotline: 0918 642 886
PRODUCT INTRODUCTION
- Support network protocol, enjoy separate IP address.
- Support Onvif protocol, achieve to control the front-end PTZ cameras.
- Support adding IP devices when keyboard offline, also support auto searching IP devices.
- Max can control 253pc IP devices in the same network segment.
- Support operating IP PTZ many functions, such as focus, zoom, iris, preset, patrol and so on.
- Support IE browser on adding configuration of front-end device parameters..
- Import photoelectric joystick. 160x32 blue dot LCD display.
|
Model |
TLC-35TC |
|
Power supply |
DC12V-2A/inside +outside –/td> |
|
RS485 |
3.81 terminal. TA, TB |
|
RS232 |
DB9 mail head |
|
Ethernet |
1x Ethernet interface, IEEE 802.11b/g/n |
|
Support protocol |
Onvif2.4 |
|
Browser |
IE, Firefox, Chrome, Safari and other popular ones |
|
Working temperature |
0℃~55℃ / 14°F~131°F |
|
Working humidity |
20%~80% frostless |
|
Storage Temperature |
-10℃~60℃ / 14°F~140°F |
|
Storage humidity |
0~90% frostless |
|
Certification |
CE, RoHs, FCC |
|
Warranty |
One year |
Sản phẩm liên quan
Be able to control different brands of cameras
Be able to use different protocols to control camera simultaneously: NDI/VISCA over IP/VISCA/ONVIF
Simple and intuitive panel design to enable control and adjust the image simply
Has a wide range of control interfaces: NDI/Ethernet, RS232, RS485, RS422
