IP Control Keyboard TLC-50TC

Telycam TLC-50TC is a full-featured, easy-to-operate PTZ joystick control keyboard, applied for PTZ camera serial or network remote control, designed to simplify and improve the work and efficiency of video production operators.

Features:

1) TLC-50TC can control different brands of cameras using different protocols at the same time.

TLC-50TC supports NDI (optional), VISCA over IP, VISCA Serial, ONVIF, Pelco-P, Pelco-D, VISCA TCP, VISCA UDP, and many other protocols, allowing users to control multiple cameras with different protocols with one keyboard, or multiple keyboards controlling one camera through a network interface. And it also supports up to 7 cameras of daisy chain control.

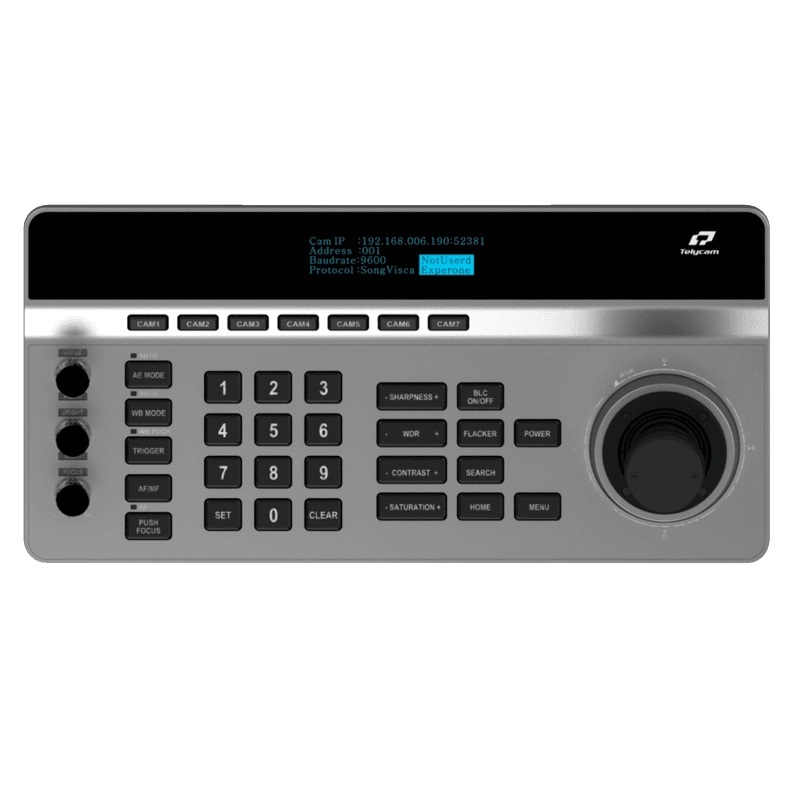

2) TLC-50TC control interface is simple and intuitive.

TLC-50TC is controlled with a four-dimensional joystick, which feels comfortable in the hand and gives smooth control of the camera’s all-around rotation and zooming in and out of the lens.

The control buttons and function knobs are simple and complete, allowing you to set the camera’s exposure mode, white balance mode, and focus mode, as well as adjusting parameters such as sharpness, contrast, saturation, wide dynamic, and anti-flicker, so you can adjust each function according to your personal preferences and scene applications.

The 128 preset positions can be set, recalled, and cleared via the numerical button area.

The TLC-50TC also comes with 7 camera shortcut control buttons, which are both convenient and fast, increasing the speed of switching control back and forth between multiple cameras.

3) TLC-50TC comes with a large screen that displays camera information and detailed control status in high definition.

4) TLC-50TC comes with button backlighting, and automatic backlighting can be selected in low light or dark environments. At the same time, the function button light can indicate the status of the camera’s control mode to the user.

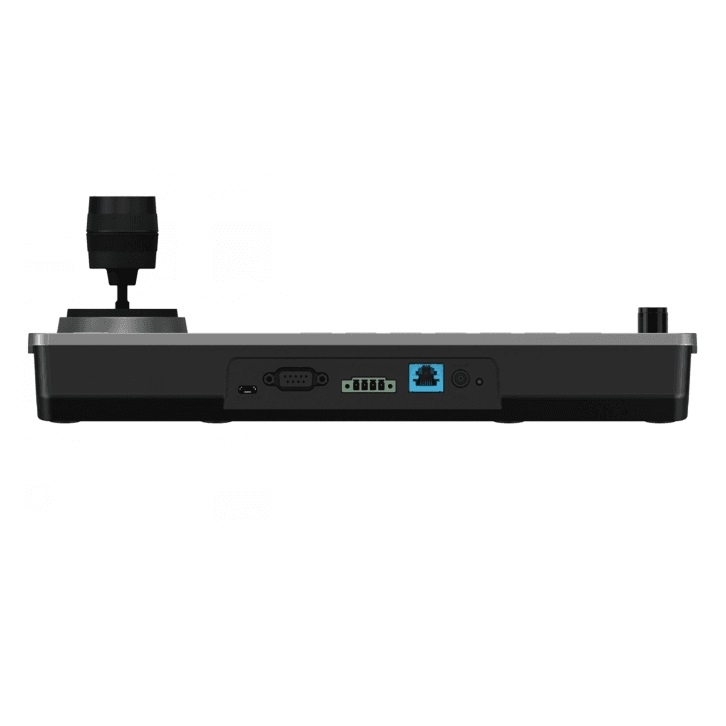

5) The TLC-50TC has a wide range of control interfaces

Whether the user needs RS232, RS485, RS422, or even RJ45 (for network or NDI) control, the TLC-50TC can meet all requirements. The TLC-50TC can be connected to all these interfaces simultaneously.
