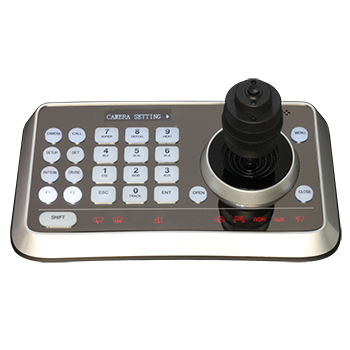

Ismart Mini Keyboard Controller CKB-02
Mô tả ngắn
Ismart Mini Keyboard Controller CKB-02
4D joystick for pan/tilt/zoom/focus control, ergonomic design and excellent finishing;
High brightness OLED display;
Auto backlight keys;
Shortcut keys customization;
Hotline: 0918 642 886
Features:
- 4D joystick for pan/tilt/zoom/focus control, ergonomic design and excellent finishing;
- High brightness OLED display;
- Auto backlight keys;
- Shortcut keys customization;
- Sleep functions;
- Batch program cameras in the systems;
- Support Pelco D/P, VISCA protocols;
- Multi-level protection from unauthorized operation or setting
- Multi-baud rate and protocols;
- 256 address;
- Compact design with portable features.
|
Model |
CKB-02 |
|
Comm. Interface |
RS-485, RS-232 |
|
Protocol |
Pelco-D, Pelco-P, VISCA |
|
Address |
0~255 |
|
Display |
OLED |
|
Joystick |
4-axis |
|
Power |
DC12V |
|
Power Consumption |
<2W |
|
Working Temperature |
0℃ ~ 40℃ |
|
Storage Temperature |
-20℃ ~ +50℃ |
|
Humidity |
≤90% (no condensation) |
|
Dimension |
200mm(L) x 120mm(W) x 103mm(H) |
|
Net Weight |
0.5kg |
|
Baud Rate |
2400bps/4800bps/9600bps/19200bps/38400bps |
