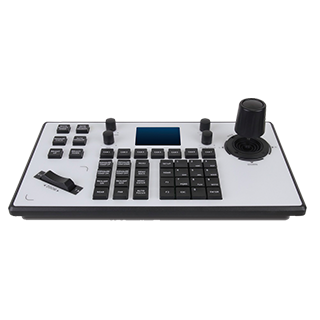

Ismart IP Keyboard Controller CKB-06
Mô tả ngắn
Ismart IP Keyboard Controller CKB-06
Camera control in IP and analog modes;
Full VISCA, ONVIF, PELCO-P/D protocols;
The built-in web server makes configuration interface simple and clear;
Support POE;
Hotline: 0918 642 886
Features:
- Camera control in IP and analog modes;
- Full VISCA, ONVIF, PELCO-P/D protocols;
- The built-in web server makes configuration interface simple and clear;
- Support POE;
- 7 buttons to switch 7 cameras;
- 4D joystick control;
- Rocker switch controls zoom speed;
- Shortcut keys/knobs for common settings;
- TFT LCD screen display.
|
Model |
CKB-06 |
|
White Balance |
Button, Auto, Indoor, Outdoor, One Push, Manual |
|
Exposure |
Button, Auto, Manual, Shutter Priority, Iris Priority |
|
Shortcut Button |
Bright Adjustment, Exposure Gain, BLC, Focus Model Selection, OSD |
|
Shortcut Knob |
R/B Gain, Iris, Pan/Tilt Speed (1-8 Steps), Zoomspeed (1-8 Steps) |
|
Protocol |
Full VISCA, PELCO-D/P, ONVIF |
|
Output |
RS422, RS232, RS485, RJ45 |
|
Joystick |
4D joystick |
|
Screen |
TFT LCD 320x240 |
|
Power Consumption |
≤5W |
|
Power |
DC12V-2A |
|
Work Temperature |
-10°C ~ +55°C / 14°F~131°F |
|
Work Humidity |
20%~80%(non-condensation) |
|
Dimensions(LxWxH) |
321.6mmx179.2mmx105.7mm |
|
Weight |
1.63KG |
