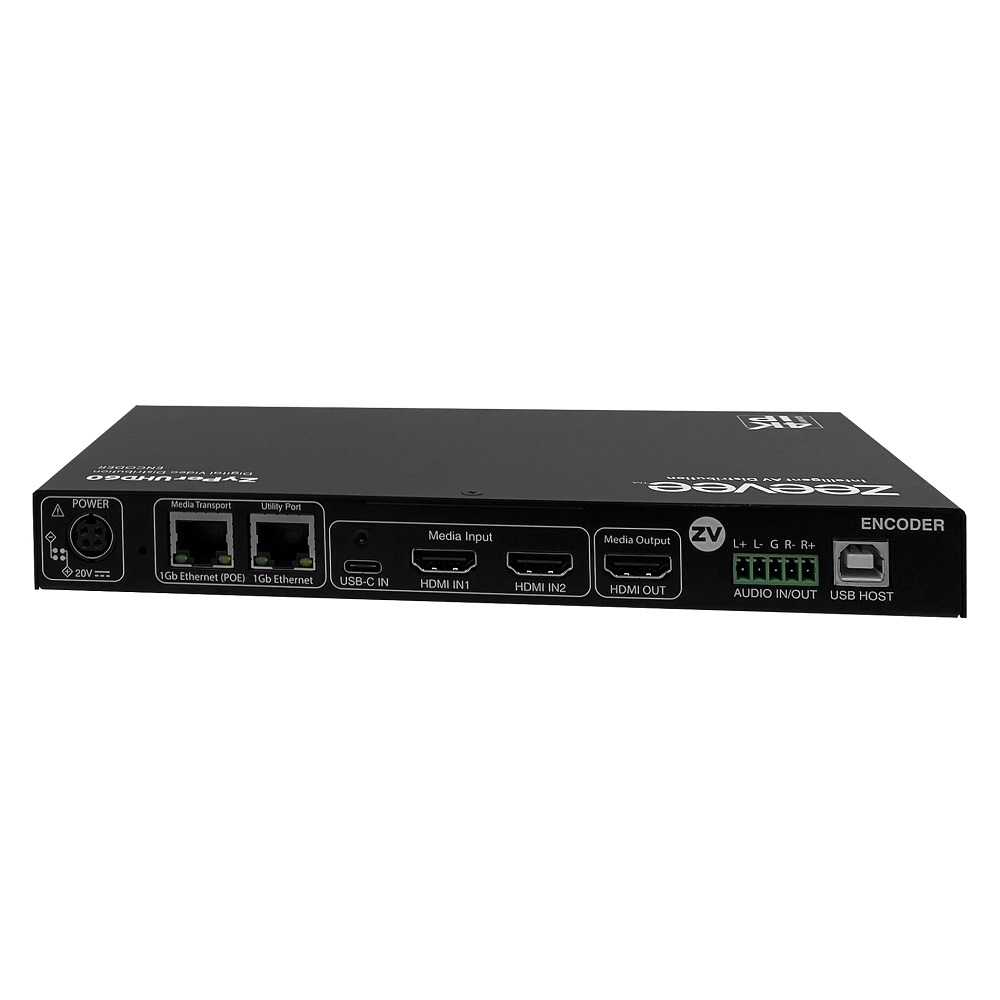

ZeeVee ZyPerUHD60 Encoder ZUHD60-2E
Mô tả ngắn
ZeeVee ZyPerUHD60 Encoder, 3x1 Switching Input and Dual LAN ZUHD60-2E
AV over IP
1 Gbps - Compressed 4K - JPEG 2000
Encoder
Hotline: 0918 642 886
ZeeVee ZyPerUHD60 Encoder, 3x1 Switching Input and Dual LAN ZUHD60-2E
ZUHD60-2E is an HDMI 2.0a, Switching, triple-input Encoder (Dual HDMI and USB-C) that is part of the ZyPerUHD60 product line. It supports IP streaming up to 4KP60 4:4:4 resolution with embedded and AES67 audio support; HDCP 2.3 and AES-256 encryption. This encoder has a 5-pin Phoenix/Euroblock connector for analog audio in/out and gigabit copper ethernet port. Other features include USB-A, IR, RS-232 (via 3-pin Phoenix/Euroblock), and HDMI loopout. The ZUHD60-2E requires a ZyPerUHD60 Decoder for operation and comes with an IR emitter, receiver, and wall mount bracket included. Ethernet, HDMI, USB, and audio/serial cables are not included. Can use POE or AC (20v Power supply sold separately).
|
ZyPerUHD60-2E Encoder |
Information |
Connector |
|
Video (2nd HDMI and USB-C not available on Single Ethernet version) |
HDMI 2.0a with HDCP passthrough and USB-C |
2x HDMI type A and USB-C |
|
Video Loopout |
HDMI |
HDMI type A (Not available on 0E units) |
|
Audio (Analog) |
Balanced Stereo (Input or Output) |
5-pin Phoenix (3.5mm input on 0E units) |
|
IR |
Input/Output ports |
3.5mm mini jacks |
|
Serial |
Full Duplex up to 115.2 kbps |
3-pin Phoenix |
|
USB |
Single USB 2.0 |
USB Type B |
|
Ethernet (PoE) |
1 Gb for Video/Audio/Control, 1 Gb for Utility |
2x 1 Gb RJ45 port (One or two ports) |
|
Other Specifications |
ZyPerUHD60 Encoders |
|
Formats |
Supports all major VESA resolutions and variations including:
|
|
Video Other |
Color Depth: 24 bit, 30 bit |
|
Maximum distance |
Cat6a: 328 ft (100 m) |
|
Copy Protection/Security |
HDCP 2.3, 802.1X compatible |
|
Power consumption |
Approximately 7W |
|
Dimensions / Weight |
215mm x 25mm x 120mm (W x H x D), 705 grams |
|
Temperature |
Operating Temperature +32°F ~ +113°F (0°C ~ +45°C) Storage Temperature -4°F ~ +158°F (-20°C ~ +70°C) |
|
Humidity |
10% ~ 90%, non-condensing |
