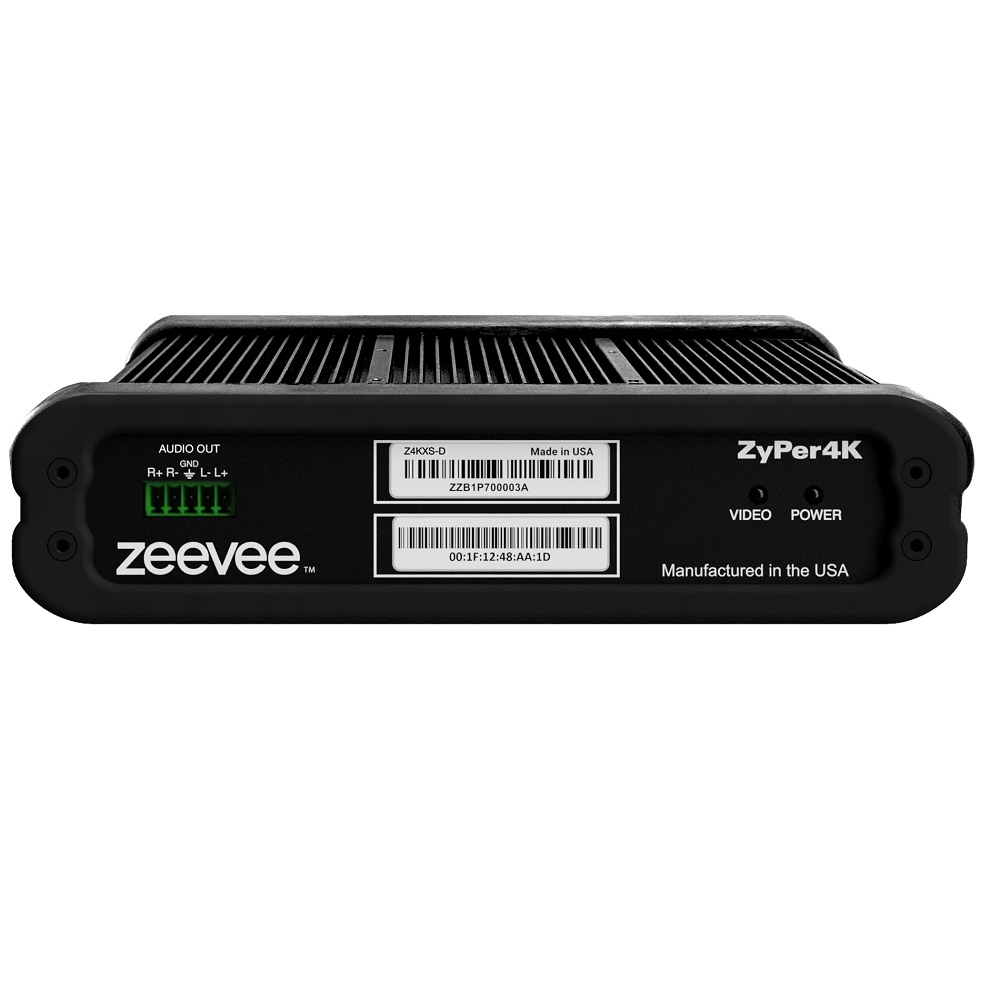

ZeeVee ZyPer4K-XS Decoder Fiber Z4KFXS-DAU
Mô tả ngắn
ZeeVee ZyPer4K-XS Decoder Fiber Z4KFXS-DAU
AV over IP
10 Gbps - Uncompressed 4K - SDVOE
Decoder
Serial (RS232) 3-pin phoenix
Dante audio support
Hotline: 0918 642 886
ZeeVee ZyPer4K-XS Decoder Fiber Z4KFXS-DAU
Z4KFXS-DAU is an HDMI 2.0 AVoIP Decoder that is part of the ZyPer4k product line. It supports IP streaming over 10Gbit fiber up to 4KP60 4:4:4 resolution with embedded Dante audio support and HDCP 2.3 encryption at zero-frame latency.
Configurable Icron USB allows support between any USB enabled ZyPer4K device. Video compatible with any ZyPer4K AVoIP Encoder. AC power supply is included but other cables are not.
SPECIFICATIONS:
|
ZyPer4K-XS Decoder Fiber |
Information |
|
Video |
HDMI 2.0 with HDCP pass-through |
|
Audio (Digital) |
Encoded audio formats and linear PCM up to 8 channels |
|
Audio (Analog) |
Unbalanced Stereo (Output) |
|
USB |
Single USB 2.0 (USB - A connector) |
|
Ethernet |
10 Gb for Video/Audio/Control with 1 Gb Utility |
|
Formats |
Supports all major VESA resolutions and variations including full HDMI 2.0 support: VGA: 640x480 (4:3) • SXGA: 1280x1024 (5:4) • 1080p/i: 1920x1080 (16:9) SVGA: 800x600 (4:3) • WXGA: 1366x768 (16:9) • QXGA: 2048x1536 (4:3) XGA: 1024x768 (4:3) • SXGA+: 1440x1080 (4:3) • Ultra HD: 3840x2160 (16:9) HDTV: 1280x720 (16:9) • UXGA: 1600x1200 (4:3) • 4K: 4096x2160 (17:9) Custom resolutions are supported at pixel clock rates up to 600 MHz |
|
Video Other |
Color depth: 24 bit, 30 bit, 36 bit, 48 bit |
|
Video Wall and Multiview |
Video Wall up to 15x15. Multiview with up to 19 sources. |
|
Signal transmission distance |
Multimode fiber optic line: 300m | single mode fiber optic line: 10km |
|
Copy Protection/Security |
HDCP 2.2, AES-128 Encryption, 802.1X compatible |
|
Power input (locking connector) |
12V DC |
|
Power |
Approximately 8 watts |
|
Dimensions (L x W x H) / Weight |
7.8 in (199mm) x 4.6 in (116mm) x 1.9 in (47mm), 30.0 oz (850g) |
|
Temperature |
Operating temperature: 32 F to 104 F <0 C to +40 C> Storage temperature: -4 F to +176 F <-20 C to +80 C> |
|
Humidity |
Operating/ Storage: 20% to 90% (Non-Condensing) |
|
ZyPer4K-XS Decoder Fiber |
Information |
|
Video |
HDMI 2.0 with HDCP pass-through |
|
Audio (Digital) |
Encoded audio formats and linear PCM up to 8 channels |
|
Audio (Analog) |
Unbalanced Stereo (Output) |
|
USB |
Single USB 2.0 (USB - A connector) |
|
Ethernet |
10 Gb for Video/Audio/Control with 1 Gb Utility |
|
Formats |
Supports all major VESA resolutions and variations including full HDMI 2.0 support: VGA: 640x480 (4:3) • SXGA: 1280x1024 (5:4) • 1080p/i: 1920x1080 (16:9) SVGA: 800x600 (4:3) • WXGA: 1366x768 (16:9) • QXGA: 2048x1536 (4:3) XGA: 1024x768 (4:3) • SXGA+: 1440x1080 (4:3) • Ultra HD: 3840x2160 (16:9) HDTV: 1280x720 (16:9) • UXGA: 1600x1200 (4:3) • 4K: 4096x2160 (17:9) Custom resolutions are supported at pixel clock rates up to 600 MHz |
|
Video Other |
Color depth: 24 bit, 30 bit, 36 bit, 48 bit |
|
Video Wall and Multiview |
Video Wall up to 15x15. Multiview with up to 19 sources. |
|
Signal transmission distance |
Multimode fiber optic line: 300m | single mode fiber optic line: 10km |
|
Copy Protection/Security |
HDCP 2.2, AES-128 Encryption, 802.1X compatible |
|
Power input (locking connector) |
12V DC |
|
Power |
Approximately 8 watts |
|
Dimensions (L x W x H) / Weight |
7.8 in (199mm) x 4.6 in (116mm) x 1.9 in (47mm), 30.0 oz (850g) |
|
Temperature |
Operating temperature: 32 F to 104 F <0 C to +40 C> Storage temperature: -4 F to +176 F <-20 C to +80 C> |
|
Humidity |
Operating/ Storage: 20% to 90% (Non-Condensing) |
