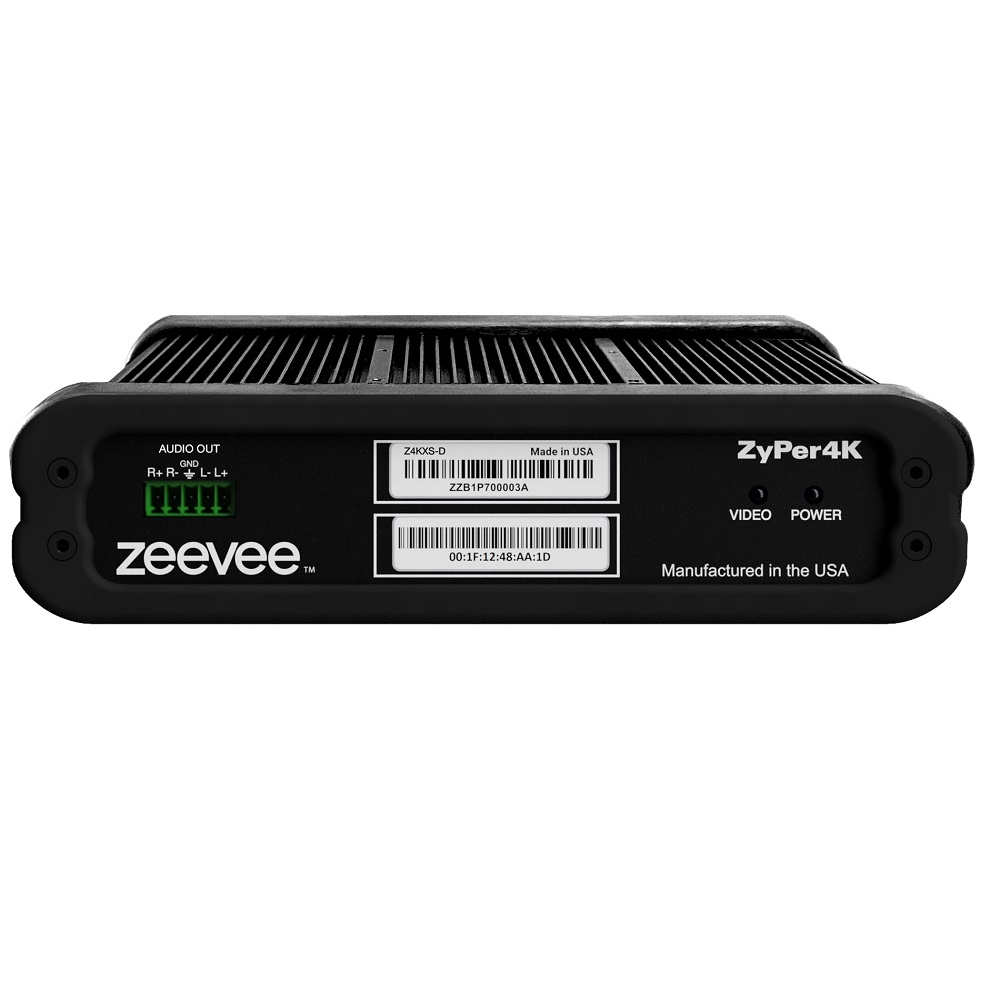

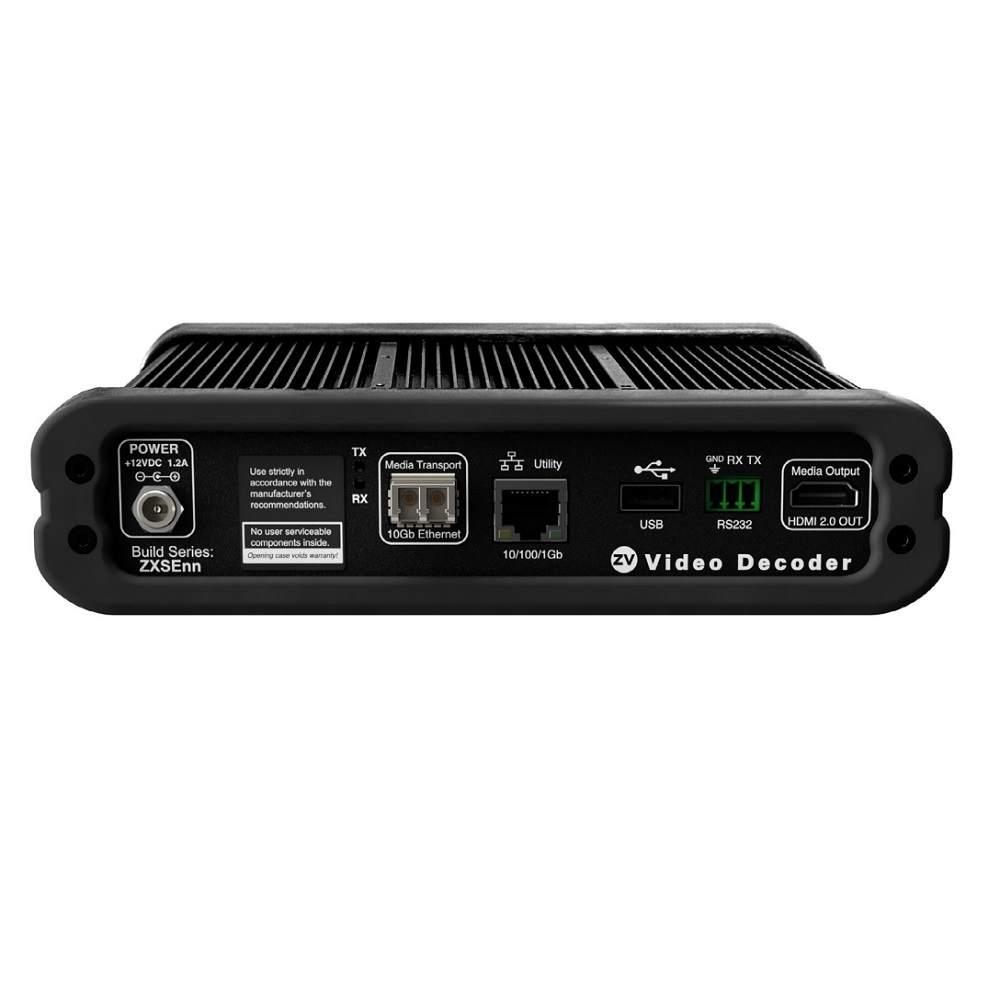

ZeeVee ZyPer4K-XS Decoder Fiber Z4KFXS-D

ZyPer4K-XS Decoder Fiber

Information

Video

HDMI 2.0 with HDCP pass-through

Audio (Digital)

Encoded audio formats and linear PCM up to 8 channels

Audio (Analog)

Unbalanced Stereo (Output)

USB

Single USB 2.0 (USB - A connector)

Ethernet

10 Gb for Video/Audio/Control with 1 Gb Utility

Formats

Supports all major VESA resolutions and variations including full HDMI 2.0 support:

• VGA: 640x480 (4:3) • SXGA: 1280x1024 (5:4) • 1080p/i: 1920x1080 (16:9)

• SVGA: 800x600 (4:3) • WXGA: 1366x768 (16:9) • QXGA: 2048x1536 (4:3)

• XGA: 1024x768 (4:3) • SXGA+: 1440x1080 (4:3) • Ultra HD: 3840x2160 (16:9)

• HDTV: 1280x720 (16:9) • UXGA: 1600x1200 (4:3) • 4K: 4096x2160 (17:9)

• Custom resolutions are supported at pixel clock rates up to 600 MHz

Video Other

Color depth: 24 bit, 30 bit, 36 bit, 48 bit

Video Wall and Multiview

Video Wall up to 15x15. Multiview with up to 19 sources.

Signal transmission distance

Multimode fiber optic line: 300m | single mode fiber optic line: 10km

Copy Protection/Security

HDCP 2.2, AES-128 Encryption, 802.1X compatible

Power input (locking connector)

12V DC

Power

Approximately 8 watts

Dimensions (L x W x H) / Weight

7.8 in (199mm) x 4.6 in (116mm) x 1.9 in (47mm),  30.0 oz (850g)

Temperature

Operating temperature: 32 F to 104 F <0 C to +40 C> Storage temperature: -4 F to +176 F <-20 C to +80 C>

Humidity

Operating/ Storage: 20% to 90% (Non-Condensing)
