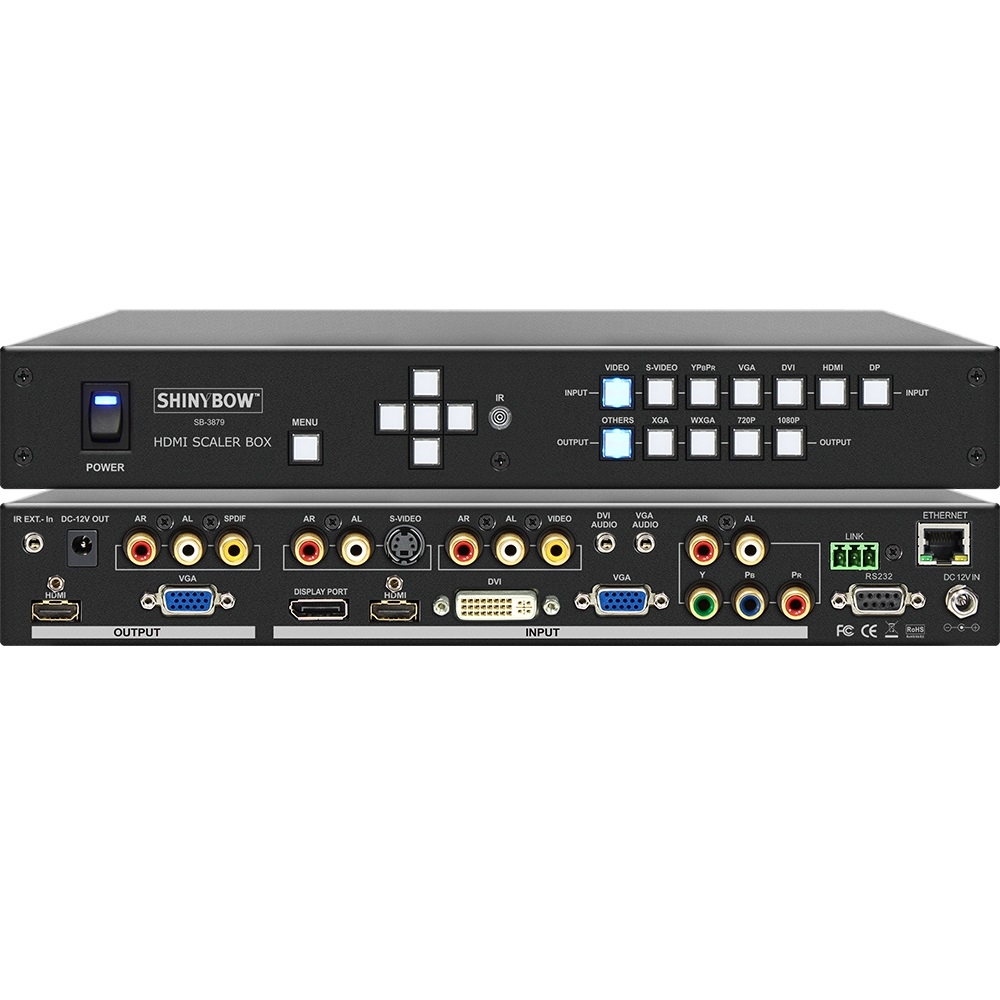

Bộ Video Scaler HDMI SB-3879

The SB-3879 is a professional high performance video graphics scaler supporting seven (7) different inputs and output signal, HDMI™, VGA and S/ PDIF & Stereo Audio. The Inputs are comprised of 1x Composite Video & Audio, 1x S-Video & Audio, 1x Component Video & Audio, 1x VGA & Audio, 1x DVI & Audio, 1x DisplayPort and 1x HDMI™. The available output ports are 1x HDMI™, 1xVGA, 1x S/PDIF and 1x Stereo Audio. This scaler supports S-Video with 3D comb filter, HDMI™ 3D 1.4a formats, HDCP 1.3 Compliant. It is able to auto detects the video standard format of input signal from NTSC / PAL / SECAM system, and convert to high definition RGB digital HD signal. The scaler supports full HDTV resolution data rates enabling 480i/p, 576i/P, 720p or 1080i/p formats, higher DVI resolution (1920x1200 ), HDMI™ 1080p- 60, DP (2550x1600) which is ideally for high definition 3D TV, HDTV, Plasma display or monitor applications. Control is provided via front panel buttons, RS- 232, Ethernet, or IR remote control (included). A RS-232 interface is provided for interfacing with third party controller. The windows-based control software package is included to provide complete control of the SB-3879 from a PC.

01. HDMI Video Scaler Support HDMI 1.4a 3D formats, HDMI V1.4 Transmitter & Receiver,

      HDMI 1.4, DVI 1.0, HDCP 1.3 Compliant

02. Wide range scales HD resolutions any PC (XGA to WUXGA) and HDMI resolutions

      480i/480p, 576i/576p, 720p, 1080i & 1080p from Any analog video, S-Video(Y/C),

      Component Video (YPBPR), PC VGA, DVI, HDMI or Display Port resolutions

03. Input port Composite Video, S-Video(Y/C), Component Video(YPBPR) 480i/p, 576i/p,

      720p, 1080i/p , DVI (1920x1200), HDMI 1080p-60, Display Port (2560x1600)

04. Output Support PC VGA (XGA to WUXGA) and HDMI 1080P-60 with Deep color 36-bit.,

      Digital Audio support S/PDIF and Stereo Audio outputs

05. Input resolution up to 1080p, 1920x1080, 1920x1200 and 2560x1600 (only in DP)

06. Bypass XGA & 720P 120Hz 3D signal for DLP link 3D ready projector for active 3D display.

      and audio receivers/amplifiers

07. Advanced 3D de-interlace, smooth edge algorithm and 3:2/2:2 film mode processing

08. Support 3D formats: Frame packing, side by side and top/bottom signal types

09. Support full HD @24Hz full HD 3D signal with special algorithm for RH/LH synchronization

10. Support intelligent color adjustment (Discrete RGB color adjustment, Hue, saturation,

      sharpness, contrast, brightness and (4) preset color modes)

11. OSD (on screen display) for menu color, resolution and input source selections

12. Various User Interface control :

      • Windows based GUI control via RS-232 port

      • Front Panel push button

      • IR wireless remote control

      • Ethernet with built-in web browser

      • Third party RS-232 controller (via simple ASCII)

13. Support IR Remote and IR Extender with cable distance up to ~ 1000' (300M) Maximum

14. Desktop with optional 19 inch Rack mount (included)

15. Power supply DC12Volt, Universal Type switch 100~240VAC, 50/60Hz
