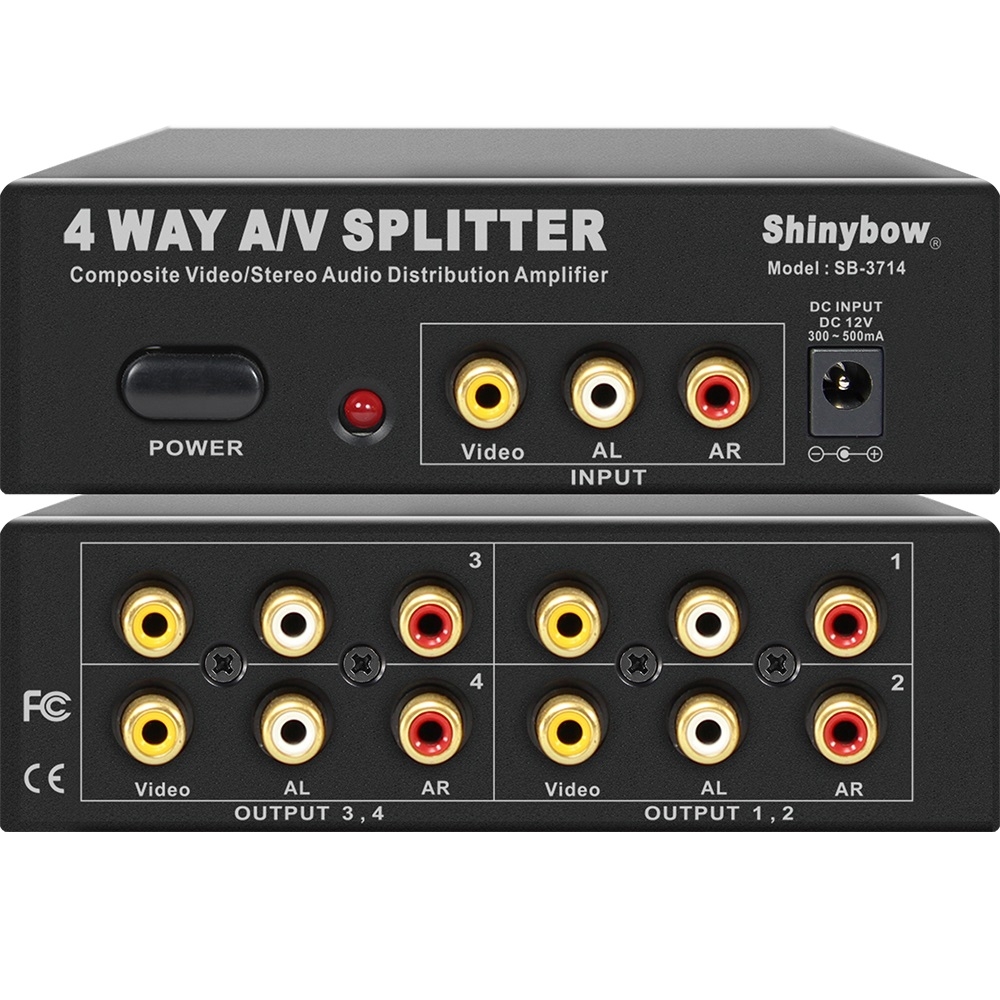

Bộ chia và khuếch đại 1x4 AV SB-3714
Mô tả ngắn
Shinybow SB-3714 1x4 COMPOSITE VIDEO•AUDIO DISTRIBUTION AMPLIFIER
Input : 1x COMPOSITE VIDEO, Stereo Audio(AR/AL)
Output : 4x COMPOSITE VIDEO, Stereo Audio(AR/AL)
Hotline: 0918 642 886
SB-3714 is a 1 input to 4 outputs AV Distribution Amplifier. The Video Bandwidth 80MHz Distribution Amplifier product. It’s one of the most innovative Composite Video and Stereo Audio(AR/AL) via RCA connector Distribution Amplifier product on the market today. It has 1 individual input with 4 individual outputs. Because it is a 1 to 4 signal Distribution Amplifier, one (1) input may be routed to four (4) outputs. It completely eliminates the need to constantly move around Composite Video and Stereo Audio input and output cables. This Distribution Amplifier is ideally suited for TV for the resolution of 480p, 720p.
|
1. |
Support 1x4 Composite Video/Stereo Audio Distribution Amplifier |
|
2. |
Signals amplifier including: Composite Video and Stereo Audio (AR/AL) |
|
3. |
Video Bandwidth : 80MHz, Composite Video |
|
4. |
Audio Bandwidth : 30MHz, Stereo Audio (AR/AL) |
|
5. |
Support HDTV Resolution for 480i, 480p, 576p, 720p |
|
6. |
Scan Rates Accepted for 50Hz or 60Hz |
|
7. |
Signals amplifier including: Composite Video and Stereo Audio |
|
8. |
Support Lower power consumed full load under 150 mA |
|
9. |
Power supply offer a universal type 100~240 VAC switch |
|
Type of switcher |
1 input to 4 outputs AV Distribution Amplifier |
|
Type of Signals |
Composite Video, Stereo Audio (AR/AL) |
|
Video Bandwidth |
80MHz, (-3dB) 2V p-p |
|
Audio Bandwidth |
30MHz |
|
Audio Frequency Respond |
20Hz ~ 20KHz |
|
Video Boost |
about 100M distance |
|
Scan Rates Accepted |
50Hz or 60Hz |
|
Safety Approvals |
CE, FCC, VCCI, REACH, WEEE |
|
Dimension (WxDxH) |
5.12" x 3.75" x 1.58" (130mm x 95mm x 44mm) |
|
Weight |
0.48 kg / 1.05 lb |
|
Power Voltage Input |
DC 12V @ 1A |
