Bộ điều khiển Video Wall 4TV SB-3403
Mô tả ngắn

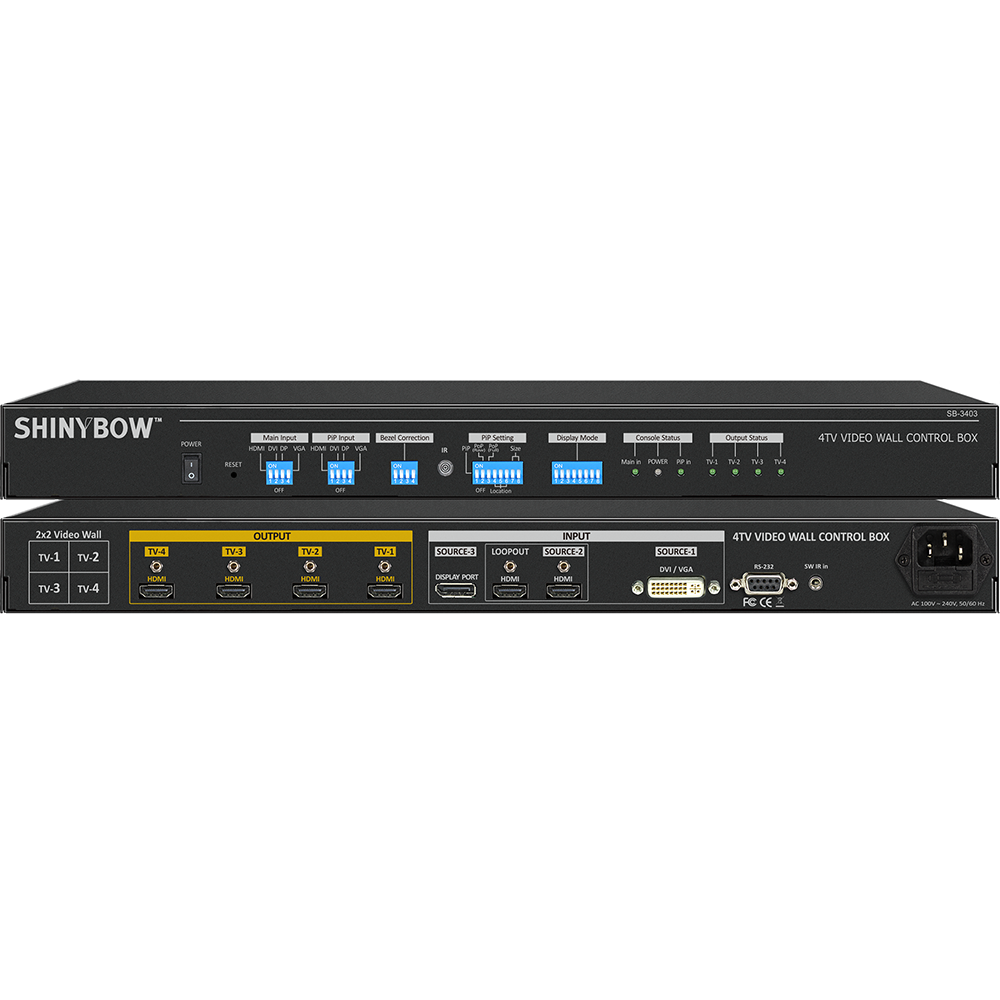

SB-3403 4TV Video Wall Control Box
Input : 1x Display Port, 1x HDMI + 1 Loopout, 1x DVI
Output : 4x HDMI
Hotline: 0918 642 886
SB-3403 is taking irregular creative video wall to a new level. Combining with pre-defined playback modes, unlimited cascade and friendly OSD operation, it can create all kinds of playback modes for regular, portrait and irregular video wall with different size, resolution and bezel LCD at any angle and position without PC or software. Conventional TV and monitor can be served as display devices. Users will benefit with great effectiveness, flexibility and ease-of-use. SB-3403 is pure hardware standalone system. It can connect with various video sources and provide a simple and reliable solution for professional creative video wall.
01. 3 input ports to support HDMI, DVI, Display Port, VGA and YPbPr signals
02. Equipped with 4x HDMI outputs in one unit
03. Multiple units cascade to build large-scale high resolution video wall
04. User can create all kinds of playback modes for regular, portrait and irregular video wall with different size, resolution and bezel LCDs at any angle and position through OSD within minutes
05. Up to 5 self-made display modes can be saved and looping playback in video wall
06. 30 pre-defined playback modes selected by Dip SW
07. Connect directly with various video sources up to 4K/2K
08. 4K/2K HDMI loop out port for daisy chain connection
09. Auto image shift to prevent LCD from burn-in mark
10. PIP (picture in picture) and POP (side by side) multi-content function
11. Dynamic aspect ratio change to support different input sources and maintain aspect ratio without distortion
12. Power on/off control via auto signal detection
13. No video splitter, PC or software is required. More reliable
|
General description |
Quad LCD video wall controller with preset display modes and custom modes created by user |
|
Main functions |
Video processor : 10-bits |
|
LCD controlled by one processor : 4 |
|
|
Max. display contents in 4 LCDs : 2 |
|
|
Modular cascade forlarge display |
|
|
Video wall with portrait LCD without rotating input source |
|
|
Video wall with PIP/POP |
|
|
Share 4k/2k input in multiple units cascaded |
|
|
Preset modesselected by dip SW |
|
|
Looping playback and dynamic position shift for LCD life protection |
|
|
Input & Output |
Video Input Ports : 1x Display Port, 1x HDMI, 1x DVI-I |
|
(DVI-D, VGA, HDMI) |
|
|
Video Output : 4x HDMI |
|
|
4k/2k HDMI loop out port for daisy chain |
|
|
Audio Output : HDMI audio |
|
|
Support YPbPr video via VGA input port |
|
|
Support DVI-D, VGA & HDMI by DVI-I input port |
|
|
4k/2k @30Hz, 1080p @120Hz, 2560x1600 / |
|
|
3840x1080 @60Hz input with 4:4:4 sampling |
|
|
Frame Lock for system synchronization |
|
|
Selective EDID for optimized video quality |
|
|
HDCP compliant |
|
|
Image rotation |
Image 90°/270° flip and rotation for portrait display |
|
Image 180° flip and rotation for LCD at top/down installation |
|
|
Video wall |
Max. source resolution shared to 4 LCDs : FHD |
|
Maximum 4 LCD as one display unit |
|
|
4K/2k input source can be split and assigned to multipleunits to build one true 4k/2k video wall |
|
|
Each display unit location can be adjusted up to +_900 pixels in all directions for image mapping |
|
|
Custom display modes created by user with LCD at any position and angle |
|
|
Looping playback for custom modes |
|
|
Image shift for LCD burn-in mark protection |
|
|
PIP (Picture in Picture) and POP (side by side) |
PIP up to 1024x768 at selectable location with selectable aspect ratio and input source |
|
POP to show two image in one video wall with full screen or keep original aspect ratio in landscape & portrait directions |
|
|
High end 3D motion adaptive de-interlace in PIP/POPwindows |
|
|
Video processing |
10 bits 4:4:4 full bandwidth sampling with 3D de-interlace, smooth edge algorithm and 3:2/2:2 film mode processing |
|
High quality video and graphics scaling up and scaling down |
|
|
Color adjustment for one display unit (Hue, saturation, sharpness, contrast, brightness, preset modes, discrete RGB) |
|
|
System control |
Full function IR Remote controller |
|
Cabled IR Receiver Extender (up to 20 meters) |
|
|
Ethernet control and operation via LAN or WiFi (NB, iPad, Smart phone), need to add external Ethernet to UART module |
|
|
ASCII control protocol over RS-232 |
|
|
Auto Shut off output signal when input is missing |
|
|
GAlign PC tool |
|
|
Rack Mount Bracket |
19 inch 1U High Rack Mount Bracket (1U-440L) |
|
Dimension (WxDxH) |
17.4" x 6.38" x 1.73" (442mm x 162mm x 44mm) |
|
Weight |
1.8 kg / 3.98 lb |
|
Power Supply |
AC 100~240V 50/60Hz |
