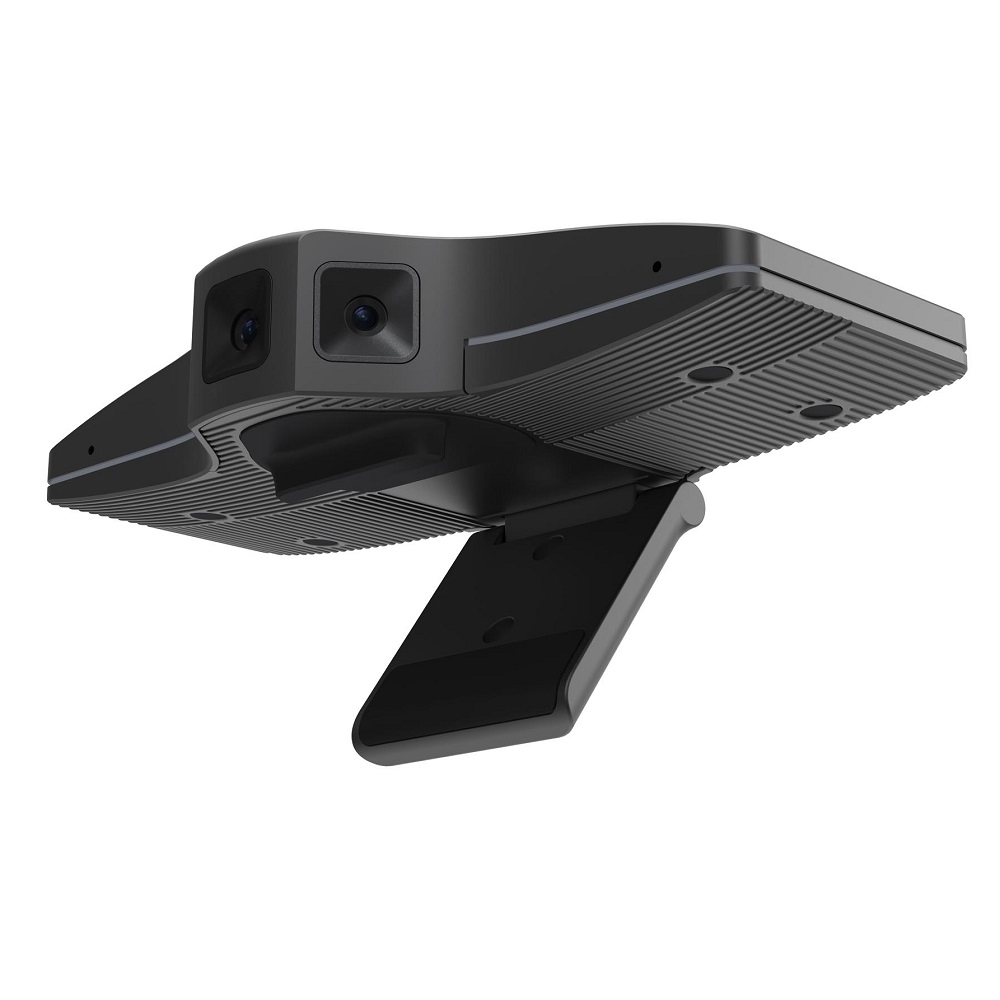

Smart Panoramic Camera 4K K-180Mini
Mô tả ngắn
Kramer Panocam 4K@3 lens 180–degree FOV fixed focus; 2 Mic AI-powered auto framing, face detection, touch–button, multi-display modes
12 MP cameras and 4K definition provide clear, sharp video
Auto–stitching of split frames eliminates distortion
Hotline: 0918 642 886
Smart panoramic camera that keeps everyone in view
Get the full picture even in the smallest meeting room. This 4K wall−mount camera captures clear video across a full 180° field of view, ensuring even people sitting close to the camera and on the far sides of the room are clearly seen. It automatically recognizes and zooms in on meeting participants, follows speakers as they move around, and auto−adjusts when attendee numbers change.
- Immersive video conferencing experience —
Extreme wide–angle view, with three cameras providing a distortion–free 180° view that covers the whole room
Intelligent auto–framing and auto–tracking keep the presenter in focus
- Easy and versatile operation —
Choice of 4 video layouts, with single–tap switching between them
Acts as a USB hub, enabling the K–Speak or any other speakerphone to be connected directly to the camera
Works with most common video conferencing platforms
Type–C Connection — Type–C connection enables seamless operation for a wide range of devices.

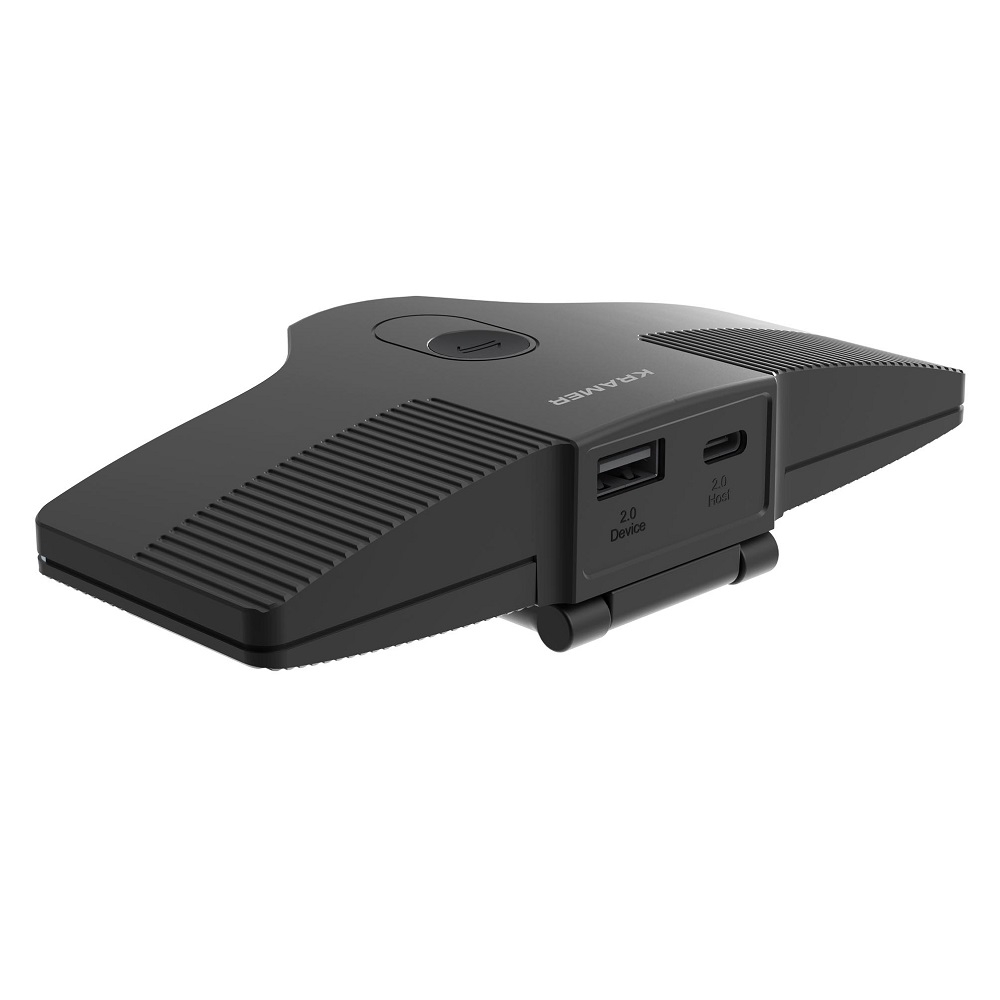

PORTS
-
1 USB 2.0 type A: On a USB connector
-
1 USB-C 2.0: On a USB–C connector
VIDEO
-
Output Formats: MJPG
-
Output Formats: H.264
-
Output Formats: YUY2
-
Resolutions: YUY2 (30fps): 640x480, 640x360, 480x270, 352x288, 320x240
-
Resolutions: MJPG (30fps): 3840x2160(24fps), 3840x1376, 3840x962, 2560x1440, 1920x1080, 1280x720, 1024x576, 960x544, 640x480, 640x360
-
Resolutions: H264 (30fps): 1280x720, 1024x576, 960x544, 640x480, 640x360
FOCUS
-
Method: : Fixed
-
Distance: 1.5 meters
CAMERA
-
Max. Field of View (FOV): 180
-
Depth of Field (DOF): 0.5 to 5 meters
-
Aperture: 2.2
-
Minimum Illumination: 10Lux
MICROPHONE
-
Quantity: 2
-
Pickup Distance: Up to 4 meters
CONTROLS
-
Top Button: Selectable layouts
-
App: Layout configuration via PC
POWER
-
Consumption: 5V/950mA 4.7W
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –20° to +60°C (–4° to 140°F)
-
Humidity: 10% to 90%, RHL non–condensing
-
Altitude: Below 5000 meters
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
-
Safety: CE, FCC
-
Environmental: RoHS, WEEE
ENCLOSURE
-
Type: Aluminum
GENERAL
-
Net Dimensions (W, D, H): 14.7cm x 7.4cm x 3.5cm (5.8" x 2.9" x 1.4")
-
Shipping Dimensions (W, D, H): 17.6cm x 17.6cm x 4.6cm (6.9" x 6.9" x 1.8")
-
Net Weight: 0.24kg (0.53lbs) approx
-
Shipping Weight: 0.59kg (1.3lbs) approx
ACCESSORIES
-
Included: 1 USB–C cable, wall bracket, and screws set
PRODUCT WEIGHT
-
0.2kg (0.5lbs) approx.
