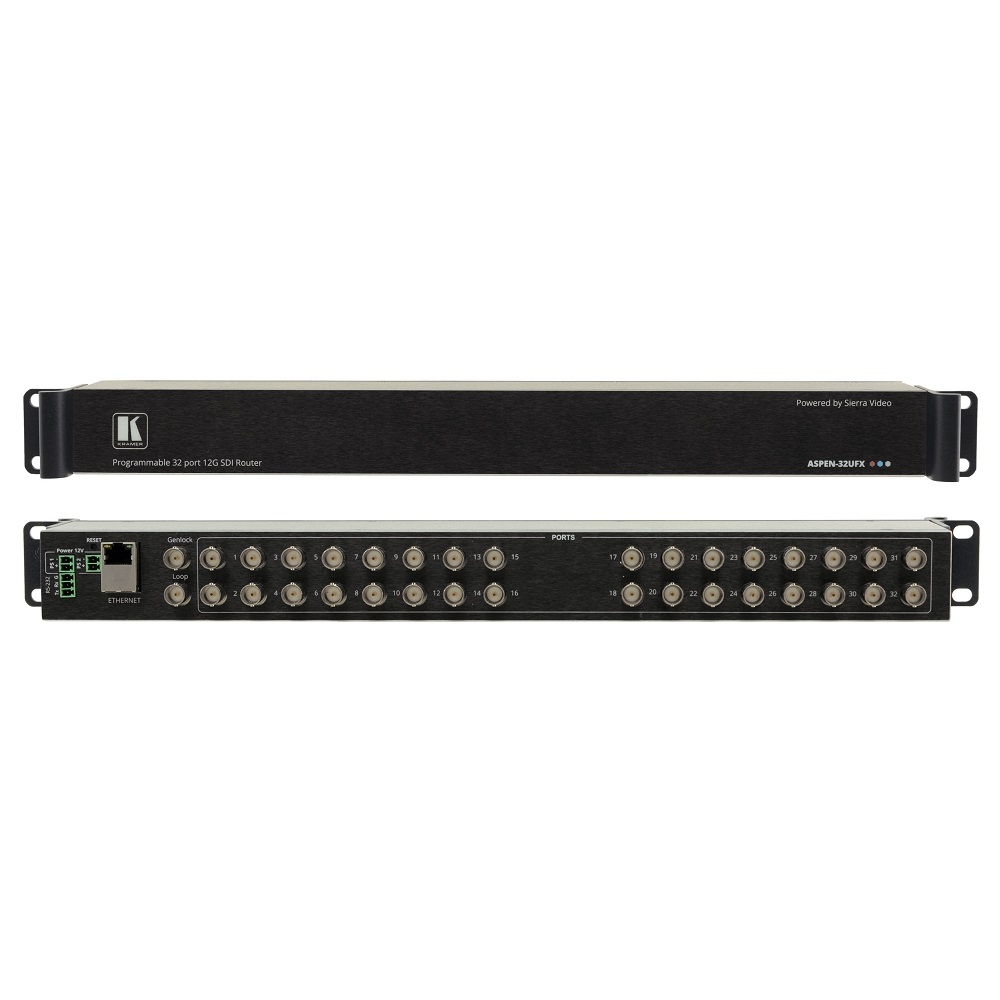

Ma trận chuyển mạch 12G SDI ASPEN-32UFX

ASPEN−32UFX is a 32−port matrix switcher for SDI signals of up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x31 distribution amplifier, 31x1 switcher, 16x16 matrix switcher or any other possible input−output combination. ASPEN−32UFX is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller.

• - Max. Data Rate — 12Gbps.

• - HDTV Compatible.

• - Multi–Standard Operation — 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M

• - Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.

• - Supports ANC Data — Embedded audio, teletext, time code, etc.

• - Cable Equalization — Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.

• - Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.

• - Versatile Genlocking — Using an analog signal.

• - Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.
