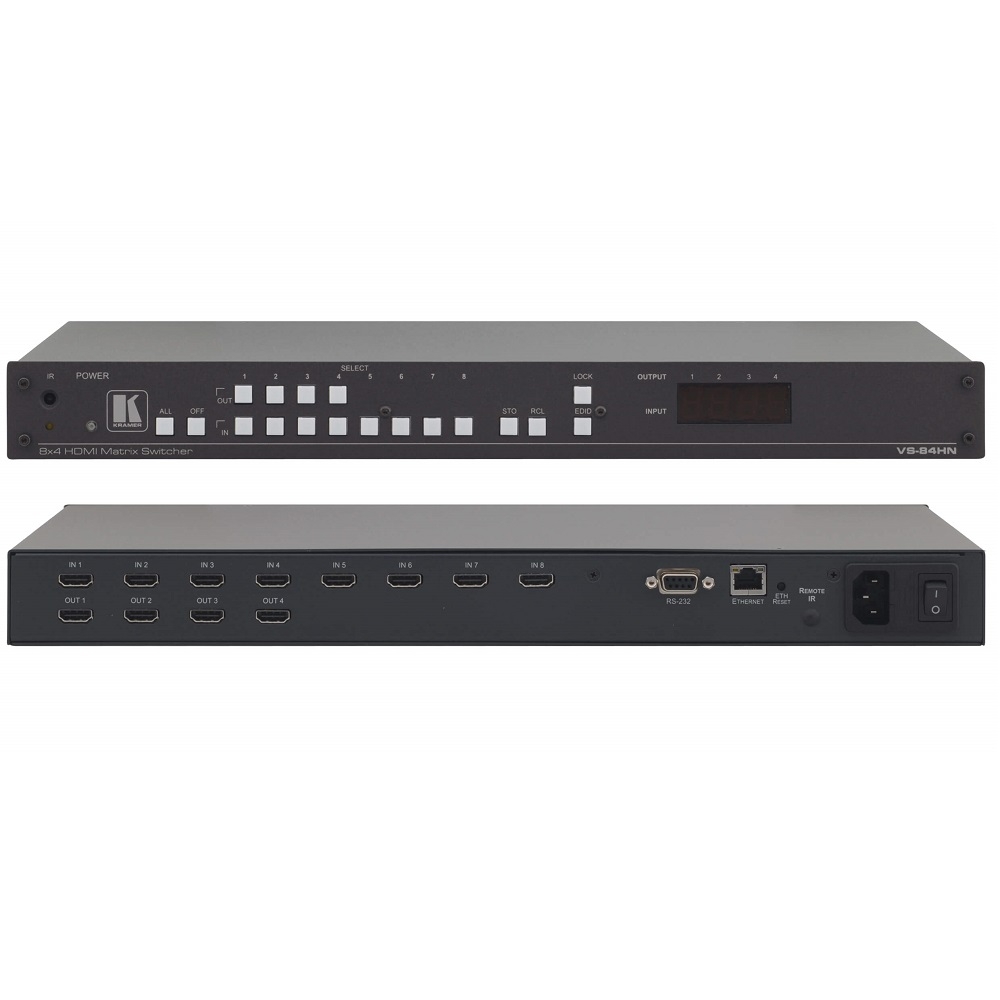

Ma trận chuyển mạch HDMI 8X4 VS-84HN
Mô tả ngắn
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
HDCP Compliant
3D Pass–Through
I–EDIDPro™
Control — RS–232, Ethernet & IR
Hotline: 0918 642 886
The VS−84HN is a high−performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
-Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and linear PCM 7.1 surround sound.
- 3D Pass–Through.
- Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- EDID Capture — Copies and stores the EDID from a display device.
- Output Disconnect — Each output.
- Front Panel Control Lockout.
- Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
- Flexible Control Options — Front panel, IR remote, RS–232 (K–Router Plus™ Windows®–based software is included), Ethernet (Windows®–based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack "ears" included.
INPUTS
8 HDMI connectors
OUTPUTS
4 HDMI connectors
MAX. DATA RATE
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
HDMI and HDCP
RESOLUTION
Up to UXGA
1080p
POWER CONSUMPTION
100–240V AC, 50/60Hz, 40VA
CONTROLS
Front panel buttons, infrared remote control transmitter, RS–232, Ethernet
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F)
HUMIDITY
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
Power cord, IR transmitter, rack ”ears”
PRODUCT DIMENSION
19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
PRODUCT WEIGHT
1.7kg (3.6lbs) approx.
