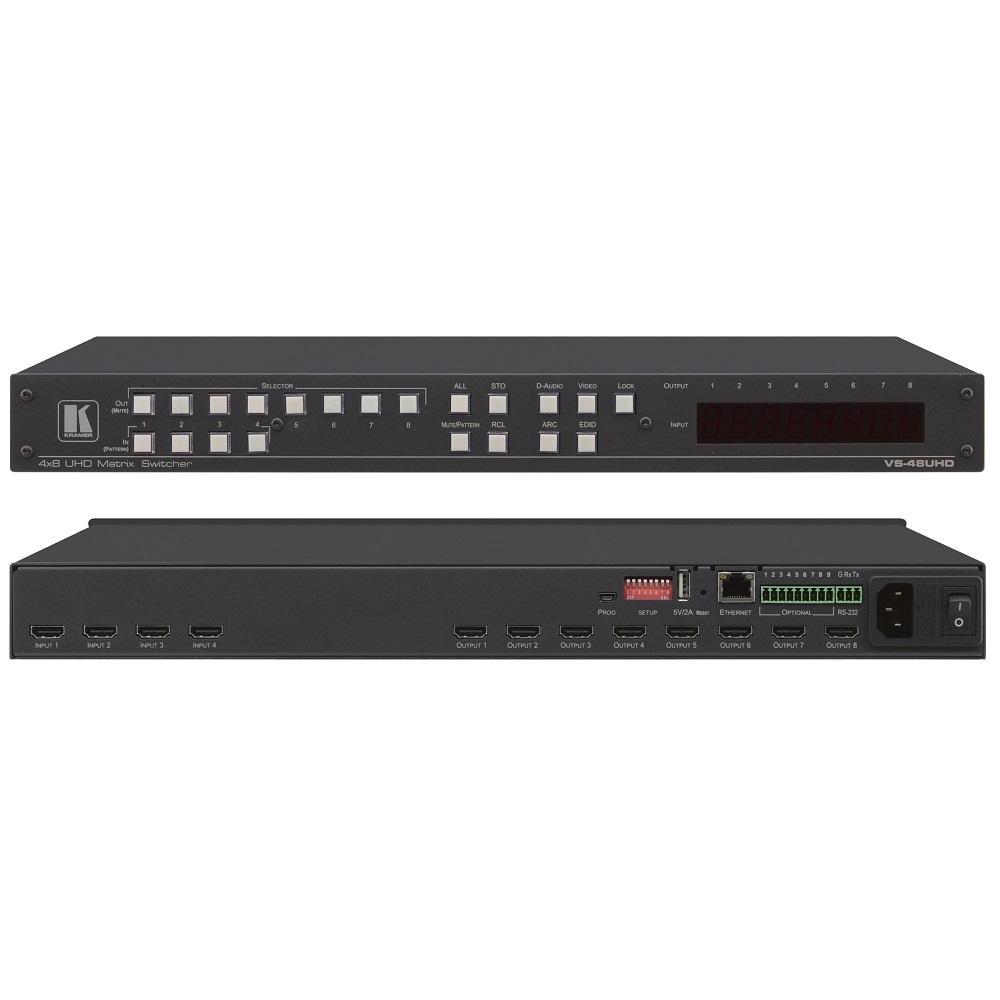

Ma trận chuyển mạch HDMI 4x8 VS-48UHD

VS−48UHD is a high−quality 4x8 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously. VS−48UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support to produce an equivalent 12x10 audio matrix.

• - Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).

• - Max. Resolution — 4K@60Hz (4:2:0).

• - Independent 12x10 Audio Matrix — With 4 embedded digital inputs + 8 ARC inputs and 8 digital outputs + 2 ARC outputs.

• - Kramer Step–In Over HDMI Technology.

• - HDMI, HDCP and DVI Compliance.

• - Selectable HDCP Off per Input.

• - Memory Locations — 12 presets for quick access to common configurations.

• - Advanced EDID Management per Input.

• - Active Source & Acceptor Detection.

• - Automatic Input Selection — Based on priority selection or last connected input.

• - Firmware Upgrade — Via mini USB, Ethernet or the RS–232 port.

• - HDMI Support — Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.

• - Kramer reKlocking™ and Equalization Technology — Rebuilds the digital signal to travel longer distances.

• - Embedded Pattern Generator — With selectable patterns.

• - Lock Button — To prevent tampering.

• - Kramer Protocol 3000 Support.

• - Control Options — RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control.

• - Size — Standard 19" (1U). Rack "ears" included.
