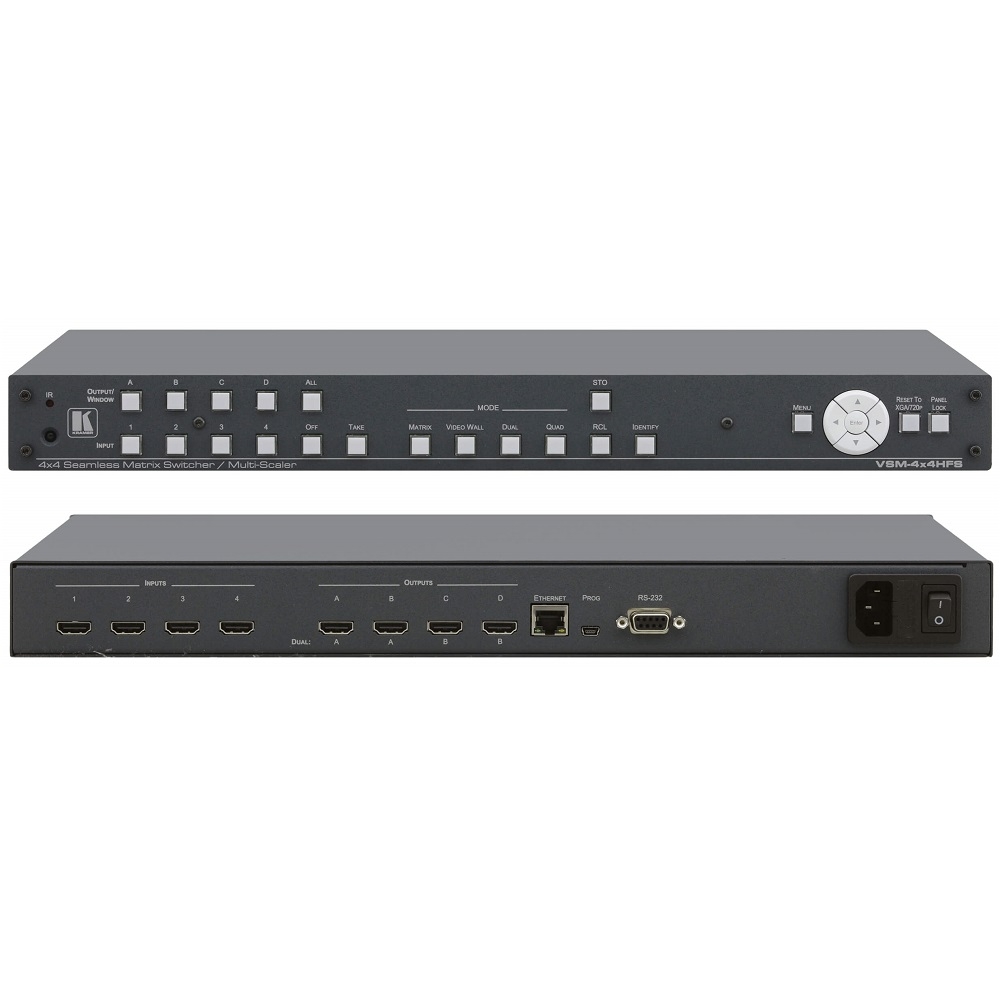

Ma trận chuyển mạch VSM-4x4HFS

The VSM−4x4HFS is a seamless matrix switcher that can also be used as a 2x2 video wall driver or dual and quad multi−viewers. The unit allows switching between inputs with a clean video cut (frame−to−frame switching with no glitches). The VSM−4x4HFS supports HDMI resolutions with deep color, up to eight channels of audio and includes per−port HDCP and EDID settings.

•  - PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology.

•  - HDTV Compatible.

•  - HDCP Compliant.

•  - 4 HDMI Inputs and 4 Scaled HDMI Outputs.

•  - Selectable Operation Modes — Matrix switcher, video wall, dual display (PIP/P&P) and quad display.

•  - Seamless Switching — Frame–to–frame video cuts (zero transition time).

•  - Bezel Correction Options — In video wall mode.

•  - HDMI Support — Deep Color.

•  - Embedded Audio — Supports Dolby Digital Plus, Dolby TrueHD, DTS, DTS–HD®, LPCM 2CH/6CH/8CH, AC3.

•  - HDCP and EDID Settings per Port.

•  - Resolution — VGA to WUXGA and 480i to 1080p input, 480p to 1080p output.

•  - Multiple Output Aspect Ratios.

•  - Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness.

•  - Flexible Control Options — Front panel buttons, IR remote control with OSD (On–Screen Display), RS–232, Ethernet with built–in Web browser.

•  - 4 Preset Memory Locations — Quick access to common IN–OUT configurations and non–volatile memory settings in each operation mode.

•  - Mini USB Connector — For upgrading firmware.
