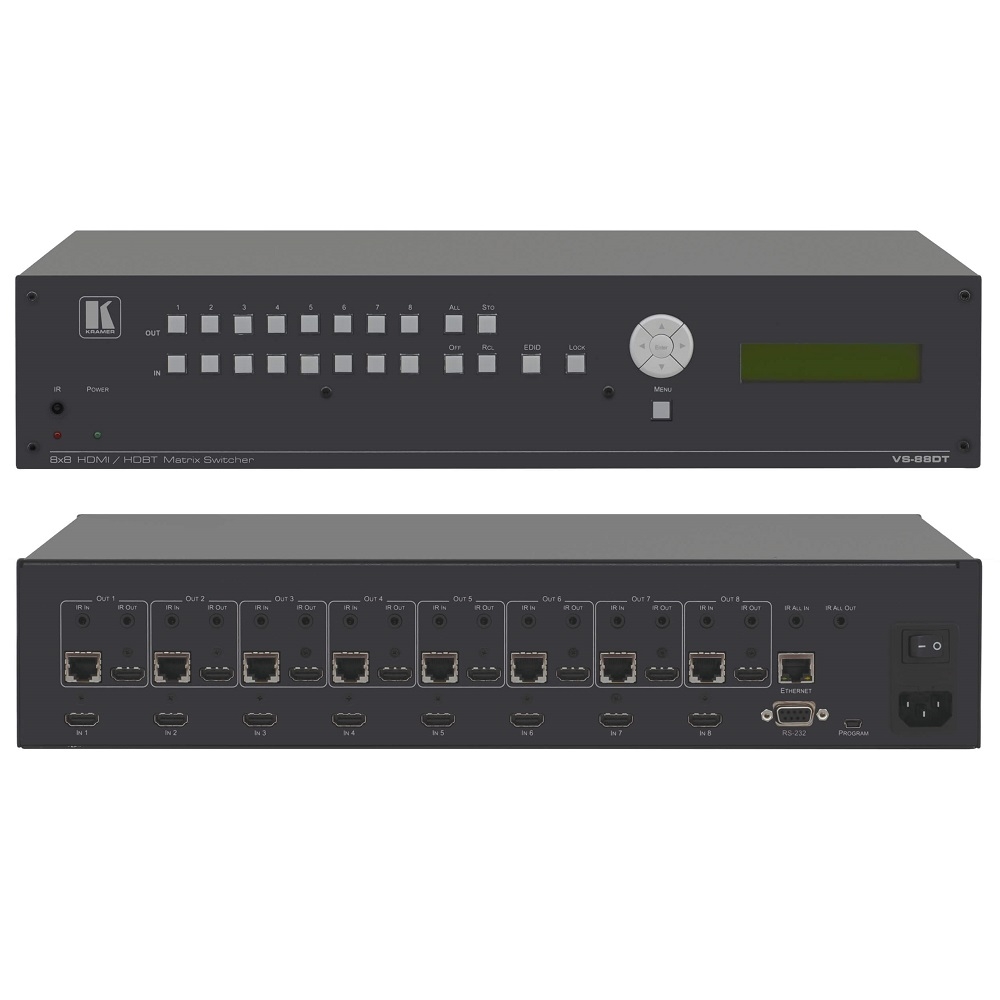

Ma trận chuyển mạch HDMI 8x8 VS-88DT
Mô tả ngắn
8x8 HDMI to HDMI or HDBaseT Matrix Switcher
Max. Data Rate — 6.75Gbps
Control — Embedded Web server, RS–232, IR
Managed by Kramer Network
Hotline: 0918 642 886
The VS−88DT matrix switcher routes up to eight HDMI and IR inputs to any or all of eight HDMI or HDBaseT and IR outputs for connection to compatible HDBaseT receivers such as the TP−580RXR.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- EDID Capture — Copies and stores the EDID from a display device.
- HDBaseT Range — Up to 130m (430ft) at normal mode (2K) when using BC–UNIKat cables.
- HDMI Support — 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD® and 7.1 multi–channel audio.
- Non–Volatile Memory — Stores and recalls preset matrix configurations.
- Automatic Output Shutdown — If no input signal is detected after a configurable idle period.
- LCD Display — 2 lines/20 characters for easy configuration and operation.
- Kramer Protocol 3000 Support.
- Lock Button — To prevent unwanted tampering with the settings.
- Flexible Control Options — Embedded Web server, RS–232, IR remote (available upon request) , software application.
- Worldwide Power Supply — 100–240V AC.
INPUTS
-
8 HDMI, 9 infrared on 3.5mm mini jacks, 1 RS–232 on a 9–pin D–sub connector, 1 Ethernet on an RJ–45 connector, 1 program on a mini USB connector
OUTPUTS
-
8 HDMI, 8 HDBaseT on RJ–45 connectors, 9 infrared on 3.5mm mini jack connectors
MAX. DATA RATE
-
6.75Gbps (2.25Gbps per graphic channel)
AUDIO SUPPORT
-
Up to 7.1 channels @192kHz
POWER CONSUMPTION
-
100–240V AC 50/60Hz 60VA
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
-
Rack “ears”
PRODUCT DIMENSIONS
-
19" x 13.82 x 2U (43.6cm x 35.10cm x 8.80cm) W, D, H
-
19" x 13.90 x 2U (43.6cm x 35.30cm x 8.80cm) W, D, H
PRODUCT WEIGHT
-
1.6kg (3.6lbs) approx.
-
1.6kg (3.6lbs) approx.
