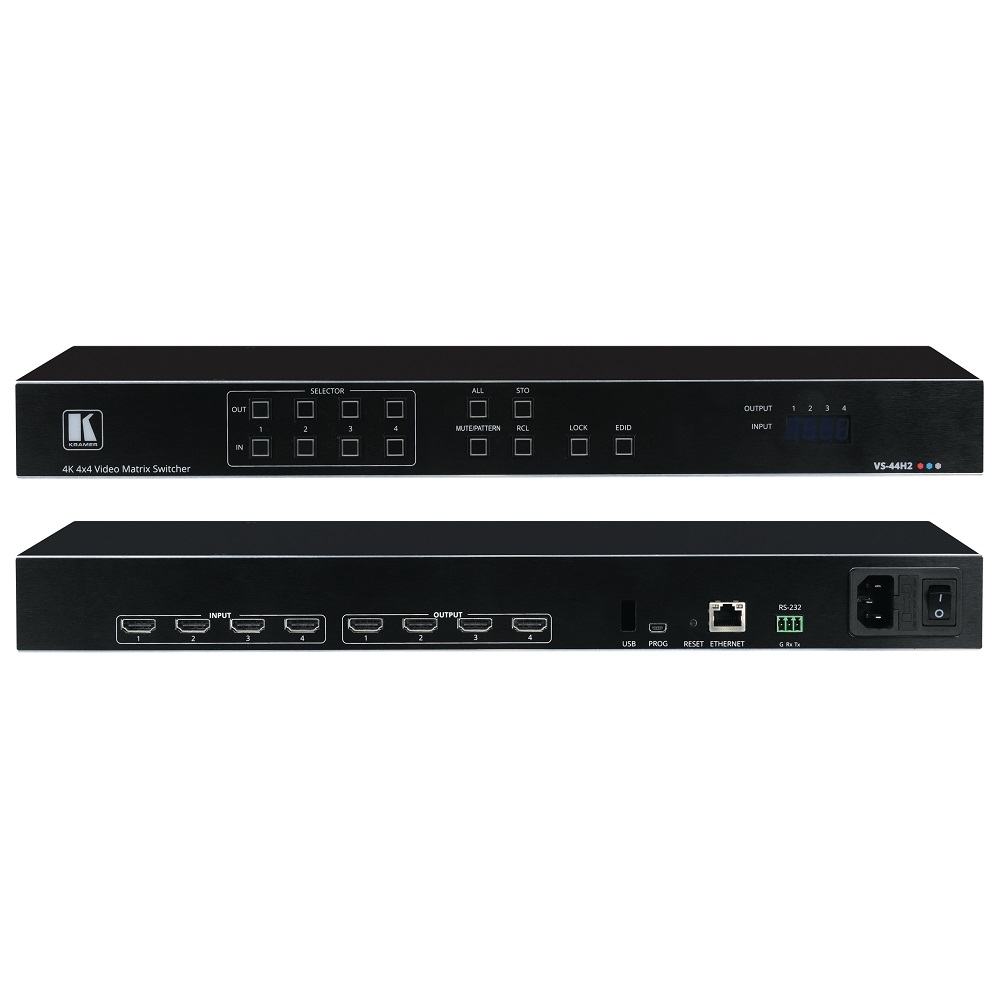

Ma trận chuyển mạch HDMI 4X4 VS-44H2

VS−44H2 is a high−performance 4x4 matrix switcher for 4K@60Hz (4:4:4) HDR signals. It reclocks and equalizes the signals and can route any one of 4 HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously.

• - High–Performance AV Matrix — Switches 4 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)–compliant signals to 4 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)–compliant outputs at up to 18G data rate. Featuring Kramer re–Klocking™ and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables.

• - HDMI Support — Deep Color, 3D, up to 7.1 uncompressed audio channels as specified in HDMI 2.0.

• - EDID Management — Individual EDID management per input. Captures and stores the EDID from a display device.

• - Flexible Content Protection — Selectable HDCP per input.

• - Quick Access to Common Configurations — Save up to 8 preset configurations.

• - Simple and Powerful Maestro Room Automation — Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.

• - Smart Switching — Active source & acceptor detection. Automatic input selection based on priority selection or last connected input.

• - Embedded Pattern Generator — With selectable patterns.

• - Convenient Unit Control and Configuration Options — Local control via front panel switching, memory, lock and EDID buttons, and Input/Output LED display. Distance control via user–friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS–232 serial commands transmitted by a PC, touch screen system or other serial controller.

• - Cost–Effective Maintenance — Input selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet.

• - Easy Installation — 19” enclosure for rack mounting in a 1U rack space with included rack ears and universal 100–240V AC power supply.
