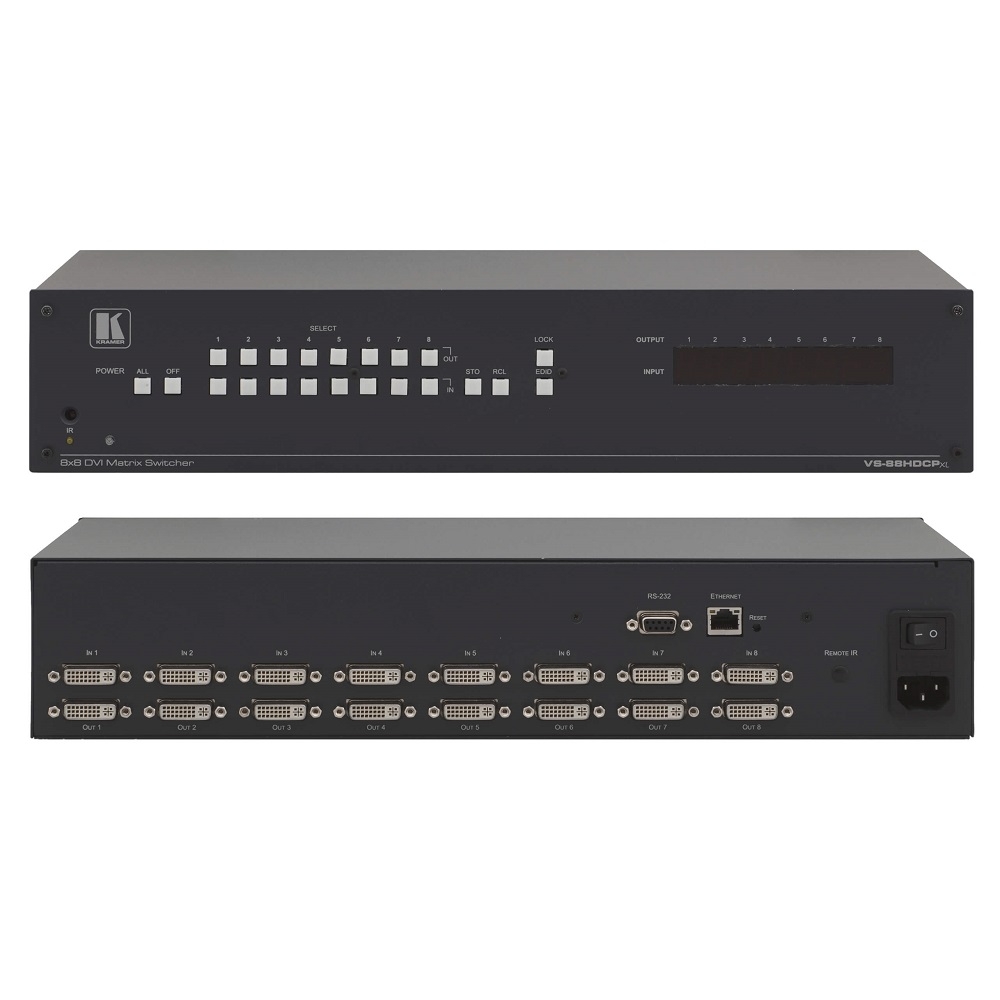

Ma trận chuyển mạch DVI 8x8 VS-88HDCPxl
Mô tả ngắn
8x8 DVI (HDCP) Matrix Switcher
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
HDCP Compliant
3D Pass–Through
I–EDIDPro™
Control — RS–232, Ethernet & IR
Hotline: 0918 642 886
The VS−88HDCPxl is a high−performance matrix switcher for DVI and HDMI signals on DVI−D connectors. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDCP Compatible.
- HDTV Compatible.
- HDMI Support — Deep Color, x.v.Color™, 3D Pass–Through, HDMI Compressed Audio Channels.
- EDID Capture — Copies and stores the EDID from a display device.
- Output Disconnect — Each output.
- Front Panel Control Lockout.
- Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
- Flexible Control Options — Front panel, IR remote, RS–232 (K–Router™ Windows®–based software is included), Ethernet (Windows®–based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
- Worldwide Power Supply — 100–240V AC.
INPUTS
-
8 DVI–D connectors
OUTPUTS
-
8 DVI–D connectors
BANDWIDTH
-
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
-
Supports DVI and HDCP
RESOLUTION
-
Up to UXGA
-
1080p
POWER CONSUMPTION
-
100–240V AC, 50/60Hz, 40VA
CONTROLS
-
Front panel buttons, infrared remote control transmitter, RS–232, Ethernet
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
-
Power cord, rack ears, IR remote control (upon request)
PRODUCT DIMENSIONS
-
19" x 9.29 x 2U (43.6cm x 23.60cm x 8.80cm) W, D, H
PRODUCT WEIGHT
-
2.9kg (6.3lbs) approx.
