Bộ chuyển mạch HDMI VS-41H
Mô tả ngắn
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
HDCP Compliant
Equalization
Control — RS–232, Ethernet & IR
Hotline: 0918 642 886

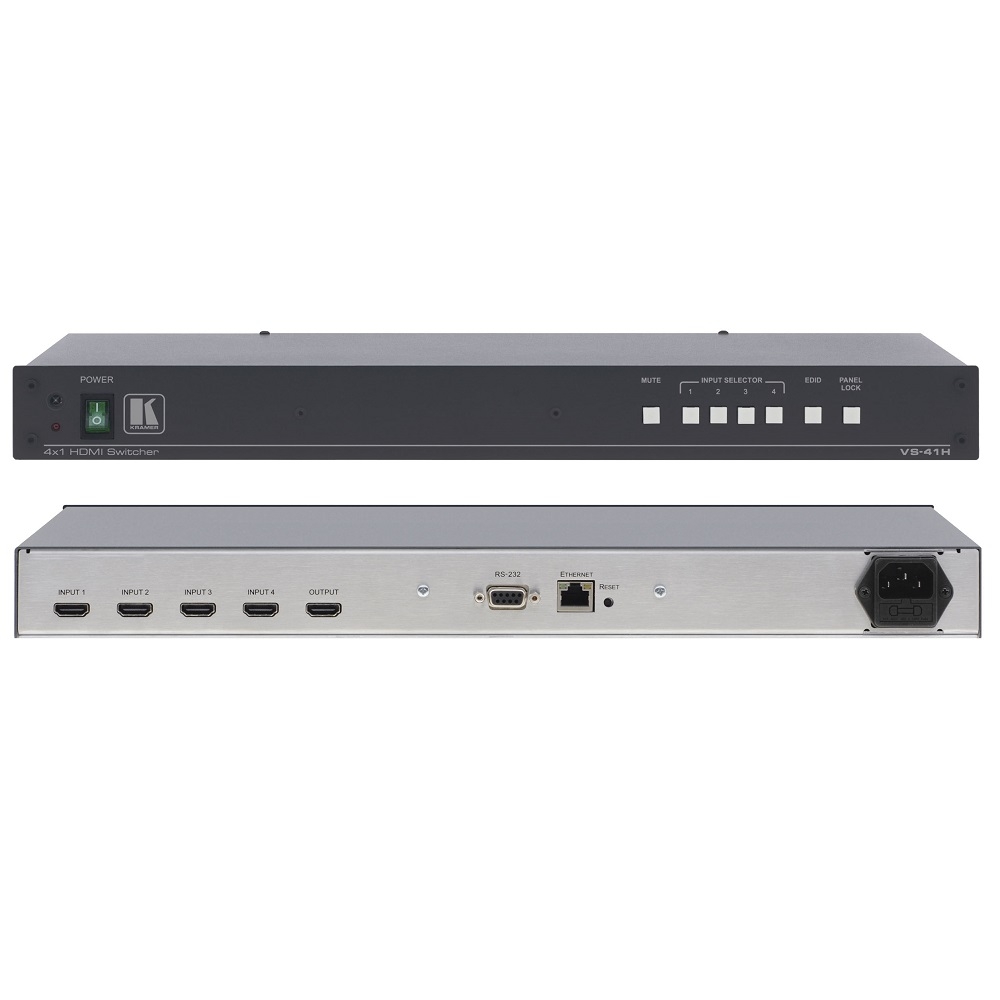

The VS−41H is a high−performance switcher for HDMI signals. It equalizes the signal and switches one of the four inputs to a single HDMI output.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDCP Compliant.
- HDTV Compatible.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, up to 7.1 Uncompressed Audio Channels.
- 3D Pass–Through.
- EDID Capture — Copies and stores the EDID from a display device.
- Dual Mode — PC and DVD Modes selectable by input.
- Flexible Control Options — Front panel, RS–232 (K–Router™ Windows®–based software is included), Ethernet & IR remote (included).
- Video Disconnect.
- Front Panel Lockout.
- Worldwide Power Supply. — 100–240V AC.
- Standard 19” Rack Mount Size. — 1U. Rack "ears" included.
INPUT
4 HDMI connectors
OUTPUT
1 HDMI connector
BANDWIDTH
Supports up to 2.25Gbps bandwidth per graphic channel
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP
RESOLUTION
Up to UXGA
1080p, deep color
POWER CONSUMPTION
100–240V AC, 50/60Hz, 10VA
CONTROLS
Front panel buttons, infrared remote control transmitter, RS–232, Ethernet
INCLUDED ACCESSORIES
Power cord
OPTIONS
Kramer HDMI cables
PRODUCT DIMENSION
19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
PRODUCT WEIGHT
1.6kg (3.5lbs) approx.
