Bộ chuyển mạch HDMI VS-81H
Mô tả ngắn

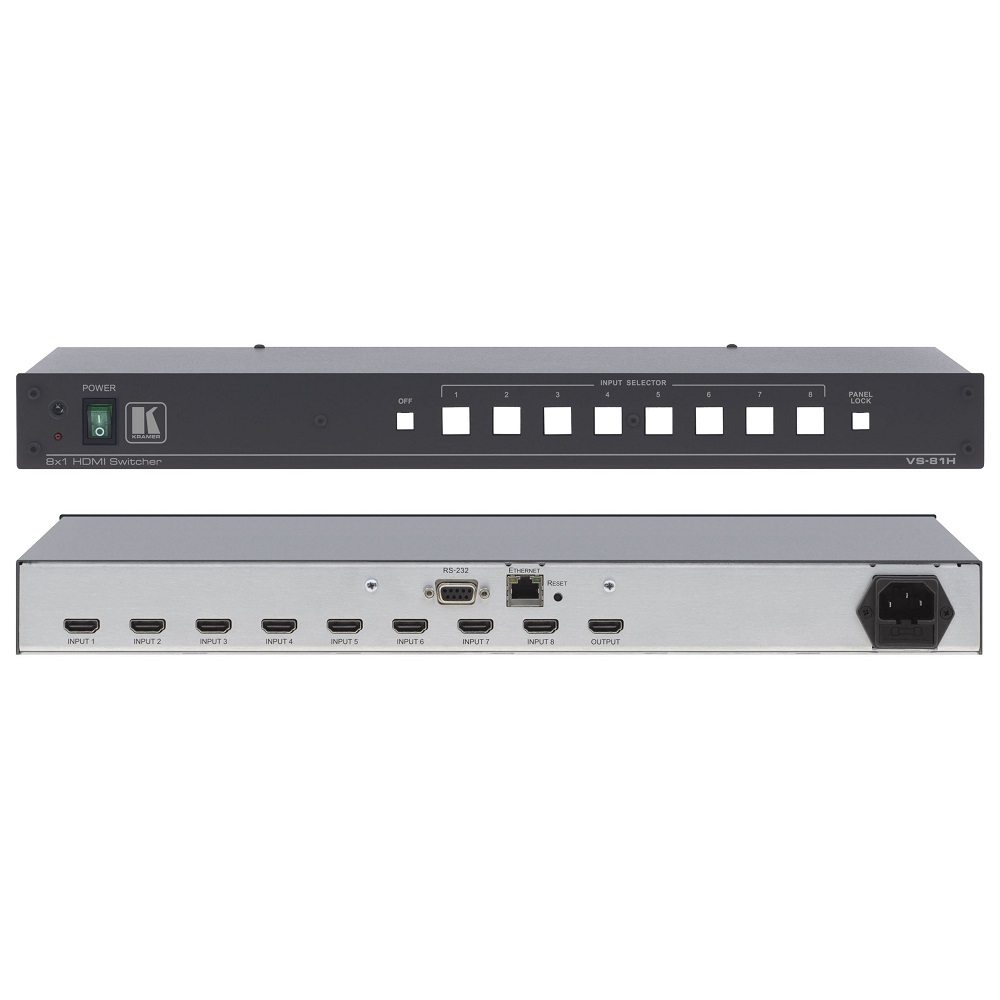

Kramer VS-81H 8x1 HDMI Switcher
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel)
HDCP Compliant
Equalization
Control — RS–232, Ethernet & IR
Hotline: 0918 642 886
The Kramer VS−81H is a high−performance switcher for HDMI signals. It equalizes the signal and switches one of the 8 inputs to a single HDMI output.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDCP Compliant.
- HDTV Compatible.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
- 3D Pass–Through.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Dual Mode — PC and DVD Modes selectable by input.
- Flexible Control Options — Front panel, RS–232 (K–Router™ Windows®–based software is included), Ethernet & IR remote (available upon request) .
- Video Disconnect.
- Front Panel Lockout.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack "ears" included.
INPUT
-
8 HDMI Connectors
OUTPUT
-
1 HDMI Connector
MAX. DATA RATE
-
6.75Gbps (2.25Gbps bandwidth per graphic channel)
COMPLIANCE WITH HDMI STANDARD
-
Supports HDMI and HDCP
RESOLUTION
-
Up to UXGA
-
1080p, deep color
POWER CONSUMPTION
-
100–240V AC, 50/60Hz, 12VA
CONTROLS
-
Front panel buttons, infrared remote control port, RS–232, Ethernet
INCLUDED ACCESSORIES
-
Power cord, IR remote control (upon request)
PRODUCT DIMENSIONS
-
19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
PRODUCT WEIGHT
-
1.7kg (3.7lbs) approx.
