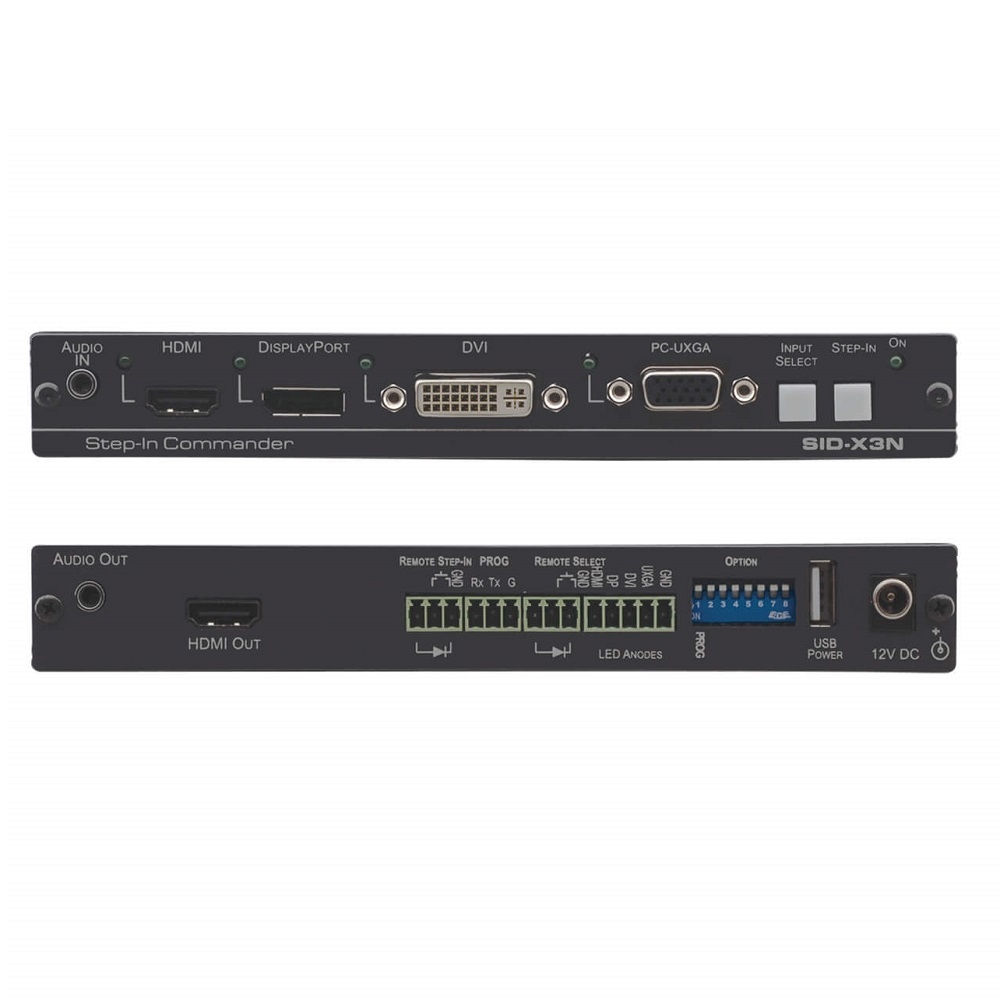

Bộ chuyển mạch DisplayPort, HDMI, VGA & DVI SID-X3N
Mô tả ngắn
Kramer SID-X3N DisplayPort, HDMI, VGA & DVI Auto Switcher
Max Resolution — 1080p @60Hz @36bpp
Control — Local Step–in Input Select (Button or Contact Closure)
Hotline: 0918 642 886
The Kramer SID−X3N is an HDMI transmitter, step−in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step−In” button that allows the local source to be routed as the active source when connected to the VS−62H.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant. — Works with sources that support HDCP repeater mode.
- HDMI Support — Deep Color, x.v.Color™ and 3D.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Data Equalization and Reclocking.
- Input Signal Detection — Based on video clock presence.
- Automatic Input Selection — Based on manual selection or last connected input.
- Automatic Analog Audio Detection and Embedding.
- Local Balanced Audio De–Embedding.
- Support for Digital Audio Formats.
- Lockable EDID.
- Local Step–In Switching — Button & contact closure.
- Supports Programmable Step–In Functionality — Over HEC enabled HDMI cables, when used with compatible switchers such as the VS–62H.
- Power Supply — Requires independent power supply.
INPUTS
-
1 HDMI on an HDMI connector, 1 DP on a DisplayPort connector, 1 DVI–D on a DVI–I connector
-
1 VGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack
OUTPUTS
-
1 HDMI on an HDMI connector, 1 unbalanced stereo audio in a 3.5mm mini jack
PORTS
-
1 RS–232 3–pin terminal block for programming, 1 USB power max. 1.5A
CONTROLS
-
Front panel buttons, remote step–in switch, remote input selection switches
ANALOG AUDIO INPUT
-
Maximum level — 3Vpp
REMOTE LED IMPEDANCE
-
5V, 300Ω approx
STANDARDS
-
HDMI with x.v.Color™ and 3D
-
HDCP: works with sources that support HDCP repeater mode
MAXIMUM DATA RATE
-
6.75Gbps (2.25Gbps per graphic channel)
POWER CONSUMPTION
-
12V DC, 1.1A
COMPLIANCE STANDARDS
-
CE, UL
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
COOLING
-
Convection, vents
ENCLOSURE TYPE
-
Aluminum
INCLUDED ACCESSORIES
-
Power adapter
PRODUCT DIMENSIONS
-
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT
-
0.5kg (1.0lbs) approx.
