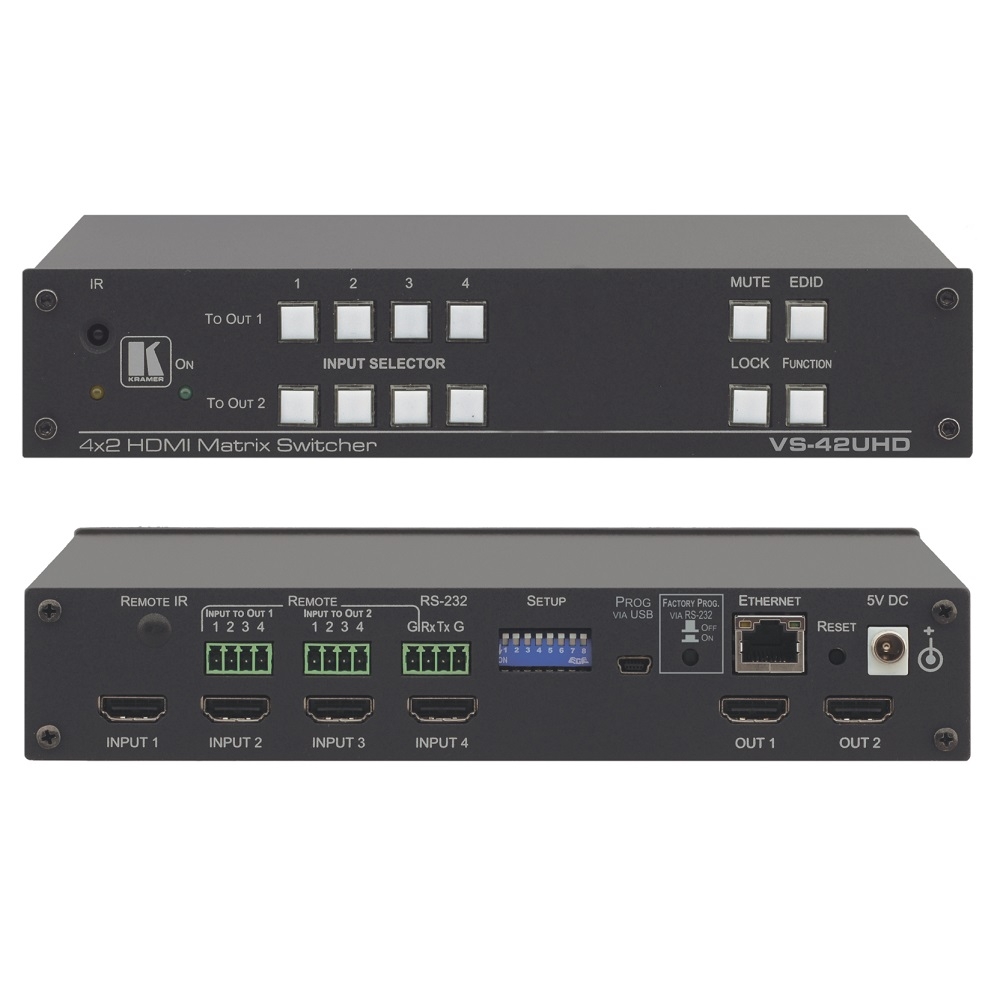

Ma trận chuyển mạch HDMI 4X2 VS-42UHD
Mô tả ngắn
Resolutions up to UXGA and 4K x 2K
HDCP compliant
Automatic switching (last connected/priority)
Video clock detection
Hotline: 0918 642 886
VS−42UHD is a high−quality, 4x2 matrix switcher for 4K@60Hz (4:2:0) HDMI signals. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously.
-Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
- Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
- HDCP Compliant
- True Video Clock Detection.
- Automatic Switching Modes — Last connected and priority switching.
- HDMI Support — 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Programmable Step–in Functionality — When used with compatible step–in devices, such as the SID–X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
- Non–Volatile EDID Storage.
- Kramer reKlocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
- Static or Dynamic DHCP IP Addressing.
- Embedded Web Pages — Provide remote configuration and operation.
- Lock Button — Prevents tampering with the front panel buttons.
- Kramer Protocol 3000.
- Versatile Control Options — RS–232, Ethernet, infrared remote control, optional remote IR receiver.
INPUTS
4 HDMI connectors
OUTPUTS
2 HDMI connectors
PORTS
1 Ethernet on an RJ–45 connector
1 IR on a 3.5mm mini jack
8 remote selection contact–closure switches on 9 terminal block pins
1 serial port on a 3–pin terminal block
1 program port on a mini USB
BANDWIDTH
Up to 8.91Gbps data rate (2.97Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
HDMI and HDCP
RESOLUTION
Up to UXGA
4K x 2K
SUPPORTED BAUD RATES
9600, 115200bps
SUPPORTED WEB BROWSERS
The following operating systems and Web browsers are supported:
Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9
Windows XP: Google Chrome v25, FireFox v15
Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6
POWER CONSUMPTION
5V DC, 880mA
100–240V AC, 65VA max
CONTROLS
Front panel buttons, infrared remote control transmitter, RS–232, Ethernet, remote input selection switches
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F)
HUMIDITY
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
Power supply, RC–IR3 remote control
PRODUCT DIMENSION
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
0.9kg (2.1lbs) approx.
