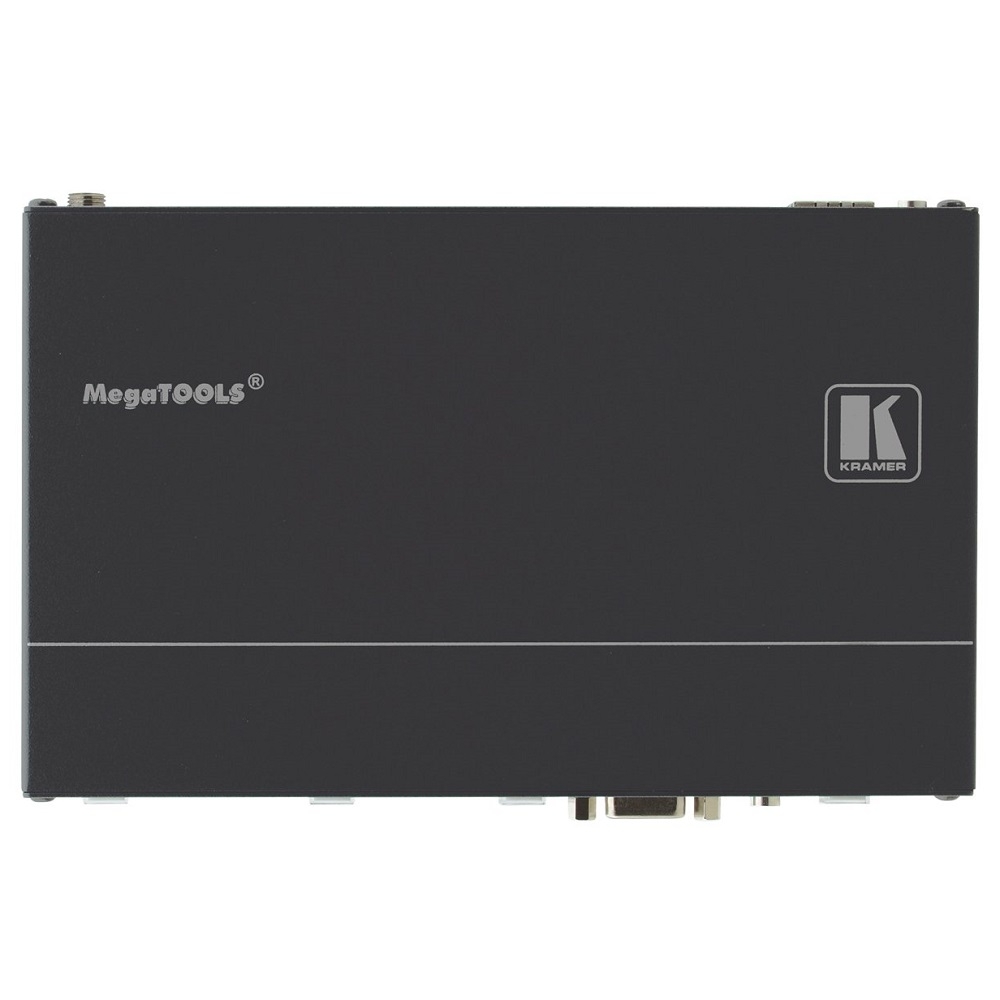

Bộ chuyển mạch HDMI-VGA DIP-31
Mô tả ngắn
Resolution support up to 4K@60Hz (4:2:0)
Max. data rate — 10.2Gbps (3.4Gbps per graphic channel)
Automatic live input detection
Automatic analog audio detection & embedding
I–EDIDPro™ Kramer Intelligent EDID Processing™
Data equalization and reclocking
Local balanced audio de-embedding
Support for digital audio formats
Local Step–In switching
Hotline: 0918 642 886
The DIP−31 is a 4K@60Hz (4:2:0) automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. It supports various modes of input selection and transmits the signal via HDMI cable to a compatible receiver (for example the VS−62H or a display/projector). The device is a Step−in commander when connected to a matrix switcher that supports Step−in over HDMI such as the VS−62H. It also features RS−232 commands to support monitor/projector on/off.
- Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant — With sources that support HDCP repeater mode.
- HDMI Support — Deep Color, x.v.Color™ and 3D.
- Automatic Live Input Detection — Based on video clock presence.
- Automatic Input Selection — Based on priority selection or last connected input.
- Manual Input Selection.
- Step–in Support.
- Automatic Analog Audio Detection & Embedding.
- Convenient Control — Via Kramer Protocol 3000 and embedded Web pages over a LAN.
- RS–232 Command Support.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.

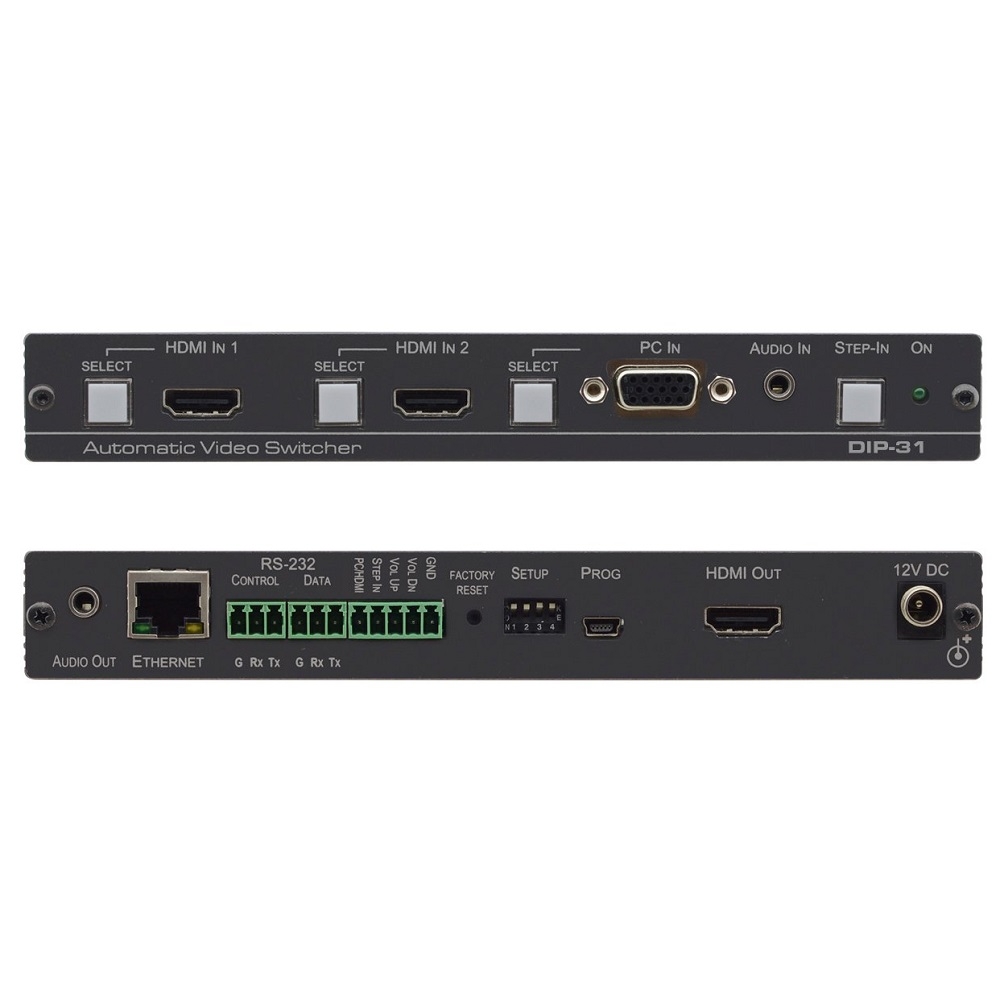

INPUTS
-
2 HDMI on HDMI connectors, 1 VGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack
OUTPUTS
-
1 HDMI connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack
PORTS
-
1 Ethernet on an RJ–45 connector, 1 RS–232 3–pin terminal block control port, 1 RS–232 3–pin terminal block data port (internal use), 1 USB on mini USB connector
CONTROLS
-
Remote switches for input switching, step–in, volume control, and device reset switch
STANDARDS
-
HDMI with Deep Color, x.v.Color™ and 3D, HDCP—works with sources that support HDCP repeater mode
MAXIMUM ANALOG AUDIO LEVELS
-
3.1Vpp
SNR
-
–70dBu
THD
-
0.013%
SUPPORTED WEB BROWSERS
-
Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35
-
MAC:Chrome version 35, Firefox version 27, Safari version 7; Android OS: Chrome version 35; iOS:Chrome version 35, Safari version 7
POWER CONSUMPTION
-
12V DC, 600mA
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
COOLING
-
Convection
ENCLOSURE TYPE
-
Aluminium
ENVIRONMENTAL REGULATORY COMPLIANCE
-
Complies with appropriate requirements of RoHs and WEEE
OPTIONS
-
Rack adapter RK–T2B
PRODUCT DIMENSION
-
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT
-
0.4kg (0.9lbs) approx
