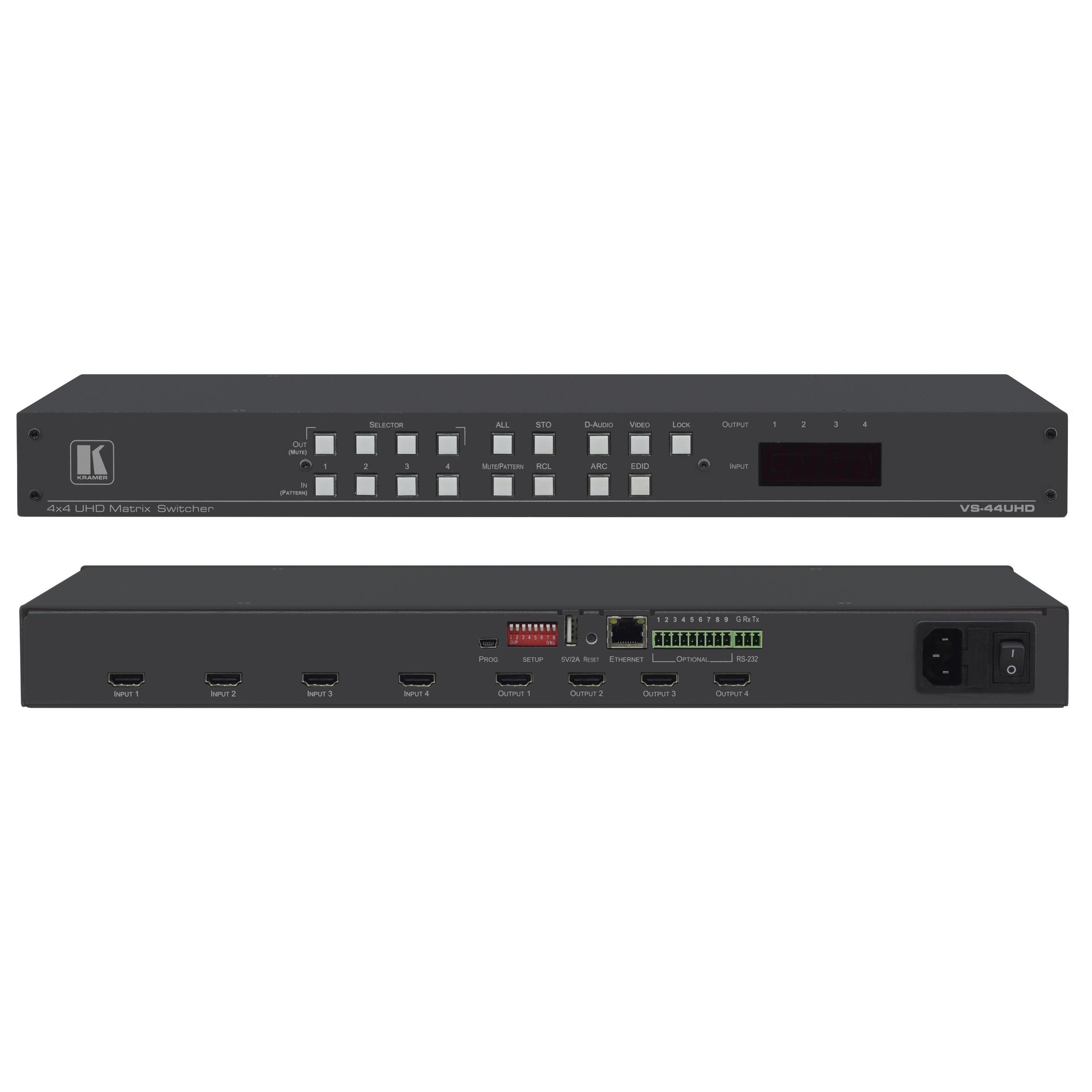

Ma trận chuyển mạch HDMI 4x4 VS-44UHD
Mô tả ngắn
Resolutions up to 4K60 (4:2:0)
Highly flexible independent audio matrix
Step–In over HDMI
Active source detection for priority, last–connected automatic and manual switching
* Supply is limited. This item will be discontinued when global inventory is depleted
Hotline: 0918 642 886
VS−44UHD is a high−quality 4x4 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously. VS−44UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support on all ports to produce an equivalent 8x8 audio matrix.
- Max. Data Rate: — 8.91Gbps data rate (2.97Gbps per graphics channel).
- Max. Resolution: — 4K@60Hz (4:2:0).
- Independent 8x8 Audio Matrix — With 4 embedded digital inputs + 4 ARC inputs and 4 digital outputs + 4 ARC outputs.
- Kramer Step–in Over HDMI Technology.
- HDMI, HDCP and DVI Compliance.
- Selectable HDCP Off per Input.
- Memory Locations: — Eight presets for quick access to common configurations.
- Advanced EDID Management per Input.
- Active Source & Acceptor Detection.
- Automatic Input Selection: — Based on priority selection or last connected input.
- HDMI Support: — Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.
- Kramer reKlocking™ and Equalization Technology: — Rebuilds the digital signal to travel longer distances.
- Embedded Pattern Generator: — With selectable patterns.
- Lock Button — To prevent tampering.
- Kramer Protocol 3000 Support.
- Firmware Upgrade: — Via mini USB, Ethernet or RS–232 port.
- Control Options: — RS–232 serial commands transmitted by a PC, touch screen system or other serial controllers, Ethernet port via LAN, embedded web pages via LAN for configuration and control.
INPUTS
- 4 HDMI: On female HDMI connectors
OUTPUTS
- 4 HDMI: On female HDMI connectors
PORTS
- 1 Programming: On a Mini–USB connector
- 1 RS–232: On a 3–pin terminal block connector
- 1 Ethernet: On an RJ–45 connector
- 1 USB: On a USB–type A connector for powering an external device
VIDEO
- Max. Resolutions: 4K@60Hz (4:2:0) and 4K@30Hz (4:4:4)
- Standards Compliance: HDMI 1.4 and HDCP 1.4
USER INTERFACE
- Indicators: OUTPUT/INPUT LED Display
- Control: Front panel buttons, RS–232, Ethernet remote connection
POWER
- Source: 100–240V/50–60Hz
- Consumption: 500mA
ENVIRONMENTAL CONDITIONS
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: –40° to +70°C (–40° to 158°F)
- Humidity: 10% to 90%, RH (non–condensing)
ACCESSORIES
- Included: Rack ears, power cord
