Bộ chuyển mạch HDMI VS-211H2
Mô tả ngắn
Max. Data Rate — 17.82Gbps
4K@60Hz (4:4:4) resolution support
HDR support, HDMI 2.0 & HDCP 2.2 compliant
Hotline: 0918 642 886

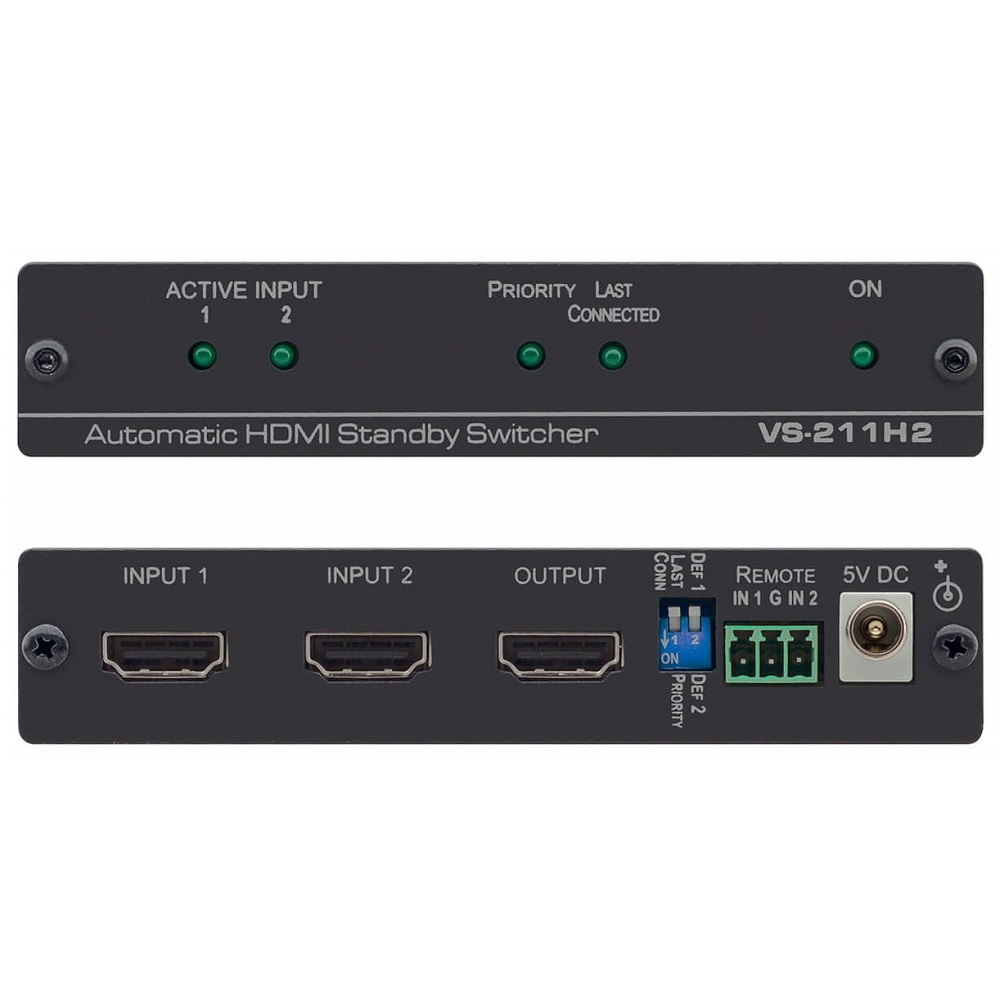

VS−211H2 is a high−performance automatic switcher for 4K HDR, HDCP 2.2, HDMI 2.0 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.
-
- Max. Data Rate — 17.82Gbps (5.94Gbps per data channel).
-
- Max. Resolution — 4K@60Hz (4:4:4).
-
- Kramer Equalization and re–Klocking Technology.
-
- HDR Support.
-
- HDTV Compatible.
-
- HDMI 2.0 & HDCP 2.2 Compliant.
-
- 3D Pass–Though.
INPUTS
-
- 2 HDMI connectors
OUTPUTS
-
- 1 HDMI connector
MAX. DATA RATE
-
- 17.82GBPS (5.94Gbps per graphic channel)
MAX. RESOLUTION
-
- 4K@60Hz (4:4:4)
STANDARDS COMPLIANCE
-
- HDR10, HDCP 2.2 (does not support conversion to HDCP 1.4), HDMI 2.0
CONTROLS
-
- Status/priority DIP–switches, contact closure remote control
REGULATORY CERTIFICATION
-
- EMC EN 55032
-
- IEC 60950–1(ed.2)
-
- IEC 60950–1(ed.2)am1
-
- IEC 60950–1(ed.2)am2
OPERATING TEMPERATURE
-
- 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
- –40° to +70°C (–40° to 158°F)
HUMIDITY
-
- 10% to 90%, RHL non–condensing
POWER CONSUMPTION
-
- 5V DC, 400mA
INCLUDED ACCESSORIES
-
- Power supply 5.2V DC/4A desktop
PRODUCT DIMENSION
-
- 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
- 0.2kg (0.4lbs) approx.
